Product Attributes

- Brand Name WSEE
- Model Number WS-16LT50xx
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color White
- Related Keywords 1550 optical transmitter, cable tv transmitter, optical transmitter

Description by Manufacturer

Product Description

Cable tv transmitter 25km 10dbm 1550nm optical transmitter

WS-16LTxxxx CATV optical transmitter made improved better in Power consumption, output accuracy and high reliability than that of WS-15LTxxx style which is mainly used in optical fiber Transmission of Television Image Signal, Digital Signal, Television ,Telephone, Voice Signal Data (or Compressed Data) Signal.
With All property technology data meeting international demands and pay attention to product cost CATV optical transmitter is first choice of building big and medium size optical transmission network of 1550nm CATV equipment.

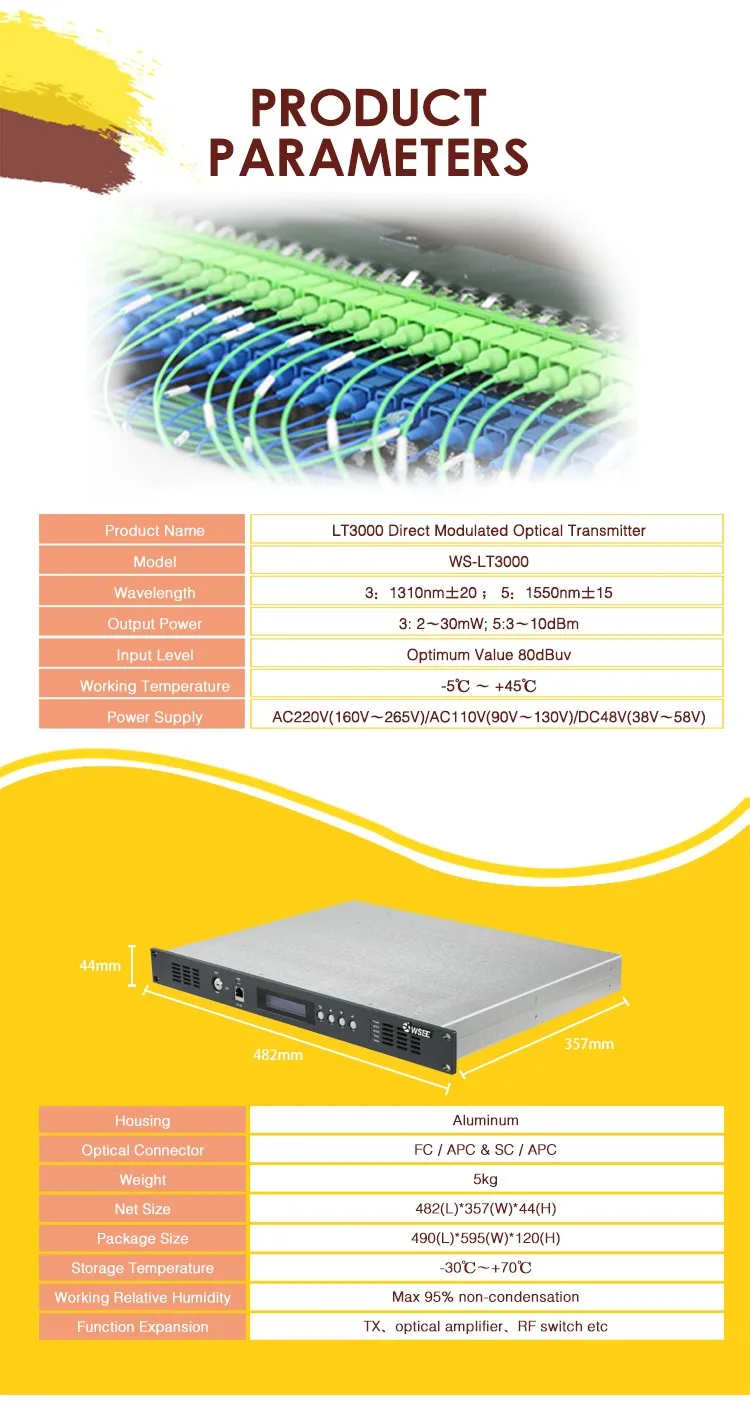

Technical Data	RF Input Level	RF Input Return Loss	Working Temp.
WS-16LT50XX	75~95dBuV	≥16dB	-5℃~+55℃
Wave Length	RF AGC Control Range	CNR	Relative Humidity
1550nm±15nm	±10dB	≥51dB	Max 95%,no condense
Optical Output power	Bandwidth	CTB	Net Size
3-10dBm	47~862 & 1080MHz	≥65dB	423X330X45mm
Laser Type	Flatness	CSO	Unit Packing Size
DFB Laser	±0.75dB	≥60 dB	575X488X89mm
Optical Adjusting Mode	MGC Adjustable Range	Working Voltage	N.W.
Direct Optical Regulation	0~15dB	AC220V(160~265V) & DC48V(35~72V)	4kgs
Optical Connector	RF Impedance	Consumption	Carton G.W.
SC/APC & SC/UPC	75Ω	<10W	12kgs(2pcs)

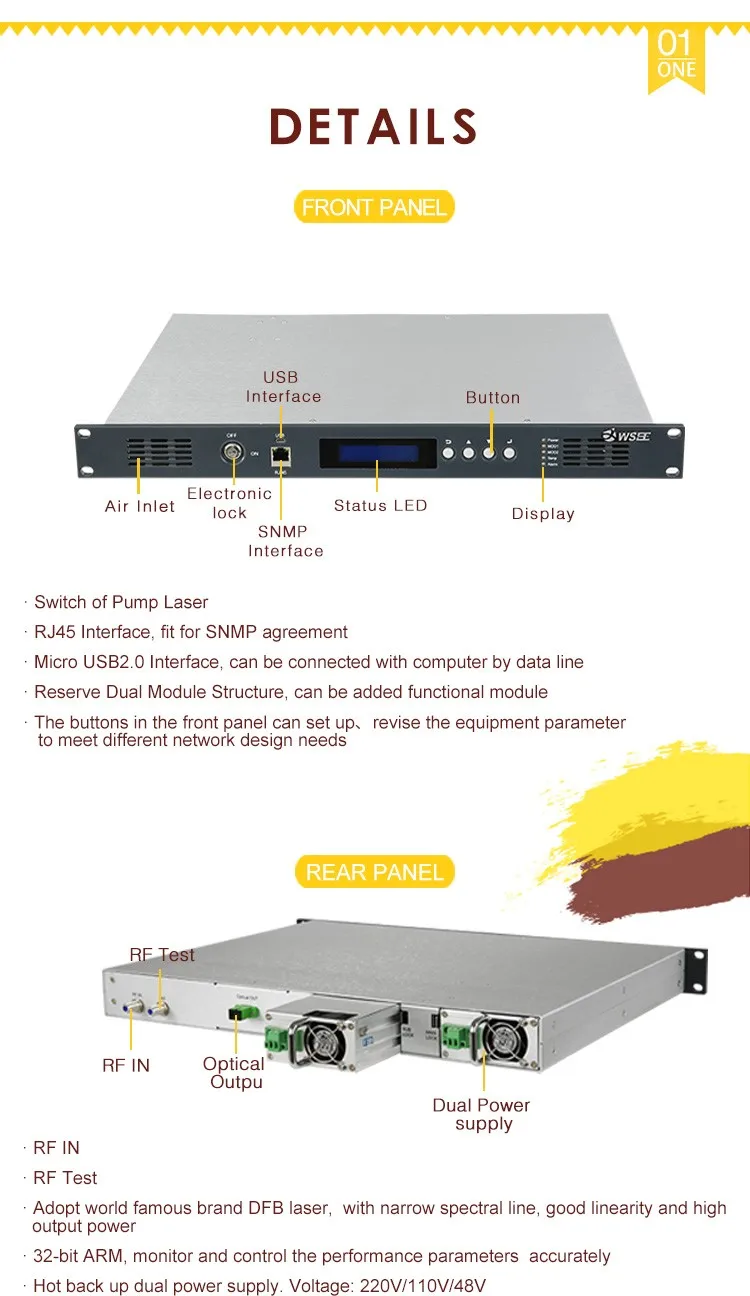

Detailed Images

1.With two kinds of optical port in front panel and optical port in back panel. 19"1U rack, advanced stainless steel shell
2.Working Bandwidth:47~862MHz( customized 1000MHz)
3.International famous DFB laser, with narrow spectral line, good linearity and high power output
4.Build in perfect and automatic monitoring circuit of microcomputer can realize real-time accurate monitoring status of optical output power
5.Advanced multi-frequency pre-distortion technology, RF GaAs component and complete SMT structure can improve the important data of CTB and CSO, perfect the C/N data at the same time, lower heating power and power consumption
6.Working status indicator in front panel, RF testing port in back panel
7.Reliable heat dissipation design
8.Stable temperature circuit (ATC) and optical output power circuit (APC) can make sure the best working status of laser

Application

Packing & Delivery

2pcs/carton for optical transmitter

Size: 490*595*230mm

Weight: 12kgs(2pcs)

Our Company

Shandong Wanshuo Optoelectronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2008. We are located in Zibo City, Shandong Province, with convenient transportation access. Our company has become one of the biggest enterprises in the field of CATV equipment in China. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC and FTTX network equipment, including EDFA, 1550nm/1310nm optical transmitters, optical receivers, FTTH optical node, CATV amplifiers, hybrid modules, power supplies and passive devices.
We have over 70 employees, an annual sales figure that exceeds USD3,300,000 and are currently exporting 60% of our production worldwide.
After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc.
Shandong Wanshuo Optoelectronic Equipment Co., Ltd always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing I S O 9 0 0 1, CE certifications.

Our Service

This device warranty is 12 months. If the problem is caused by the user's wrong operation or natural force majure, we will only be responsible for the maintenance and charge the appropriate material cost.
When the device has problem, please contact us immediately. On-site maintenance of faulty device should be operated by professional technician to avoid causing more damage to the equipment.
Note: For users who disassemble and repair equipment wihtout our authorization, our company will not offer free warranty. Reasonable maintenance and materials costs will be collected.

Tell: +86-533-3599957
Fax: +86-533-3599955
Web: www.wseelaser.com
Add: No.115,Wanjie Road, Zibo, Shandong, China

Price

Price US$ \ 80 ~ 580 / Piece

Packaging & Shipping

- Packing1
- Packaging Size60 x 51.5 x 13.5 ( Centimeters)
- Minimum Order 1 Piece
- Total quantity in Stock1001 – 1500
- Shipping Career

Product Image

Cable TV Transmitter 25km 10dbm 1550nm Optical Transmitter
