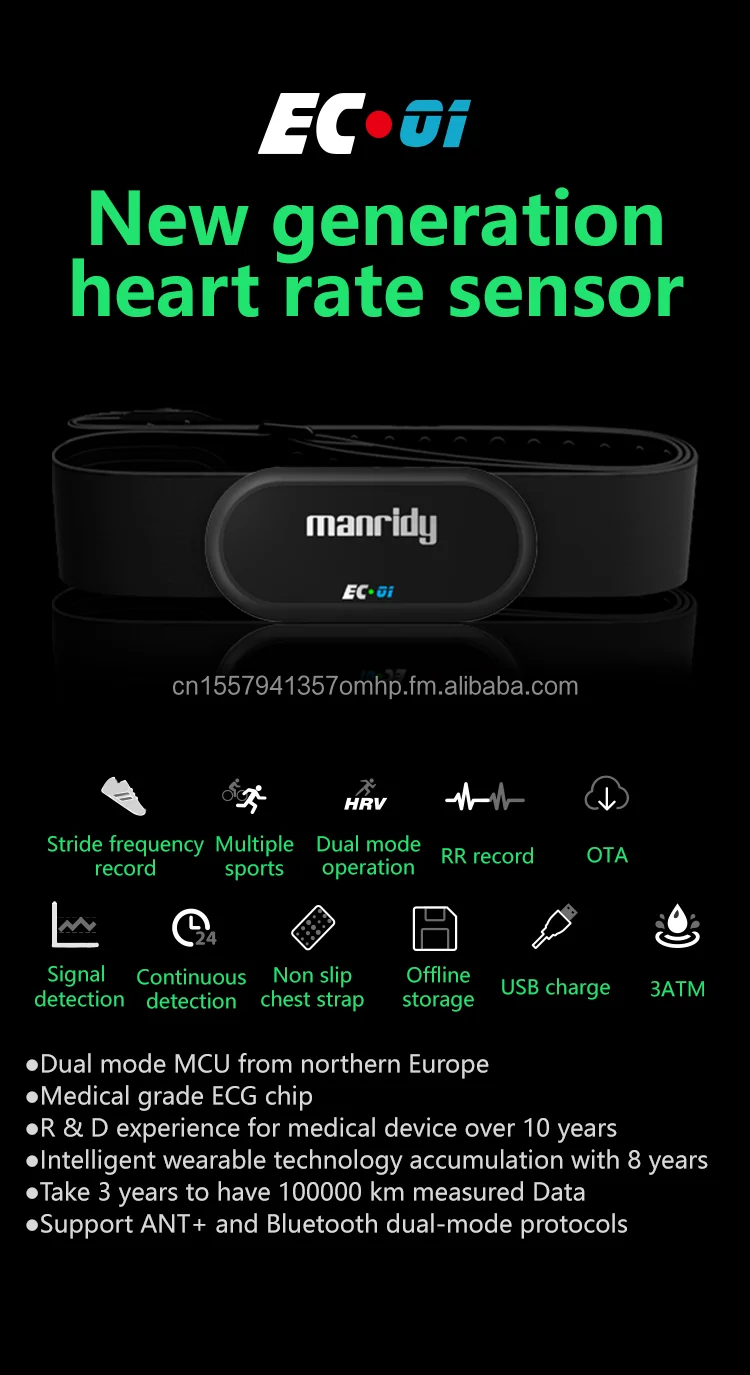

| EC01 Heart rate sensor - specification |
| |

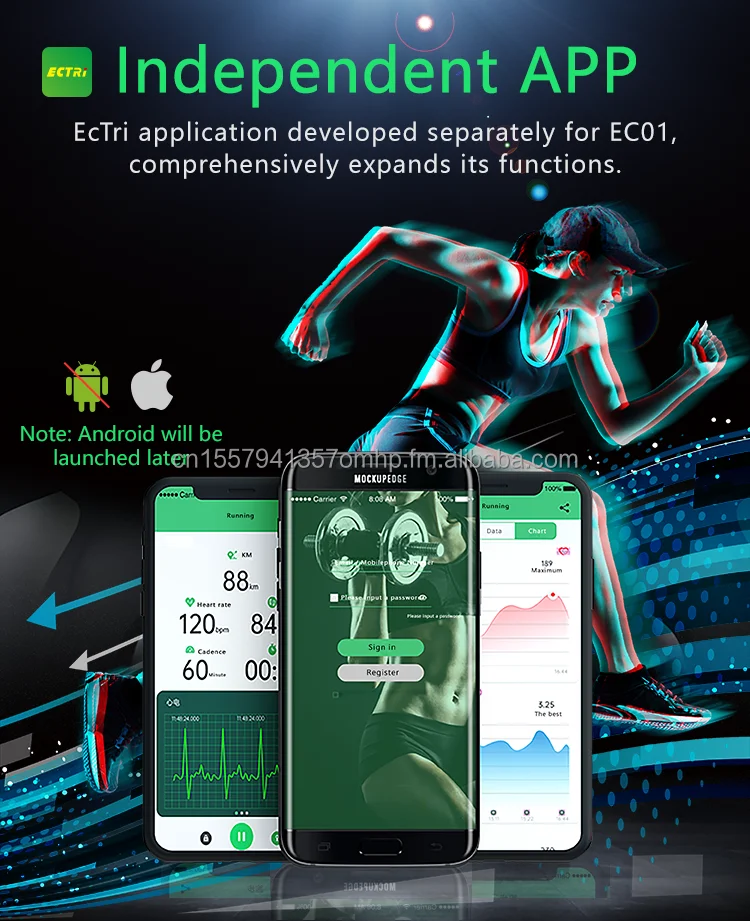

| Model:EC01 | Transport protocol:ANT+,BLE | Independent APP:ECTRI |

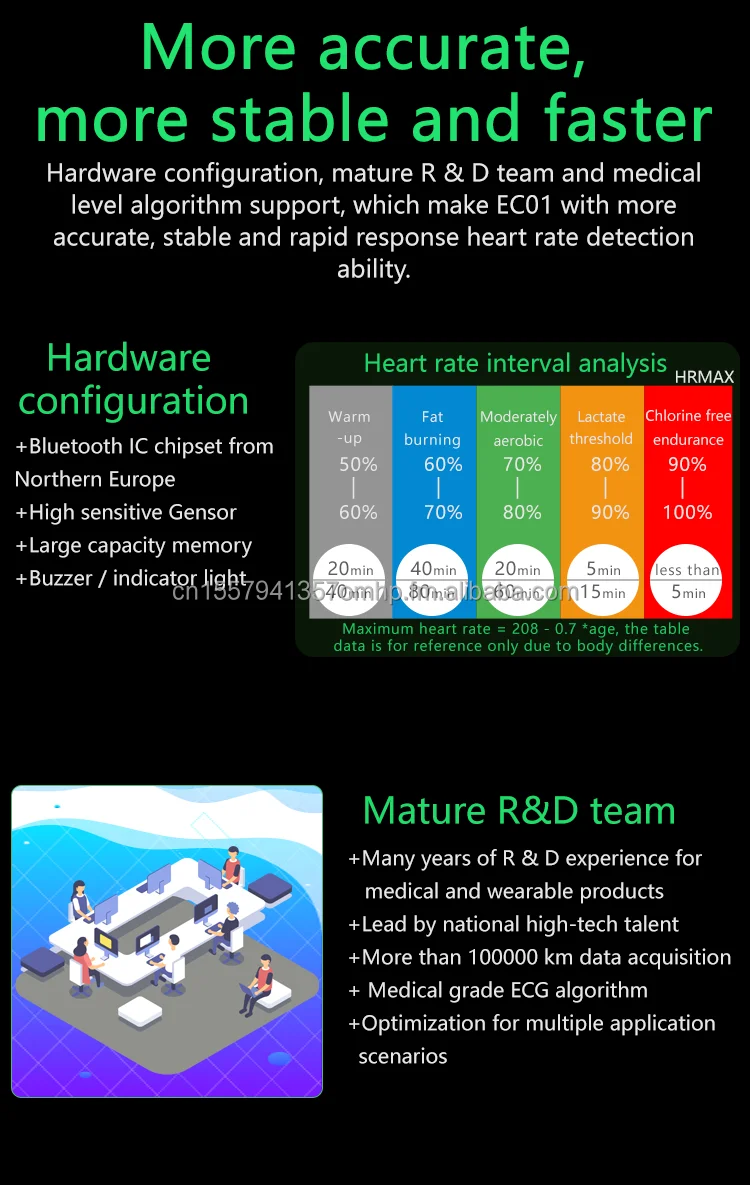

Hardware
configuration | CPU | NRF52832 |
| ECG IC | YES |
| Acceleration sensor | YES |
| Flash | YES |
| Indicator light | OLED Tricolor light (red, green and blue) |

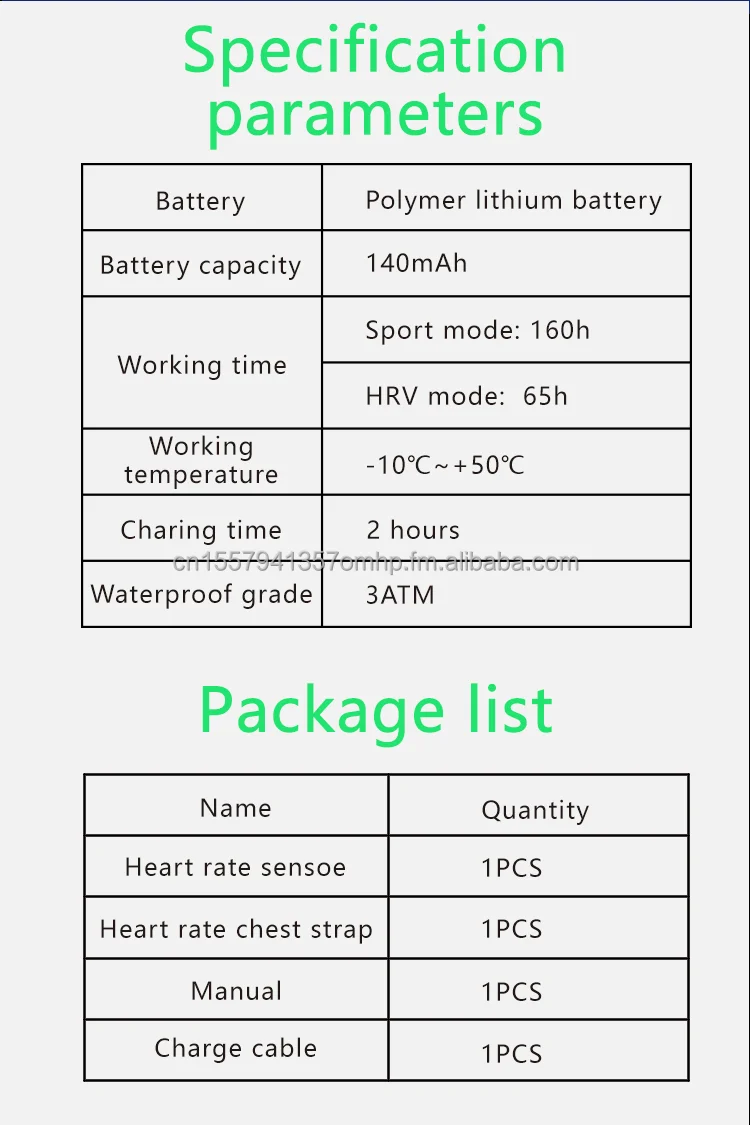

| Battery | 140mHh lithium battery |

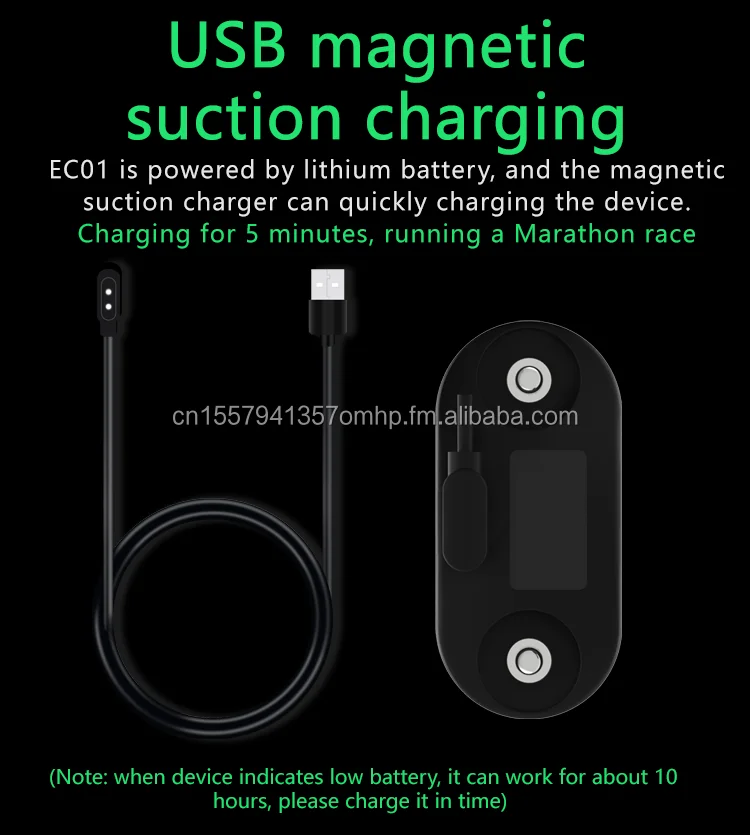

| Charge way | Magnetic suction charging (two points) |
| Buzzer | YES |
| Hardware reset | YES |
| Electrostatic protection(ESD) | Support |
| Waterproof grade | IPX8,10 meters waterproof) |
| Function | Working mode | Standard mode: The default mode mainly provides accurate heart rate data
HRV mode: Higher order mode, which provides more accurate heart rate (decimal) and RRI for HRV research
ECG mode: Provide ECG waveform similar to ECG
The working mode is switched through APP |
| | |
| Measure range | 40~240bpm |
| Heart rate accuracy | 2%/±2 Take the larger value in the range |

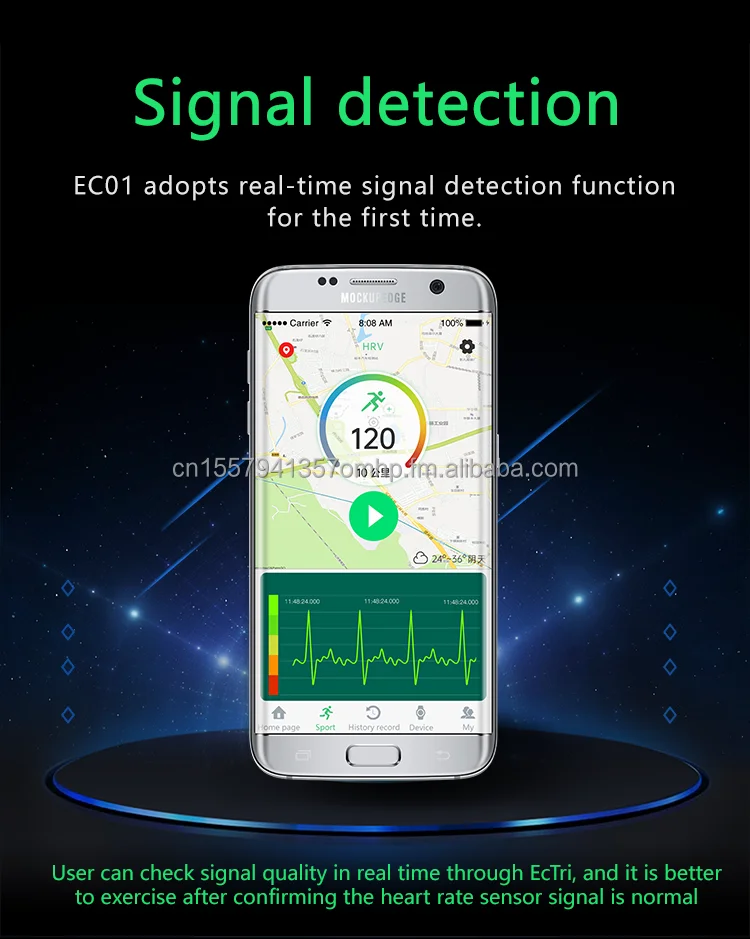

| Signal strength detection | Support, display heart rate band signal and intensity |
| Sport RRI | Support exercise heart rate interval RRI output |
| Sport ECG | Support sport ECG |
| Heart rate | Support ANT+, Bluetooth standard protocol |

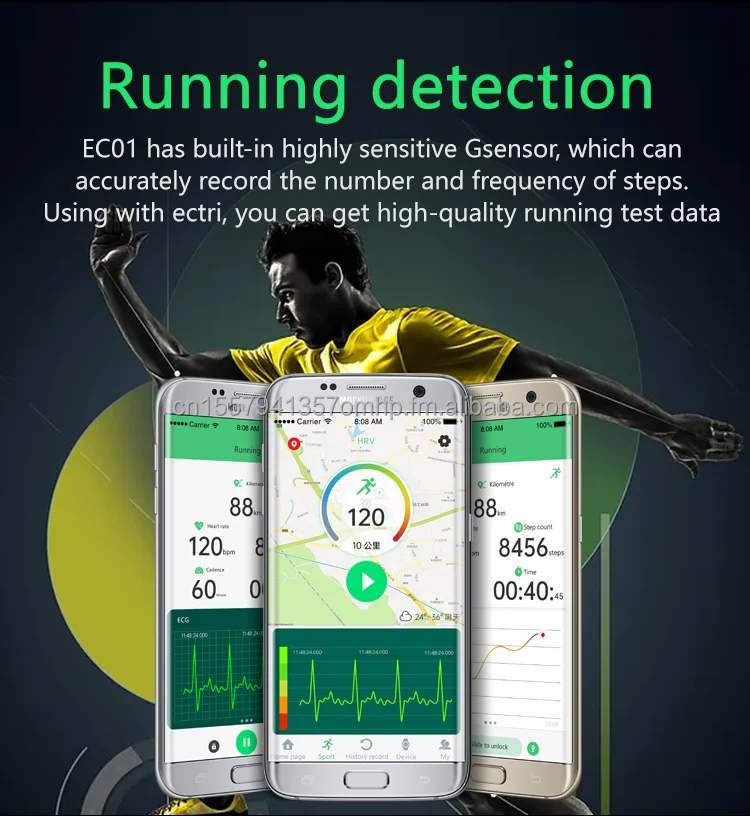

| Step frequency | Support ANT+, Bluetooth standard protocol |
| Continuous detection | Support 24 hours continuous measurement |
| Low battery prompt | Support |
| Multi-sport mode | Support heart rate detection of indoor and outdoor sports (partially available) |
| Treadmill software | Support zwift, Rouvy AR, bitgym and other virtual treadmill software (Another software version supporting treadmill needs to be proposed separately, because it will conflict with some sports watches) |
| Third party software support | Support third-party apps such as Yuepao, Gudong, Maramara, Migu running, Walker cycling, Blackbird cycling, Ezon running, Giante cycling, Polar beat, etc |
| Third party device support | Support professional sports watches: Garmin, Suunto, Polar, Coros, Ezon, and other brand devices that support standard Bluetooth or ANT + protocol |
| OTA upgrade | Support |
| Offline storage | Support |
| Work time | Standard mode:160 hours HRV mode:65 hours |
| Standby | 12 months |
| Agreement | ANT+ | Support (heart rate, step rate, power) |
| Standard Bluetooth | Support (heart rate, step rate, power) |

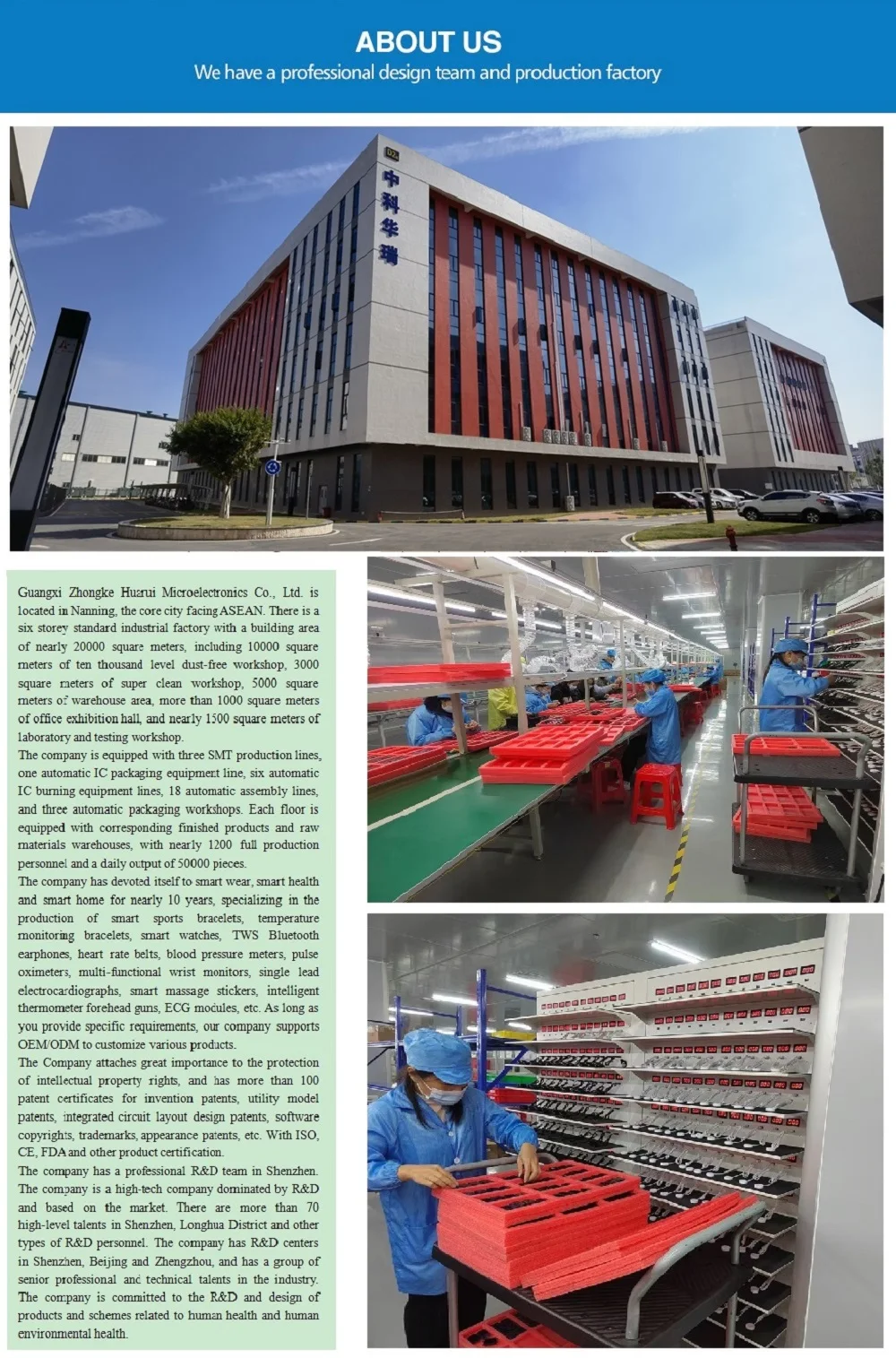

Guangxi Zhongke Huarui Microelectronics Co.,Ltd. is located in Nanning,the core city facing ASEAN. There is a six storey standard industrial factory with a building area of nearly 20000 m2,including 10000 m2 of ten thousand level dust-free workshop,3000 m2 of super clean workshop,5000 m2 of warehouse area,more than 1000 m2 of office exhibition hall,and nearly 1500 m2 of laboratory and testing workshop.
The company is equipped with three SMT production lines,one automatic IC packaging equipment line,six automatic IC burning equipment lines,18 automatic assembly lines,and three automatic packaging workshops. Each floor is equipped with corresponding finished products and raw materials warehouses,with nearly 1200 full production personnel and a daily output of 50000 pieces.
The company has devoted itself to smart wear,smart health and smart home for nearly 10 years,specializing in the production of smart sports bracelets,temperature monitoring bracelets,smart watches,TWS Bluetooth earphones,heart rate belts,blood pressure meters,pulse oximeters,multi-functional wrist monitors,single lead electrocardiographs,smart massage stickers,intelligent thermometer forehead guns,ECG modules,etc. As long as you provide specific requirements,our company supports OEM/ODM to customize various products.

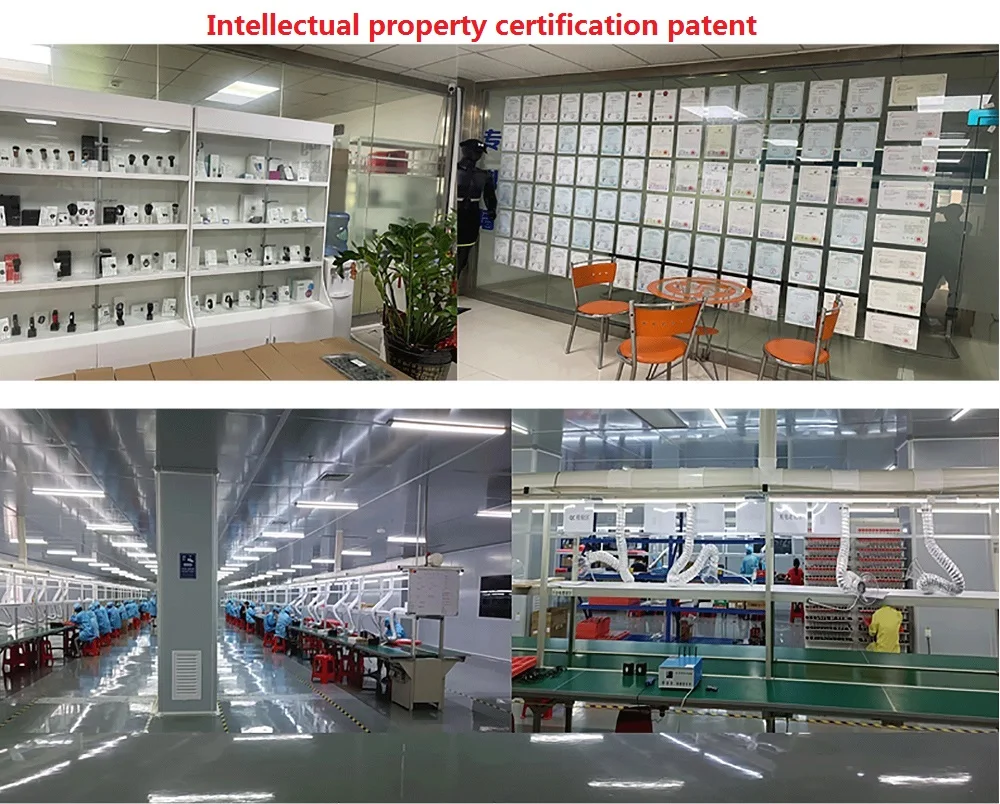

The Company attaches great importance to the protection of intellectual property rights,and has more than 100 patent certificates for invention patents,utility model patents,integrated circuit layout design patents,software copyrights,trademarks,appearance patents,etc. With ISO,CE,FDA and other product certification.
The company has a professional R&D team in Shenzhen. The company is a high-tech company dominated by R&D and based on the market. There are more than 70 high-level talents in Shenzhen,Longhua District and other types of R&D personnel. The company has R&D centers in Shenzhen,Beijing and Zhengzhou,and has a group of senior professional and technical talents in the industry. The company is committed to the R&D and design of products and schemes related to human health and human environmental health.
