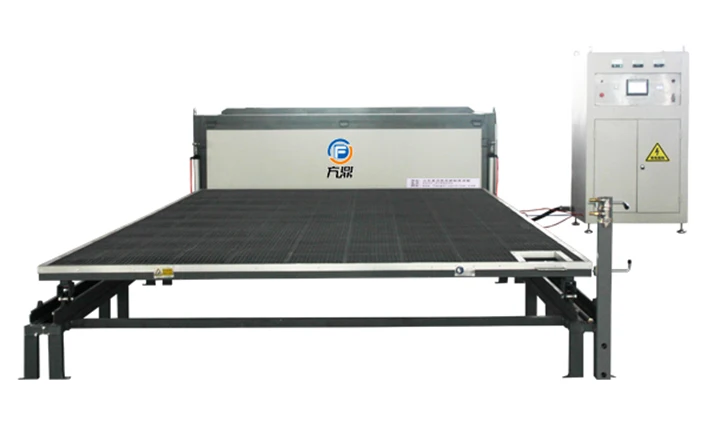

two layers heat strengthened construction glass laminated facility
Product Description
| Item |
specification |
| Type |
FD-J-2-2 |
| Layer |
2 |
| voltage |
220V-440V |
| Processing glass size |
2000*3000mm |
| Working temperature |
90℃-140℃ |
| Rated power |
26kw |
| Operation system |
Siemens PLC |
| N.W. |
2200kgs |
| Production capacity |
36(m2/cycle) |
| Floor space |
3700*9000mm |

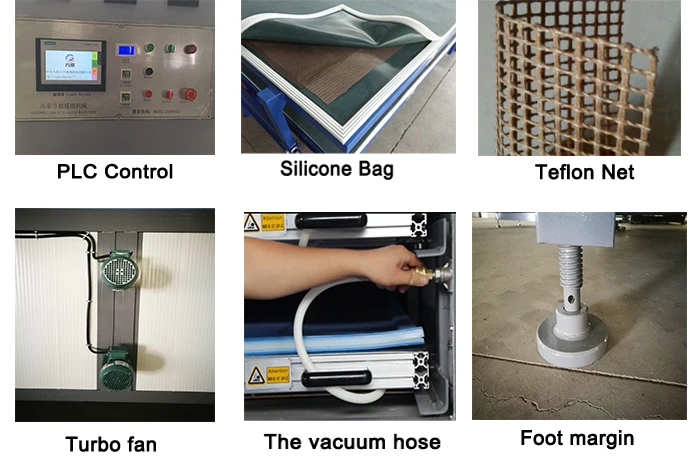

Equipment accessor
Advantage
Certification
We have obtained the CE certification, ISO9001 quality management system certification, and TUV certification of German certification center.
PLC control system
1.Using PLC control system, all programs are completed automatically.
2.The heating time and temperature technology are adjusted automatically according to the thickness of the glass, reducing errors.
3.Lightning protection and voltage regulation device, enable 220V - 440V 3-phase power supply.
Heating system
1.Heating element adopts 304 stainless steel heating element,
2.The heating mode of the ground heating, the upper and lower synchronizing heat dissipation, acting on the surrounding of the glass, ensure that the glass is both heated
3.Pass rate:99%
4.Heating pipe outside the furnace, easy maintenance
Vacuum system
1.Adopt German technology to improve the high temperature vacuum pump, vacuum level up to 0.09-0.098mpa
2.A stable vacuum system can work continuously for 24 hours
3.Vacuum pump pre-storage can play a protective role, to extend the service life.
4.High temperature resistant,resistance to tear silicon belt,3mm thickness,The accumulated thickness of glass reaches 40mm;
Heat preservation
1.Equipment main body framework based on the energy saving design, adopt new bearing steel, high bearing capacity, small floor space
2.Using custom encryption composite board material for panel,The mechanical strength and thermal insulation of the equipment are improved.
Company Information
Fangding covers an area of 30000 square meters, office area of 4000 square meters, factory 26000 square meters. There are mainly four parts in our company, one office building, one welding workshop, one assembly workshop and one finished product workshop. We have 96 workers and support staff. Established in 2003, We have got rich experience on producing laminated glass and machines. With a total solution of glass laminating, we are willing to cooperate with friends from all over the world. Fangding is the largest manufacturer of glass laminating machines in China, selling equipment more than 200 sets each year. Our glass laminating machines are sold to more than 68 countries and regions. More than 40 distributors all over the world.
> 14 years' experience manufacturing factory with good reputation.
> 12 national patents of glass laminating equipment technology.
> Our products all approved CE, ISO9001 certificates.
> Supplying whole glass laminating solution, home installation and technical training.
Certifications

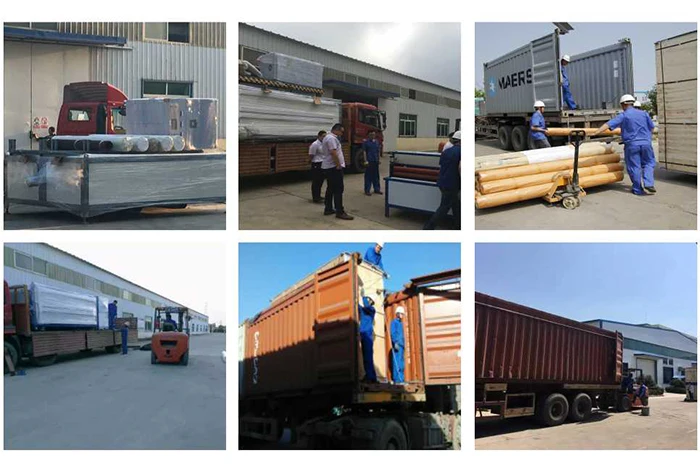

Packaging & Shipping
FAQ
Q: Could your machines laminate bent tempered laminated glass?
Re: Yes. Our machines can laminate large-size bent tempered laminated glass in one step, which is very easy to operate.
Q: How many stages your machines can set?
Re: Normally we set 3 stages. It can be customized for you to 6 stages if needed.
Q: When will your machine ready for delivery after our prepayment?
Re: Normally within in 25 days.
Q: what about the terms of payment?
Re: Normally 30% prepayment, 70% before shipment by T/T. L/C and other terms are also available.
Q: Does you machine have any certifications?
Re: Yes, we do. Our machine has got CE/ISO9001/CCC certificate.
Q: Could the laminated glass used for exterior?
Re: Yes. The laminated glass with super clear EVA have can be used for exterior use.
Q: How to operate the machine? Is it difficult?
Re: No, our machine is very easy to operate. The machine will work automatically after you set the parameters through the touch screen. We send you operating manual with the machine, we also have video for operation for your reference.
