Fully Automatic Craft Beer Bottling Plant

Add to Basket Share to :

Payment Terms 7

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shandong HG Engineering Equipment Co.,Ltd.
Membership TradeVerify
Registration Date2024.11.22
Country/RegionChina
CityJinan
Contact Miss Sun(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Miss Sun

Shandong HG Engineering Equipment Co.,Ltd.

* Buying Product

Category : Packaging Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords filling machines, liquid filling machine, bottle filling machine

Description by Manufacturer

Application	Beverage
Packaging Type	Cartons
Automatic Grade	Automatic
Weight	KG
Warranty	1 years
Machinery Test Report	Provided
Machinery Test Report	Provided
Warranty of core components	3 Years
Core Components	Pump, Pressure vessel, PLC
Key Selling Points	High Productivity
Marketing Type	New Product 2020
Video outgoing-inspection	Provided
Processing	Fermenting Equipment
Condition	New
Brand Name	HG machine
Processing Types	beer
Voltage	Customized
Power	Customized
*Dimension(LWH)*	Customized
Application	Restaurants, bars, hotels, brewery
Heating way	Electric Heating Beer Brewing Equipment

A To Z Fully Automatic 6 Heads Beer Bottle Filling And Capping Machine

Fully automatic craft beer bottling plant

Item	Parameters	Item	Parameters
Washing heads	6	Vacuum pump	0. 20m3/h
Filling heads	6	Power(ABB MOTOR)	main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor: 1.1 KW chain motor: 0.75KW
Capping heads	1	Dimensions	1500×1500×2350(LWH)
Capacity	500-800BPH	N.W.	1500Kg
Bottle type	height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm	Working voltage AC	It can be customized by the customers' electrical conditions.
Air consumption	0.15m3/min(0.4~0.6Mpa)	Control voltage DC	It can be customized by the customers' electricalconditions.
CO2consumption	1.6kg/l000L	Frequency converter	SIEMEMS
Water consumption	0. 8m3/h	PLC	SIEMEMS
Touch screen	SIEMEMS	Pneumatic element	Schneider
Bearing Brand	FAG

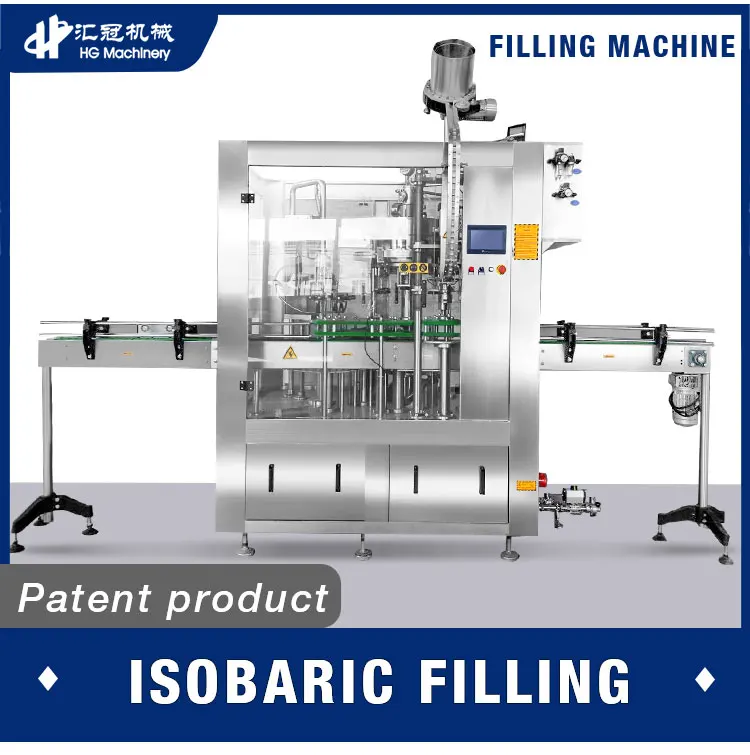

6-6-1 Glass Bottle Beer Filling Machine

The machine is the latest design of the beer filling machine 3 in 1 type. It adopts external filling valves, all filling valves were hung on outside of the beer tank which has no contact with the beer inside. The can guarantee the beer won't have any bacteria infection risk. More stable and reliable than original design.

Basic Configuration

Fully automatic craft beer bottling plant

Item	Production capacity	Filling method	Material	Dimensions
HG-2-1	100-200BPH	Isobaric filling	SUS304	11007502200mm
HG-4-4-1	240-360BPH	Isobaric filling	SUS304	15505501750mm
HG-6-6-1	500-800BPH	Isobaric filling	SUS304	*152011252350mm*
HG-8-8-3	800-1000BPH	Isobaric filling	SUS304	185016002500mm
HG-16-16-6	2000BPH	Isobaric filling	SUS304	230019002500mm
HG-40-40-10	8000-10000BPH	Isobaric filling	SUS304	420030002700mm

Fully automatic craft beer bottling plant

Advantage:

Capacity: 500-800 BPH

External filling valve: more stable and sanitary.

Two times of vacuuming: keep your beer pure, prolong its shelf life.

All-mechanical transmission: it will be more stable.

Mechanical three capping heads: worked more harmoniously.

With foaming device: keep the beer quality.

Send Inquiry
Please click to contact us for more information

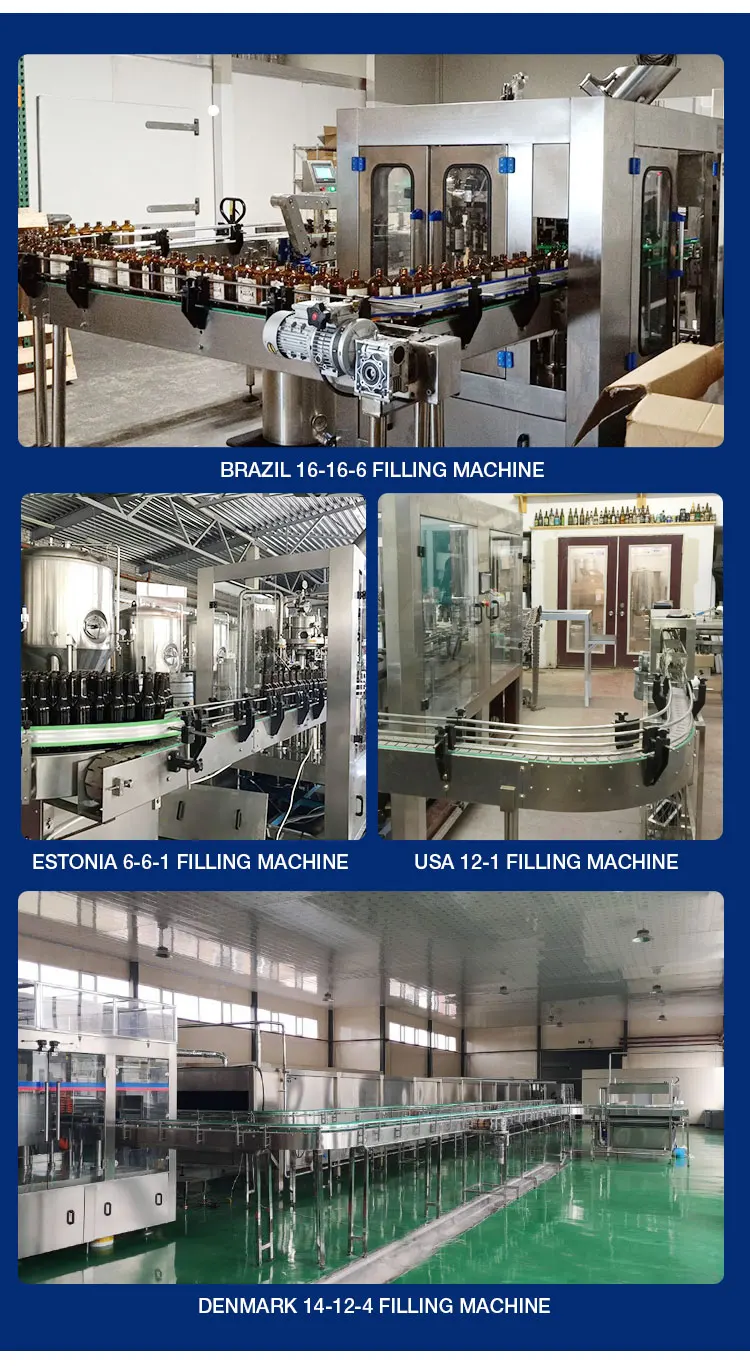

Projects Show

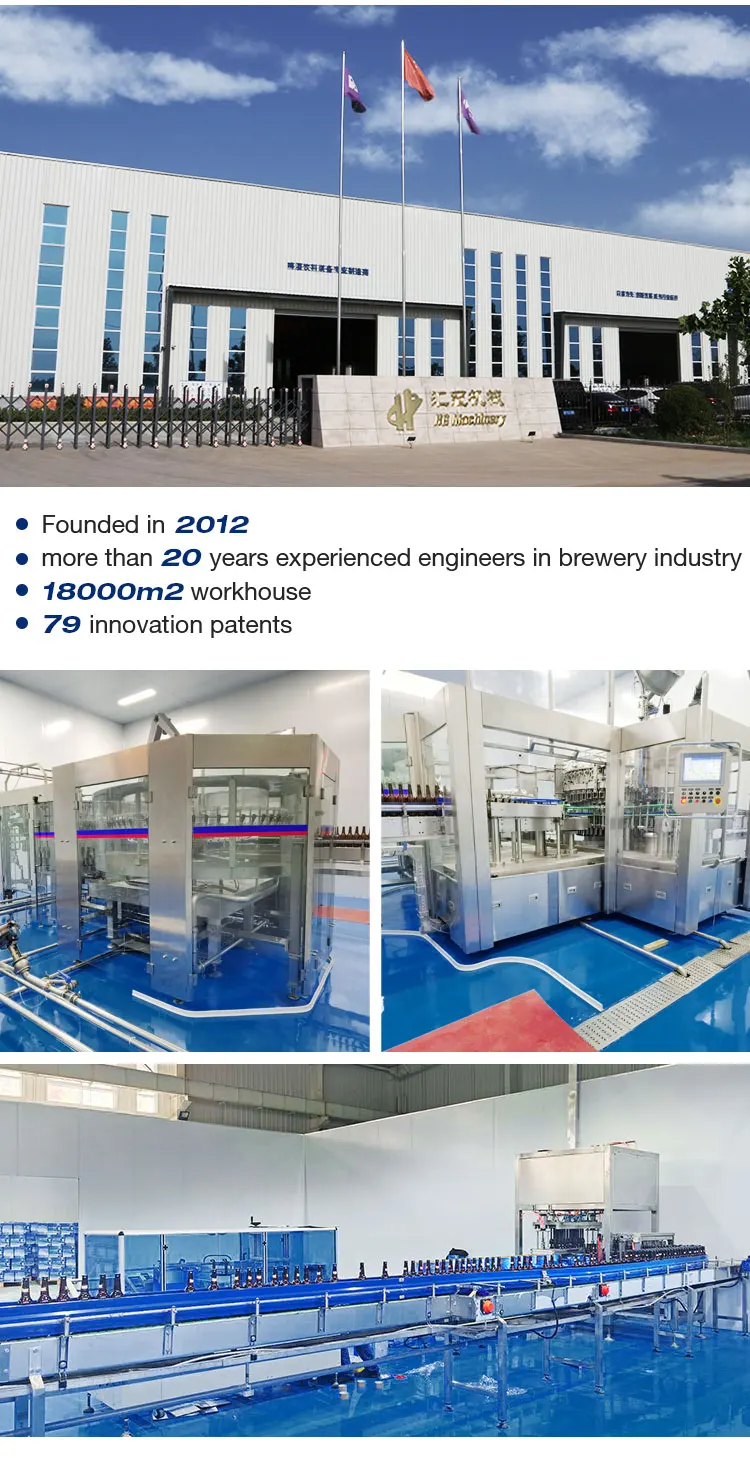

Company Profile

Fully automatic craft beer bottling plant

Quality Inspection & Certificates

Fully automatic craft beer bottling plant

Packed And Delivery

Send Inquiry
Please click to contact us for more information

Client Visit

Fully automatic craft beer bottling plant

Our Exhibition

Fully automatic craft beer bottling plant

Our Service & FAQ

After Service

We guarantee the quality of the machine within 1 year.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in
using it, we will freely do our best to support
We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment

FAQ

Q:How many years of experience in brewing equipment do you have?

A: We have more than 20 years in brewing and beer filling equipment.

Q: Where is your factory located?

A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing.

Q: How could we confirm the details of the products?

A: We will provide all the drawings for you to confirm before production.

Q: How long the warranty will be?

A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.

Q: How about the installation?

A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.

Q: How do you guarantee the filling machine operation?

A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
