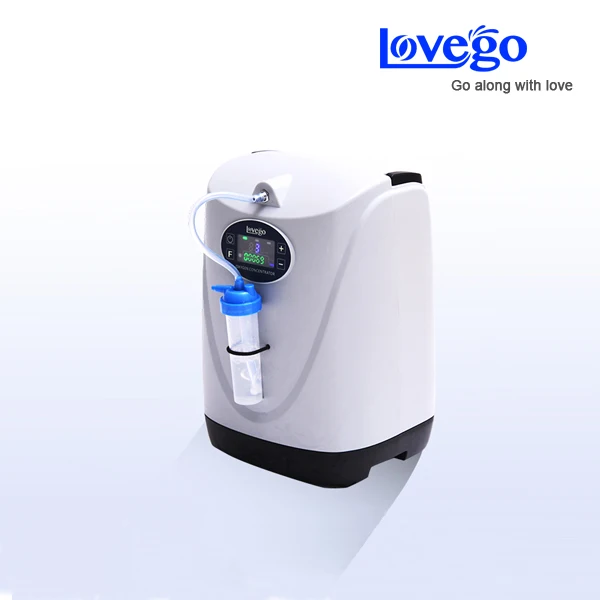

New Generation Portable Oxygen Concentrator
LoveGo LG102P
Special for Oxygen Therapy
Good for Most Respiratory Diseases
Be attention:
The Lovego G2 concentrator has been updated since 1st,June,2018, NOW it is updated with both continuous flow and pulse flow. With more stable performance and more powerful performance, We name it as LG102P.
LG102P is a device that allows oxygen therapy to be carried out under any conditions at home or outdoors, for example, walking, car or plane.
The concentrator is particularly suitable for people who enjoy active oxygen therapy during their active lifestyle and:
• For people with circulatory insufficiency,
• For patients with breathing difficulties (in asthma, COPD),
• For people with sleep apnea,
• for athletes.
Just plug in the car charger and the hub can work for hours without stop.
Our concentrator is a medical product that has all the necessary certifications.
How do you know the LG102P is suitable for you or your loved one?
1. Oxygen Flow and Purity
LG102P produces 1.8LPM continuous flow and 4.5L pulse flow. And the oxygen concentration is 87-95%. It is ok for 4-5LPM Oxygen Therapy
Remark: Pulse flow is calculated at average of 20 BPM(±10ml)
2. Low Oxygen Alarm
Alarm will work to remind user when machine doesn't deliver oxygen. This alarm is a life Safety valve for you or your family.
Green Light=Normal,
Yellow=Caution <82%,
Red with Audible Alarm=Warning <72%
3. Battery Life
The lithium ion battery is rechargeable. Two fully batteries could support machine working 4 hours at any flows
4. Application
Work in the car/truck/yacht, at home, anywhere outdoors. Bring the real freedom to you
5.Super quiet design
≤ 40 dB (nominal) at flat table,≤45dB when travelling. Help you with a better sleep during the night

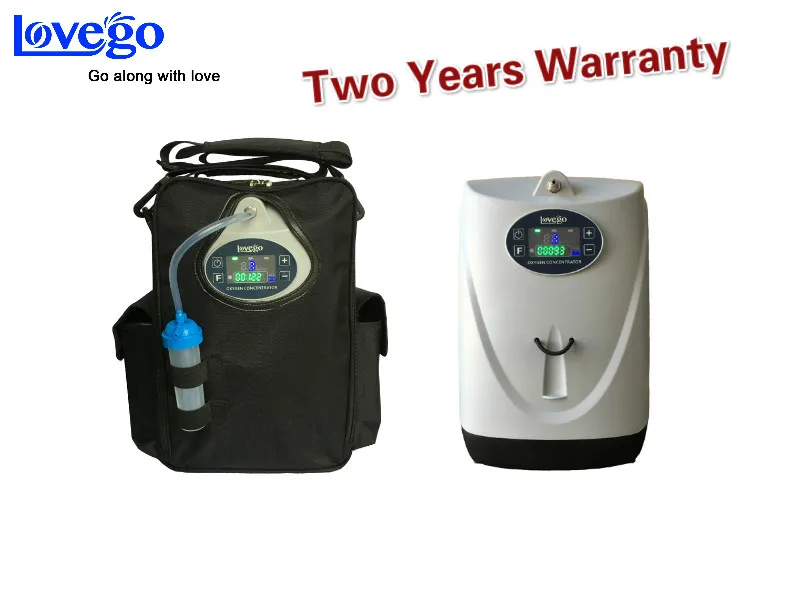

6. Two Years Warranty, Local service is available
There are many people ignore after sales service when they buy from internet. If there isn't service station guarantee after sales service, you can't find a professional technician to fix it when machine has a problem.
We Lovego brand have service stations all around the world to guarantee after sales service to our customers.
If you want to know address of Lovego service station in your country, please contact us.
7. Standard Accessaries

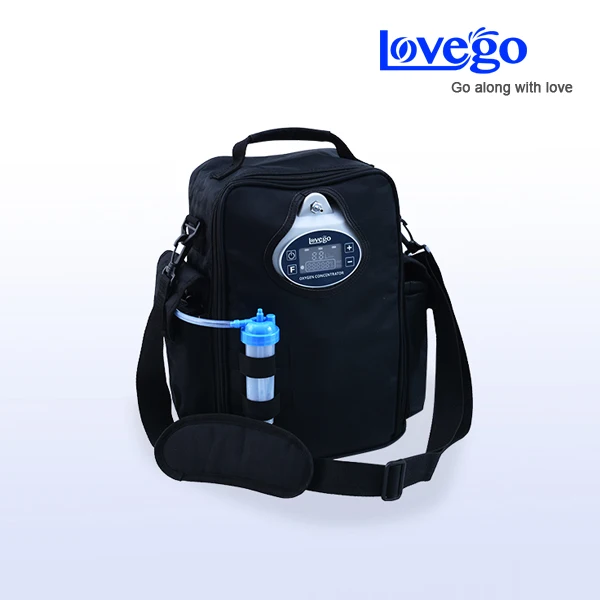

1x Carry Bag
1x Li-ion Battery
1x Battery Charger
1x Car Inverter
1x Oxygen cannula (2m)
2x Air Filters
1x Humidifier cup
1x Operating Manual (English)

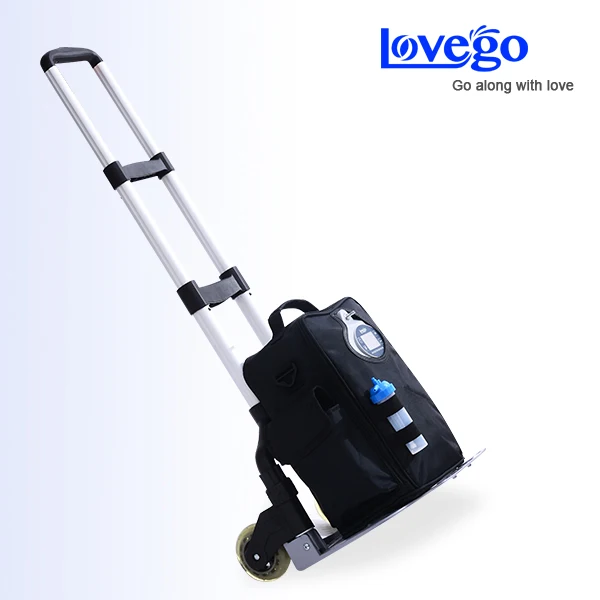

1x Free trolley as gift
Lovego oxygen cannula ( it is optional, if not required, it won't be matched)
Main Specifications
Continuous flow | 1=1LPM, 2=1.5LPM, 3=1.8LPM |
Pulse Flow | 2.5=42ml≈2.5LPM 3.5=58ml≈3.5LPM 4.5=42ml≈4.5LPM At average of 20 BPM(±10ml) |
Oxygen Concentrations | 90%+5%/-3% at any settings |
Outlet Pressure | 8.5 PSI |
Sound Level | ≤ 40 dB (nominal) at flat table,≤45dB when travelling. |
Size | 9.1 in x 8.7 in x 12.8 in (23 cm x 22 cm x 32.5 cm) |
Weight | 11.5 lbs (5.2kg) Machine only, 13.7lbs(6.2kg) with battery |
User Interface | Push buttons, back-lit liquid crystal display (LCD) |
Filtration | air inlet filter, bacteria filter |
Operational Temperature | 41° to 104°F (5° to 40°C) |
Relative Humidity | 15 to 95% |
Altitude | Up to 12,000 ft (3657m) |
Storage Temperature | -4° to 140°F (-20° to 60°C) unit only |
Relative Storage Humidity | Up to 95%, non condensing |
Power Consumption | 90W~100W |
AC Power Input | 100 to 240 VAC, 50/60 Hz, 1.8 A max |
AC Power Output | 14.8 VDC, 8 A max |
DC Power Input | Input 11. to 16.8 VDC 20 A max |
DC Power Output | 14.8 VDC, 8 A max |
Chemistry of Battery | Lithium Ion 14.8 VDC (nominal) |
Battery Dimensions | 6.1 in x 3.4 in x 2 in(15.5 cm x 8.5 cm x 5 cm) |
Battery Charge Time | Approximately 4 to 5 hours |
Battery Duration | Two hours minutes at 1-5 any settings, extra battery is optional. |
O 2 concentration indicator | Green Light=Normal, Yellow=Caution <82%, Red with Audible Alarm=Warning <72% |
Audible Alarm Sound Level | 55 dB (nominal) at 39 in (1m) |
Alarm type | Loss of power, High temperature, Low Therapeutic O 2 Output |
FAQ
How to set the machine 24/7 working home?
Turn on the machine without anyt time set on the machine; the machine will work 24/7 continuously.
How to use the humidifying tube?
When the air is dry, fill half of tube with distilled water or cold water, then use it before connecting the tube with the machine and oxygen pipe. If the air is not dry, it is no need to use the humidifying tube.
How to confirm when is the battery charged full?
You can check the light indicator on the battery, if four light are on, it means the battery capacity is full.
Usually it cost 5-6 hours to charge the battery to be full.
Why the machine works off and on?
The battery can last 2 hours when it is in full condition, 5 minutes before the machine stops work, the machine will work on and off, this set reminds you back to house or car to keep oxygen supply. If the time is not enough, you can get extra battery for backup.
Can the machine be used when charging?
No, it is bad for the machine and the battery, so do not try to use the machine when charging.
How long to change the medical bacterial filter?
It is no need to change and wash the filter in 3000 hours’ working. One extra filter is matched free for accident of pollution on the filter. After 3000 hours using, please take off the filter and burn it to protect the environment, the filter will burn into CO2 and water environmental friendly.
What is the difference between continuous flow and pulse flow?
Pulse Dose (PD) is based on breathing and inhaling, whereas Continuous Flow (CF), as its name implies, is delivered at a constant rate indiscriminate of the user’s breathing.
Continuous flow offers the oxygen all the time, not matter you breathe or not. It is much more suitable for the patients with weak breahe and it is the better choice for oxygen therapy during the night.
Products Details
Term and condition:
Warranty:The payment can be returned within 14 days if you do not like it.
Within 2 years , all exchanges or repairment due to defects are free and free shipping ( the seller is responsible for shipping charges).
Delivery: it will be made by DHL within 3 days after confirming payment subject to details of delivery address provided.
Custom clearance: Client is responsible for the custom clearance and custom duty if any,we will not be responsible for the custom clearance and duty
Contact Us: If you have any questions about the products, please feel free to contact us at any moment. All E-mails will be replied within 24 hours and we are here at your service.
Feedback: We will leave the feedback when we confirm the payment and send the package at the same time. Please do contact us before you leave negative feedback or ship the item back, we promise that we will give you a satisfied solution.
Note: Please leave your detail address and telephone number when you pay for it, and read the description of item carefully.
