TOBEE 4x3x13 Centrifugal Sand Pump for Handle the Barite Ferric Oxide and Mineral Oil Base Drilling

Add to Basket Share to :

Price

1 - 1
US$ 2500
≥2
US$ 2300

Min Order Quantity1 Set
Porttianjin
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Hebei Tobee Pump Co.,Limited
Membership Free member
Registration Date2023.03.20
Country/RegionChina
CityShijiazhuang
Contact Elsa Dou(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Tobee
- Model Number 4x3x13
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Blue
- Fuel Diesel
- Power Electric
- Pressure High Pressure
- Standard or Nonstandard Standard
- Structure Single-stage Pump
- Theory Centrifugal Pump
- Usage Oil
- Related Keywords Centrifugal Sand Pump, Sand Pump, Barite Ferric Oxide

Description by Manufacturer

Tobee® Mission Sandmaster Pumps have compact and adaptable that includes virtually all of the features of the MAGNUM I pumps. In addition, the SANDMASTER is more compact in design and can be adapted for hydraulic motor drive. This added feature makes the SANDMASTER ideal for use in applications such as oilfield frac trucks as well as blending and pump charging service. The SANDMASTER's variable speed hydraulic drive make this an excellent pump for water well drilling applications.
When space is at a premium and prime mover options are limited, the SANDMASTER is the pump of choice.

Mission Sandmaster Pump Designs:

• Compact heavy-duty frame design for small space;
• Multiple application in the oil and gas industrial;
• Full open impeller reduces shaft loading;
• Replaceable stuffing box cover,
• Available in hard ductile iron, high chrome alloy fluid ends(casing, impeller, wear pad, stuffing box), customized fluid ends in stainless steel or aluminum bronze acceptable;
• Available in 8 different size, 3x2, 4x3, 5x4, 6x5, 8x6, 10x8;
• One-piece concentric and thicker casing with same power end;
• SKF bearings or equal;
• Oil or grease lube available; oil lube is for speeds in excess of 2400rpm; 3500rpm is available for 3x2x13 and 4x3x13 pump;
• Completely interchangeable with Mission™ Sandmaster™ and MCM™ Mud Master™ and all other popular brand design in the market;
• Spare parts are interchangeable with the standard model.
• The pumps can be unitized with hydraulic motors driven.

Tobee® Mission Sandmaster Pumps

Mission centrifugal Sandmaster pumps to suit for all kinds of drilling sand pump application. Bare shaft pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.

The model 10x8x14 and 8x6x14 centrifugal sandmaster pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.

Hebei Tobee Pump Co.,Limited

That is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China. We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.

Price

Price US$ 2300 ~ 2500 / Set

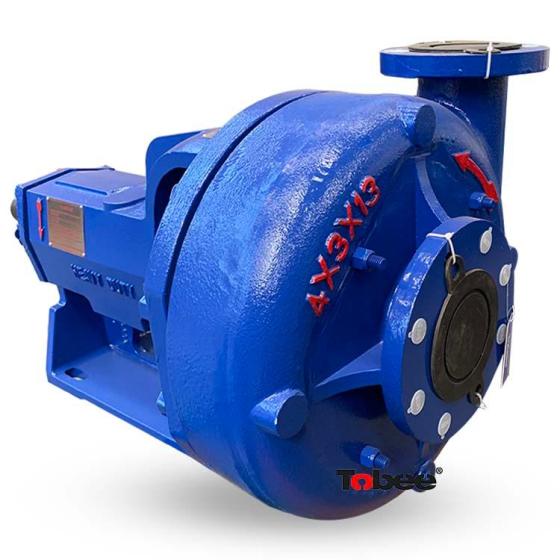

Product Image

TOBEE 4x3x13 Centrifugal Sand Pump for Handle the Barite Ferric Oxide and Mineral Oil Base Drilling

Centrifugal Sand Pump Related Products

Main Export Markets

- Hebei Tobee Pump Co.,Limited is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Hebei Tobee Pump Co.,Limited

Membership Free member
Registration Date2023.03.20
Country/RegionChina
CityShijiazhuang
Contact Elsa Dou(Mr.)

Hebei Tobee Pump Co.,Limited
That is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China.
We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.

Capacity :Tobee Pump has a wealth of experience in the manufacturing and service of pumps and accessories; in fact Tobee Pump has machinery manufacturing experience of over 45 years having achieved great success with R&D and manufacturing of Pumps for more than 30 years. The annual production capacity of pumps in our factory surpasses 10,000 easily. Tobee Pump has a tremendous market share that covers more than 120 cities in China including many provinces and autonomous regions and more than 80 countries.

Production Capability:Tobee Pump has over 80 sophisticated equipment such as CNC, Director reading Spectrometer, CMM (Coordinate Measuring Machine), Rapid typing Machine and etc. Based on these facilities, Tobee Pump has the abilities of material inspection, casting, welding, machining, assembling and the performance test of pump unit. The maximum weight of the casting by Tobee Pump is about 12 tons, the maximum diameter of the casting can be machined by Tobee pump is over 5 meters and the maximum flow rate of Tobee's Pump product is more than 80,000 cubic meters per hour. With an annual production of 1000~120,000 pumps, Presently,Tobee Pump is the top 10 pump manufacturer with high comprehensive capacity of design and producing.
