Product Attributes

- Brand Name YGXtdc
- Model Number YGX601L-13
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Output Analog Sensor
- Theory Resistance Sensor
- Usage Force sensor
- Related Keywords tension compression loadcell, miniature load cell, pull pressure sensor, force sensor

Description by Manufacturer

Tension and Compression Loadcell Miniature Load Cell Pull Pressure Sensor Force Sensor

Model: YGX601L-13

Features & Applications:
Low deflection tension and compression load cell with metal foil strain gauge technology, made of stainless steel.
Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems,medical equipment, cable force measurement, press-in, stamping forces

Capacity : 10, 15, 20, 30, 50, 100, 200, 300, 400, 500kg

Specification

Rated output	1.0±20 % mV / V
Zero balance	± 5 % F.S.
Non-linearity	1 % F.S.
Hysteresis	0.5 % F.S.
Repeatability	0.5% F.S.
Creep (30min)	0.1 % F.S.
Temp. effect on output	0.05 % F.S. / 10ºC
Temp. effect on zero	0.05 % F.S. / 10ºC
Input impedance	350±30Ω
Output impedance	350±5Ω
Insulation	≥2000MΩ
Recommended excitation	5-10 V
Maximum excitation	15 V
Compensated temp range	- 10 ~ 60 ºC
Operation temp range	- 20 ~ 80ºC
Safe overload	120% F.S.
Ultimate overload	200 % F.S.
Cable size	1500 mm
Protection class	IP66
Wiring	Red: + Excitation Black: - Excitation Green: + Signal White: - Signal

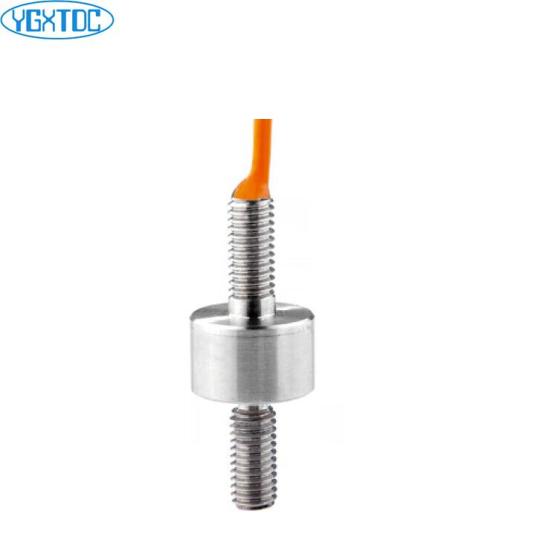

YGX601L-13 Product picture

Dimensions

SIZE(mm)

CAP(kg)

Cable

Material

Weight

10,15,20,30,50,100

Ø2

Stainless steel

0.1kg

200,300,400,500

Ø2

Custom made is available.
We can produce the products according your requirements.

Price

Price US$ 88 / Piece

Packaging & Shipping

- Packing1pc per box
- Packaging Size10 x 5 x 5 ( Centimeters)
- Delivery Lead Time30 days for OEM, 7 days for ready goods
- Minimum Order 1 Piece
- Supply Ability1000pcs per month
- Delivery PortShenzhen
- Shipping Career

Product Image

Tension and Compression Loadcell Miniature Load Cell Pull Pressure Sensor Force Sensor
