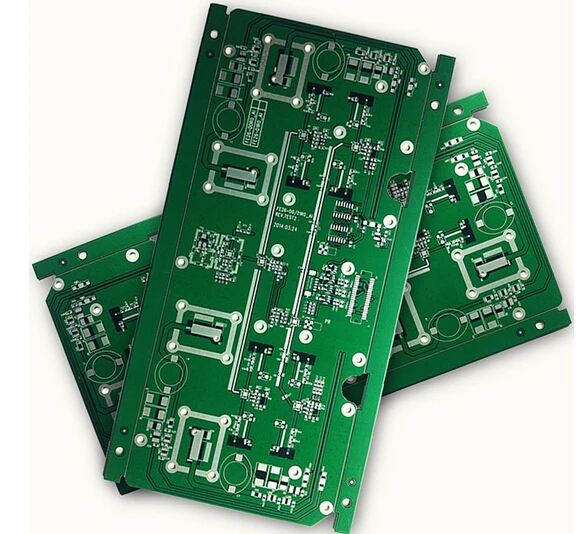

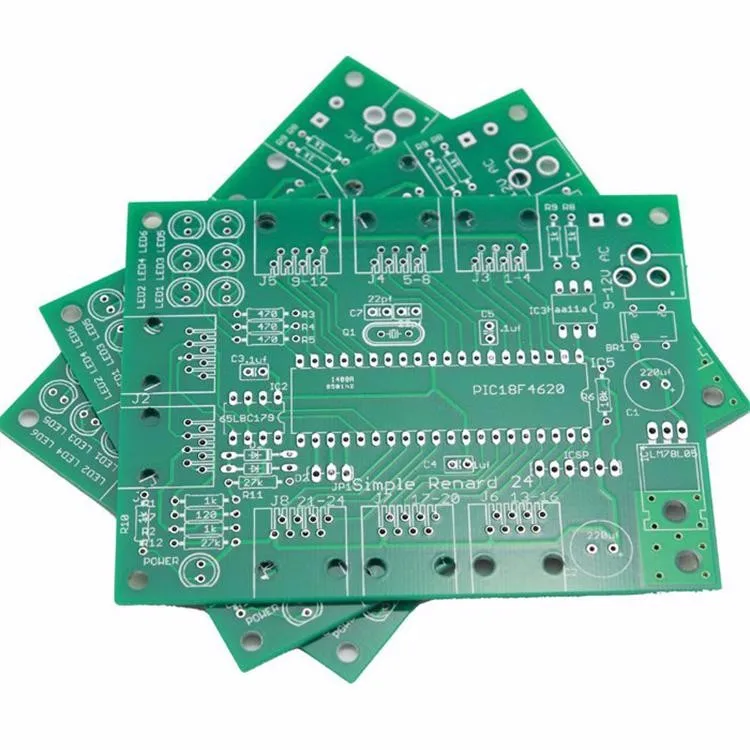

Layer count
|
1-36 layers
|
|
Min line width/space
|
3mil/3mil
|
|
Mim Mechanical drilling hole size
|
Board thickness≤1.2mm 0.15mm
|
|
Board thickness≤2.5mm 0.2mm
|
|
Board thickness>1.2mm Aspect ratio≤15:1
|
|
Finished board thickness
|
Max: 10mm
|
|
Min: 2 layers-0.2mm; 4 layers-0.35mm; 6 layers-0.55mm;
|
|
8layers-0.7mm, 10layers-0.9mm
|
|
Finished copper thiciness
|
Inner layer/outer layer:6oz/10oz
|
|
Max panel size
|
610*1200mm
|
|
Impedeance Tolerance
|
±10%
|
|
Min Dielectric thickness
|
2mil
|
|
Type of dielectric meterial
|
FR4,high TG,Flex,rigid,rigid-terial,High frequency material,PTFE material,heavy copperfoil,paperphenolic plate,BT,PI,Composite material,PTFE+ metal based
|
|
Major Material supplier
|
FR4:Shengyi,ITEQ,Isola,KB,Arlon
PTFE:Rogers,Taconic,Nelco,Wangling,
Metal based meterial:Bergquist,Laird,Totking,ITEQ,Arlon,
|
|
Soldermask colour
|
green,red,blue,white,black,yellow
|
|
Surface treatment
|
HASL ,immsersion gold,immersion silver,OSP,gold finger
|
|
Special process
|
Multilayer PCB with blind or buried vias, impedance control
|
|
Quality control
|
AOI,100% electronic test
|
