INCREMENTAL ENCODERS
There are several series for incremental encoders to meet different requirements of customers and applications. For example, economical encoder, universal encoder, reinforced encoder, high precision reinforced enocder, etc. Also our incremental encoders has been widely used in industrial, automation control of motors, elevators, machine tools, glasses, cermaics, food machinery, aerospace, printing machinery and many other applications.

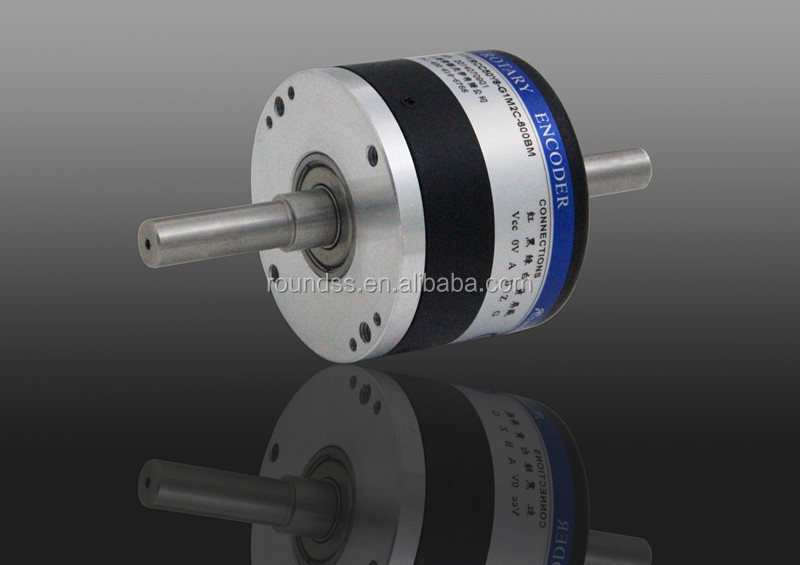

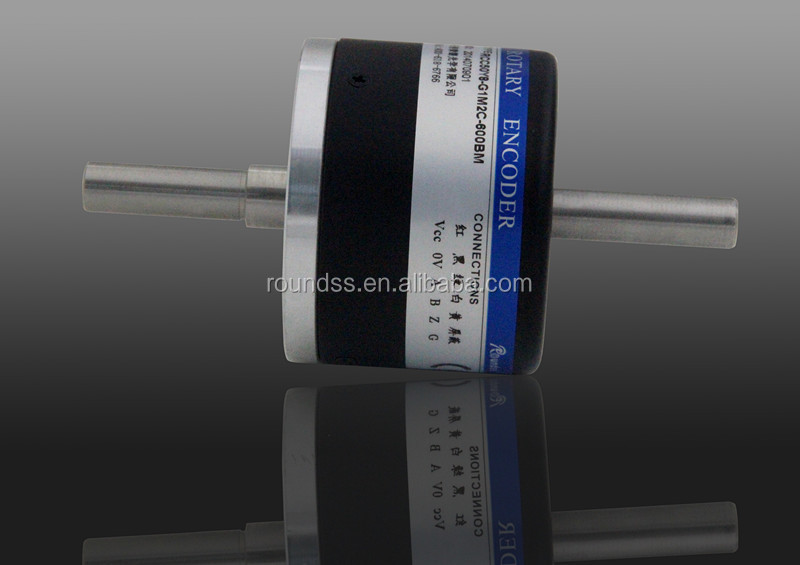

Optical Incremental Wheel Encoder
Features & Applications
Product Parameter
| Mechanical Specifications | |
| External Diameter | 50mm |
| Shaft Diameter | 8mm |
| Max Speed | 6000r/min |
| Shaft Load | Radial≤80N, Axial≤50N |
| Operating Temperature | -20 °C (-40 °C )~+85 °C |
| Connection | Side Entry Cable |
| Protection Class | IP 50 |
| Cable Length | Standard 2M |
| Electrical Specifications | |
| Supply Voltage | DC5V-30V |
| Output Mode | Voltage/Push Pull/Open Collector/Line Driver |
| Frequency Response | 0-100kHz |
| Current Requirement | ≤60mA |
| Output Pulse No. | 10-3600 PPR |
| Index Length | 1T |
| Output Phase | A,B,Z/A,-A,B,-B,Z,-Z |

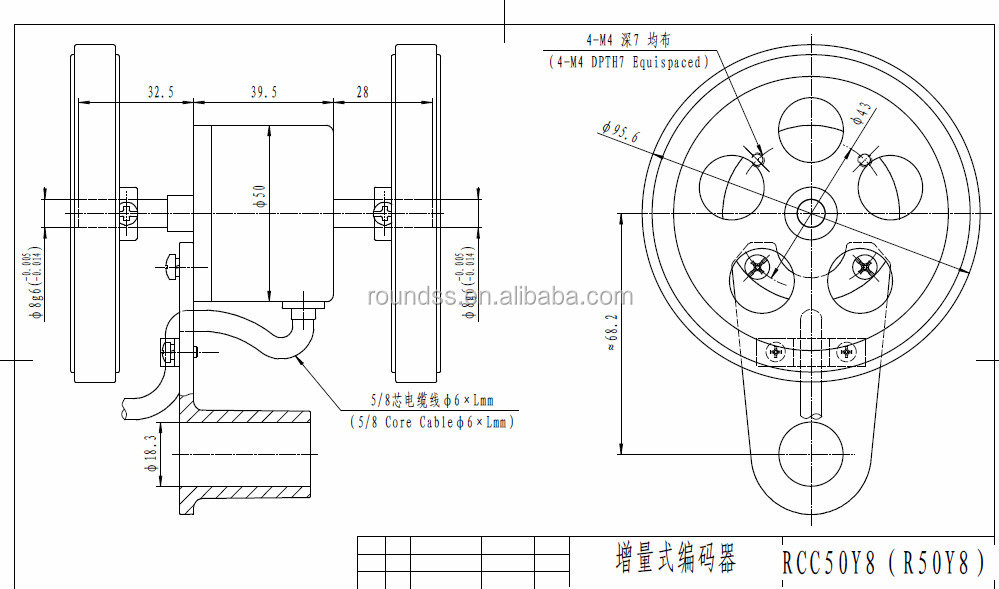

Dimension Drawing

NOTE: Users can use your own wheel or you can order our special Synchronous rubber wheel.
Special requirements can be customized.

Please kindly note we are looking for distributors or agents all over the world. Welcome to join us!
If you have any questions or need more information, please kindly let us know.
