Advanced Fully Automatic CNC Panel Bender Sheet Metal Bending Machine For Metal Plates
Product Description:
MAX-**11 computer numerical control (CNC) bending and panel bending helps fabricate a variety of metal components. When determining whether this fabrication method is ideal for a particular product, it’s important to understand what panel bending is and how it works. MAZS offers a range of CNC metal forming services for our clients’ unique specifications.
Features:
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
* Panel bending offers numerous benefits that make it a suitable fabrication method for many applications.
*The process works particularly well for larger components, as it’s generally more economical and can meet tighter tolerances than other methods.
* panel bending processes only require a single operator, simple operation, low labor requirements.
* Easy maintenance and low cost.
* Lower power consumption.

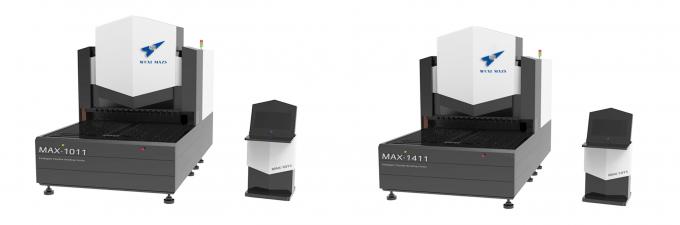

Technical Parameters:
| Items | Technical Parameters for Panel Bending Center |
| MAX-1011 | MAX-1411 |
| Feeding method | Suction cup | Suction cup |
| Work table structure | brush | brush |
| System minimum accuracy | 0.001mm | 0.001mm |
| Positioning method | Y axis three positioning rulers | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time | 0.2 s/time |
| Max. bending width | 1000mm | 1400mm |
| Max. bending height | 170mm | 170mm |
| Rated voltage | 380V | 380V |
| Total motor power | 25Kw | 34Kw |
| Average power | about 1.1Kw | about 1.5Kw |
| Noise | 50dB | 50dB |
| Machine size | 285*150*280cm | 365*190*290cm |
| Total machine weight | about 7t | about 10t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | UST 4 1 0 N/ mm2 cold panel 1 . 2 mm |
| UST 265N/ mm2 aluminum panel 1.6mm | UST 265N/mm2 aluminum panel 1.6mm |
| Minimum panel thickness | 0.35mm | 0.35mm |
| Four sides forming minimum inner size | 140*210mm | 140*210mm |
| Double sides forming minimum inner size | 140mm | 140mm |
| Max. bending size | 1000* 1000mm | 1400* 1400mm |
| Axis qty. | standard synchronized 11 axis | standard synchronized 11 axis |
| Power hinge knife | standard | standard |

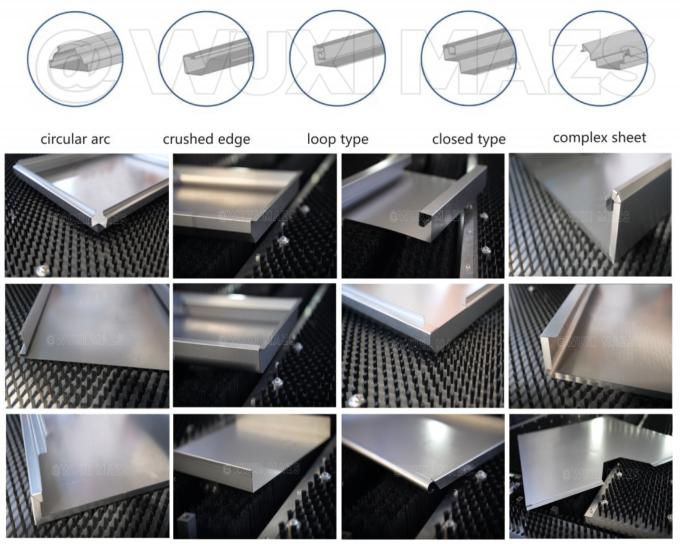

Real Folding Sheets Forming Display:
MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
Application:
MAZS metal sheet bender can be widely applied in following industried:
√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...
√ Kitchenware: refrigerator, air conditioning, stove...
√ Furniture
√ Electrical cabinets
√ Decorations
Support and Services:
MAZS provides:
* Safe stock spare parts
Provide users with complete inventory of spare parts, ensuring that accessories and wearing parts are replaced in time, it provides protection for daily production for users.
* 7x24 Online service
Provide 7x24 hours of after-sales online service to maximize the protection of users' daily production plans, and realize worry free after-sales problems.
* Lifetime service tracking
Establish an user profile with an unique device code, track and record device usage details, and provide lifetime maintenance services for cooperative users

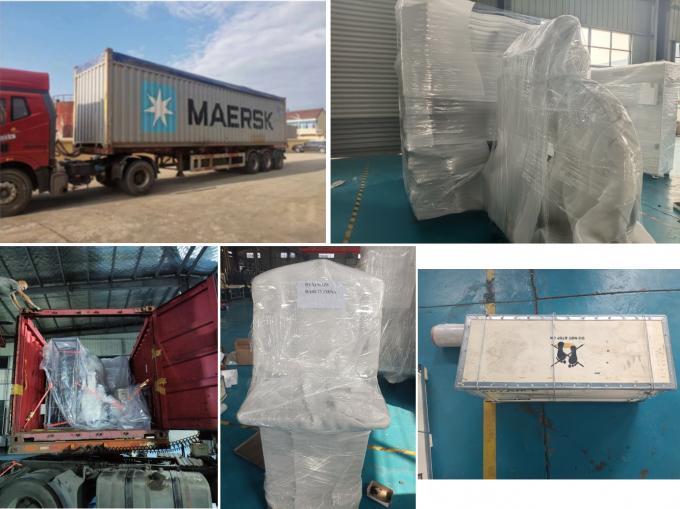

Packing and Shipping:
Packaging and Shipping for CNC Bending Machine:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.
