PRODUCT DESCRIPTION

10 Zones Pcb Smd Reflow Oven Hot Air Convection SMT Reflow Soldering Machine

Features:

HR Series High End/Nitrogen Reflow Soldering Machine

1.Humanized operation interface, Windows 7 operating platform, Chinese and English switching.

2.Intelligent monitoring operation status, fault sound and light alarm, production data recording.

3.Siemens PLC + PID closed-loop control, temperature control accuracy of ±1℃.

4.Long temperature zone design, each temperature zone reaches 300mm length.

5.The air is returned to the front and rear of the temperature zone to effectively avoid cross-temperature, and the lateral temperature difference reaches ±2°C.
6.2800RPM hot air motor, hot air flow rate up to 9OCFM, efficient heat conduction and thermal compensation capabilities.

7.Superior thermal insulation structure, shell temperature ≤30℃, full use of energy.
8.3mm thick aluminum alloy galvanized air distribution board ensures uniform heat distribution in the temperature zone.
9.Strengthen the furnace cavity and guide rail width adjustment mechanism to effectively avoid deformation of the heated furnace cavity and guide rails.

Machine	HR-10C
Heating zones	upper 10 zones
Heating zones	bottom 10 zones
Heating tunnel	3580mm
Dimension	L550012701450
Net weight	about 1915Kg
General power	54KW
Power consumption	Approx.10 KW
Rising time	20 minutes
Controlling type	PC + PLC controlling
Heating method	Fully forced air convection
Temperature controlling	PID close-loop control, SSR drive
Temperature range	Ambient---300℃
Temperature accurancy	±1 ℃
Temperature uniform	±1.5 ℃
Cooling	two cooling zones (top and bottom)
Conveyor method	Mesh belt and chain conveyor
Conveyor height	900±20mm
Max PCB width	350mm
PCB clearance	Top / Bottom 30mm
Conveyor direction	Left to right
Conveyor speed	0-1800mm/min
Hook lift	Electrical screw pole
UP/Downstream communication	SMEMA
Power supply	380v,3ph,50hz

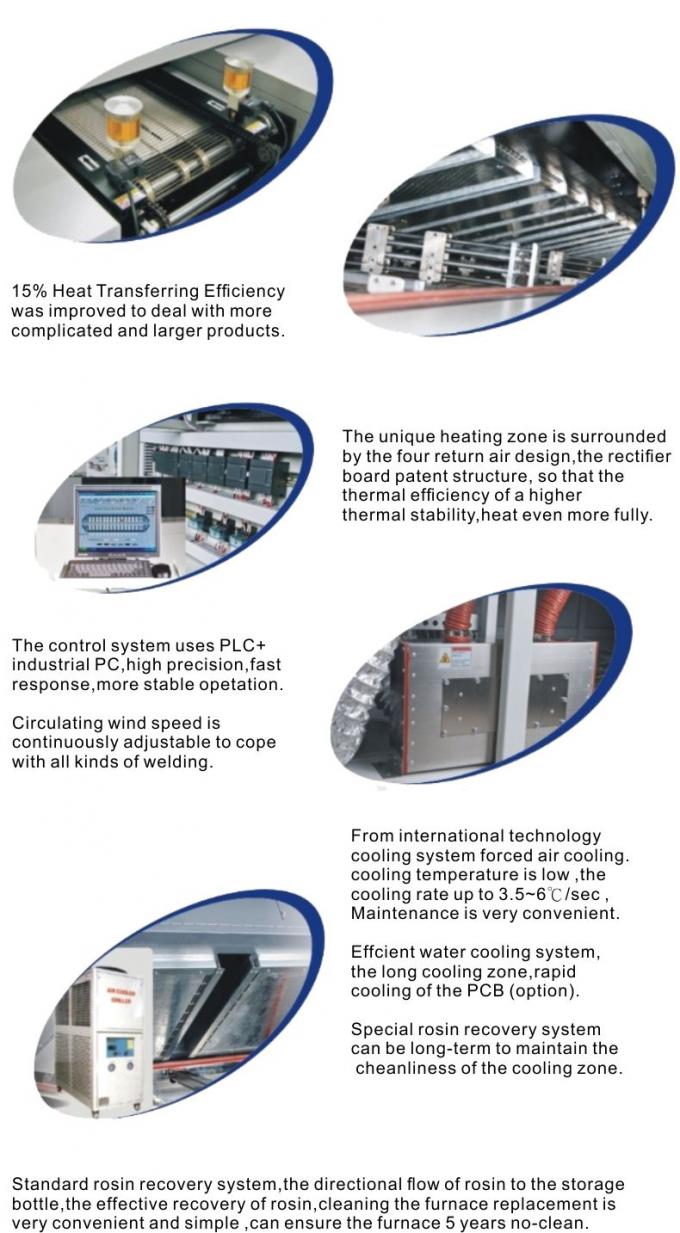

Dtails:

10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air Convection 0

Who We Are ?

Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air Convection 1

10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air Convection 2

Certification

High capacity 8 zones Lead-Free dual track Reflow oven from china manufacturer

Product Image

10 Zones SMT Reflow Soldering Machine , PCB SMD Reflow Oven Hot Air Convection

Company Profile

About Shenzhen Honreal Technology Co.,Ltd

Membership Free member
Registration Date2023.11.28
Country/RegionChina
CityShenzhen
Contact Miss. Monica Wang(Ms.)

Shenzhen Honreal Technology Co. Ltd. is a leading R&D and manufacturing company that specializes in providing various brands of SMT pick and place machines and spare parts , reflow oven, wave soldering machine,PCB handling equipment ect smt factory machines. An enterprise that integrates , sales and service and provides comprehensive solutions for SMT process technology. Our R&D personnel often go directly to the customer's equipment use site to understand the usage conditions of the equipment, seek the best solutions, and continuously introduce updated and improved products. Shenzhen Honreal helps you get efficient returns with the lowest cost investment, and is the most ideal choice for SMT factory users
