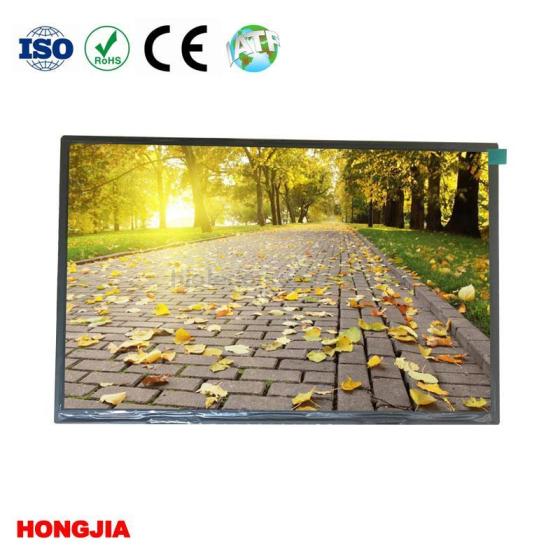

HJ1014001 is a 10.1inch tft lcd module 1280*800 resolution LVDS 40PIN developed and produced by Shenzhen Hongjia Technology, high brightness, and can be equipped with a touch screen. The 10.1 inch TFT LCD Module can be applied to industrial equipment, handheld testing instruments, handheld POS machines, smart homes, For consumer electronics and other products, our company can provide customization according to customer requirements.
Part No | HJ1014001 | Interface type | LVDS |
Size | 10.1 inch | Display Mode | Transmissive/IPS |
Number of Pixels | 1280 × 3(RGB) × 800 | Number of pin | 40 |
Viewing direction | ALL | Connecting type | Plugging type |
Active Area | 162.05(W) × 121.54(H) mm | Luminance | 500cd/㎡ /Brightness is selectable |
Dimensional Outline | 174(W) × 136(H) × 2.8(D) mm | Backlight leds | 39 |
LCM Driver IC | | Backlight type | white LED backlight |
Contrast Ratio | 1000 | operating temperature | -20----70°C |
Display Colors | 16.7M | Storage Temperature | -30----80°C |
Product Remarks: The above products are our standard products. The pictures and parameters of the products listed on the website are for customer reference only. The details are based on our product specifications. If you need this product specification and other specifications, please contact me Division business department, we will serve you wholeheartedly. Our company can customize the mold opening according to the customer's requirements (including changing the backlight, FPC, touch screen, etc.), and supports small quantities of orders and long-term supply.
Certificates
ISO9001
ISO14001
ISO45001
ISO13485
Factory
Equipments
Fully automatic COG+FOG bonding machine
Fully automatic COG bonding machine
Fully automatic FOG bonding machine
Backlight bonding machine
Backend testing
Fully automatic dispensing machine
Polarizer placement machine
Polarizer placement machine
Salt spray testing machine
BM-7Brightness tester
Constant temperature and humidity equipment
Differential interference microscope
FAQ
1. Can your products be customized?
Answer: Dear, our company provides differentiated customized solutions for LCD screens and touch screens, including changing the structure and interface of LCD screen cables according to customer requirements, opening molds for plastic frames and replacing driver ICs, etc.; differences in touch screen covers, cables, etc. Melt open the mold.
2. Can your LCD screen be supplied for a long time?
Answer: Dear, our company will always know the supply situation of upstream material suppliers, keep safe stock materials, and provide long-term stable supply; once the material supply changes, our company will inform customers in advance to prepare materials in advance or provide backup plans to ensure customers Can be stable Production.
3. Can your company support small quantity orders?
Answer: Dear, all products of our company have standing safety stock materials to support early samples, a small amount of trial production, and small and large quantities of order requirements.
4. Can you Hongjia provide technical support and after-sales service?
Answer: Dear, our company provides pre-sales and after-sales support, including electronics, structure and FAE debugging; our company has special personnel to assist in solving problems that arise before and during your company's production, and all products provide timely after-sales service and One year warranty.
5. Does your company make industrial LCD screens?
Answer: Dear, our company is a professional manufacturer of conventional LCD screens and industrial LCD screens, including LCD screens visible under sunlight, wide temperature LCD screens, LCD screens and touch screens for special industries such as medical and military industries, with reliable and stable performance.
