100m Distance Measure Sensor Laser Ranging Module TTL UARST

Add to Basket Share to :

Price

US$ 74

Min Order Quantity1 Piece
Supply Ability1000pcs/day
PortChengdu
Delivery Lead Time3~7 days for sample
Payment Terms 6
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Chengdu Meskernel Integrated Technology Co. Ltd
Membership Free member
Registration Date2024.06.05
Country/RegionChina
CityChengdu
Contact Jane Liu(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Jane Liu

Chengdu Meskernel Integrated Technology Co. Ltd

* Buying Product

Category : Laser Rangefinders

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Meskernel
- Model Number LDJ-100-J240612
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Greenblack
- Measurement Accuracy 2mm
- Measurement Range 100m
- Size 62.91mmx40.00mmx18.00mm
- Laser class classII
- Last type 610~690nm
- Frequency 20HZ
- Measurement Resolution 1mm
- Measurement Time 0.05~4S
- Measurement Unit mm
- Measurement Range 0.03m~100m/150m/200m
- Laser Power <1mW
- Power Supply Voltage DC: 2.5~3.6V Recommendation: 3.3V
- Baud Rate Version default baud rate is 115200bps
- Communication Level TTL(3.3V)
- Supporting Interfaces USART; RS232/RS485
- Weight 14g
- Working Temperature 0-40 degree centigrade
- Storage Temperature -25-60degree centigrade
- Related Keywords laser distance sensor, UART TTL COMS laser, Laser distance module

Description by Manufacturer

Industrial Laser Distance Sensor, we also call it secondary development laser distance module, which support TTL level and CMOS. This LDJ-100 type laser distance sensor can be widely used in professional surveying, mapping, construction, robots, hunting arrows, industrial monitoring and automated measurement applications in electricity, transportation, etc.

This type can equip IP54 or IP67 shell,interface can be USB,RS232,RS485.TTL. This LDJ serial can measure from 0.03~100/150/200m range,frequency can do 3~20HZ,red and green laser,working both indoor or outdoor get the stable precise measuring data.

Meskernel takes years of innovation and iteration,it has independently developed core photoelectric measurement devices.Our layout of up stream core device makes our products more competitive in terms of size,power consumption,cost performance,etc,and can serve customers better and faster.We mainly promote integrated and one-stop solutions,including: ·Single-point laser measurement products (to meet popular mea-surement needs) ·2D and 3D lidar (salve engineering and professional measurement needs) ·Personalized and customized measurement modules

Certificates

- CE CTB231116057EX
- FCC CTB231116022EX

Price

Price US$ 74 / Piece

Packaging & Shipping

- PackingNeutral packing carton
- Delivery Lead Time3~7 days for sample
- Minimum Order 1 Piece
- Supply Ability1000pcs/day
- Total quantity in StockOver 5000
- Delivery PortChengdu
- HS Code9031809090
- Shipping Career

Product Image

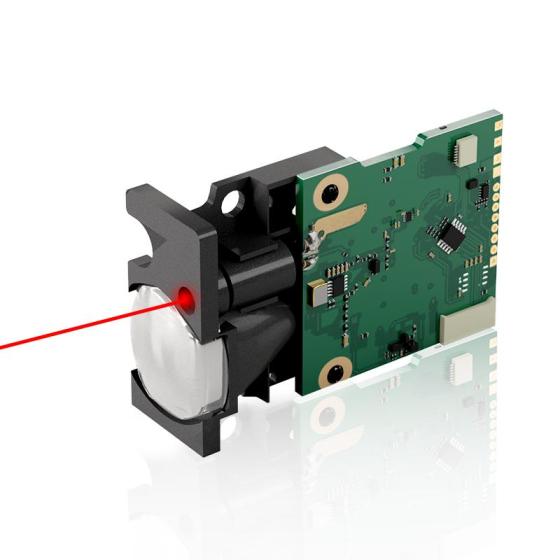

100m Distance Measure Sensor Laser Ranging Module TTL UARST
