1200kw Natural Gas Diesel Heavy Oil Fired Thermal Oil Heater

Add to Basket Share to :

Price

US$ 10000

Min Order Quantity1 Set
PortShanghai
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Henan Yuanda Boiler Co.,Ltd
Membership Free member
Registration Date2023.01.18
Country/RegionChina
CityZhoukou
Contact XU SHUYI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords thermal oil heater

Description by Manufacturer

Overview

Essential details

Applicable Industries:: Manufacturing Plant, plywood/asphalt/latex factory.etc

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Warranty of core components:: 1 Year

Core Components:: boiler body

Condition:: New

Type:: forced circulation

Usage:: Industrial

Structure:: coil pipe

Pressure:: Low Pressure

Steam Production:: 240-14000kw

Style:: Horizontal

Fuel:: natural gas,lpg,cng,lng,diesel,heavy oil,coal,biomass, wood

Place of Origin:: Henan, China

Brand Name:: Yuanda Boiler

Output:: high temperature

Dimension(L*W*H):: depends on boiler model

Weight:: 3~50ton

Warranty:: 1 Year

Key Selling Points:: High effiency and energy saving

After-sales Service Provided:: Engineers available to service machinery overseas

product name:: 1200kw natural gas diesel heavy oil fired thermal oil heater

Application field:: food factory, dyeing,wood processing,etc

color:: blue,red,sliver

boiler output:: high temperature

quality control:: X-ray inspection, etc

fuel consumption:: low ,energy-saving

fuel burning style:: chamber combustion

Efficiency:: 82-98%

company type:: manufacturer founded in 1956

Marketing Type:: Ordinary Product

1200kw natural gas diesel heavy oil fired thermal oil heater

Product Description

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

This series boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last, the low temperature flue gas discharges to the aerosphere through the chimney.

Technical datasheet

Model			YY(Q)W- 350Y(Q)	YY(Q)W- 700Y(Q)	YY(Q)W- 1400Y(Q)	YY(Q)W- 2100Y(Q)	YY(Q)W-3000Y(Q)	YY(Q)W- 3500Y(Q)	YY(Q)W- 4200Y(Q)	YY(Q)W-5600Y(Q)	YY(Q)W-7000Y(Q)
Capacity		KW	350	700	1400	2100	3000	3500	4200	5600	7000
Rated working pressure		Mpa	0.8
Heat carrier output/inlet temperature		℃	280/250; 320/290
Design thermal effiency		%	>96
Fuel con sump.	Natural gas	Nm3/h	42.13	84.26	169.11	259.6	369.57	431.92	516.38	676.5	830.73
Fuel con sump.	Diesel	kg/h	34.5	69.1	138.78	212.52	302.39	353.31	422.57	560.24	673.82
Size		Meter	3000 1000 2000	3200 1300 2050	3710 1524 2150	5600 2400 3170	5600 2400 3170	5900 2382 3560	6630 3200 3050	7200 3550 3920	8090 3675 4000
Weight		Ton	2.0	3.0	4.0	6	10	10.2	16.5	23.6	28

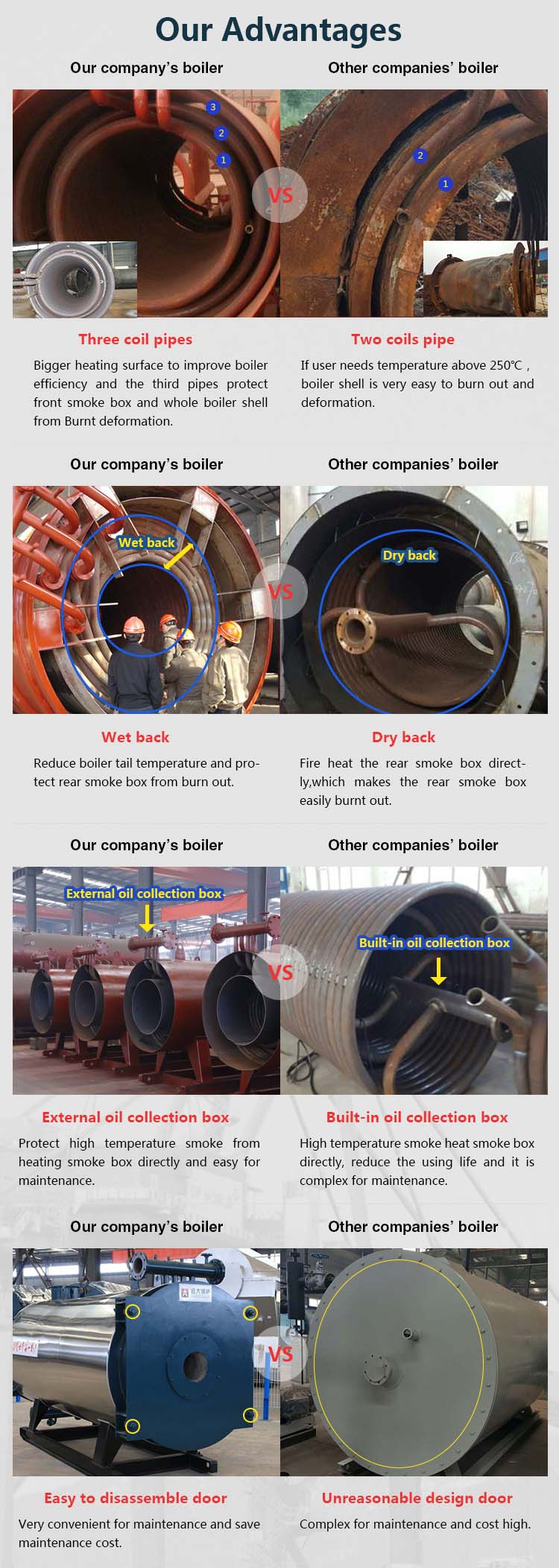

Our boielr advantage

For buying a boiler, customers cares most is boiler's quality,energy consumption and boiler maintanance, our boiler sloves these easily.

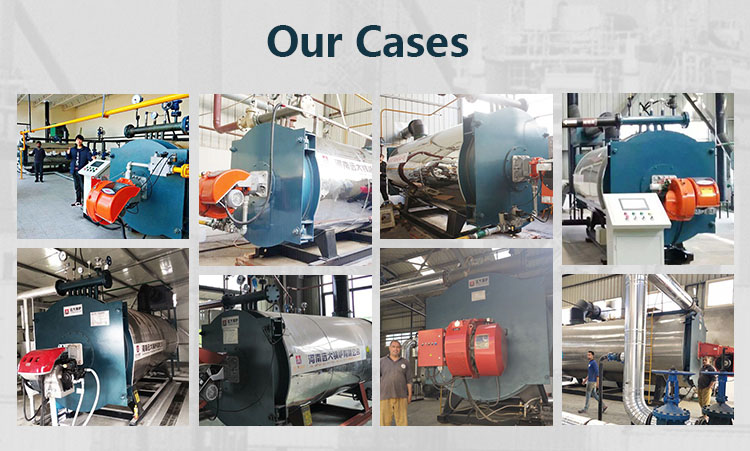

Our cases

For our thermal oil boiler's good quality and our company's good after sales service, we have hundreds of projects all around the world. They are mainly used in plywood factory,bitumen(asphalt) factory, textile factory, refinery factory,food factory,etc.

Price

Price US$ 10000 / Set

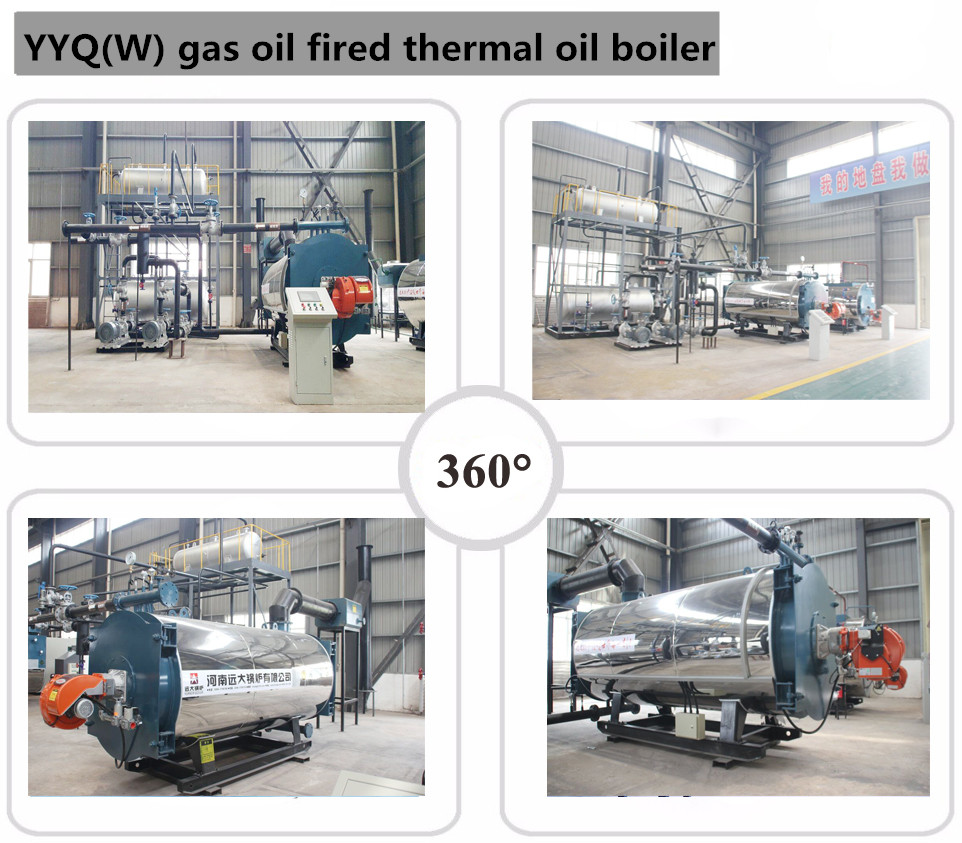

Product Image

1200kw Natural Gas Diesel Heavy Oil Fired Thermal Oil Heater

1200kw Natural Gas Diesel Heavy Oil Fired Thermal Oil Heater 2

1200kw Natural Gas Diesel Heavy Oil Fired Thermal Oil Heater 3

1200kw Natural Gas Diesel Heavy Oil Fired Thermal Oil Heater 4

1200kw Natural Gas Diesel Heavy Oil Fired Thermal Oil Heater 5

1200kw Natural Gas Diesel Heavy Oil Fired Thermal Oil Heater 6

Thermal Oil Heater Related Products

Main Export Markets

- Henan Yuanda Boiler Co.,Ltd is mainly exporting to China (Mainland), Asia, South America, Africa

Company Profile

About Henan Yuanda Boiler Co.,Ltd

Membership Free member
Registration Date2023.01.18
Country/RegionChina
CityZhoukou
Contact XU SHUYI(Mr.)

Henan Yuanda Boiler Co.,Ltd located in Xihuan County,Henan province,is the leading industrial
boiler manufacturer in China,Founded in 1956,we are one of the leading enterprises which
firstly obtained boiler manufacturing license in China.
We have our own R&D team and cooperate with famous high-tech reseach institues,such as Beijing "ZhiGuang"
boiler institute,Harbin institute of Technology and Xi'an jiaotong University,which ensures
our product in the forefront of technology.Till now,we have got more than 10 boiler patents.
With more than 60 years'experience in boiler design,production,installation and operation,Yuanda
boiler has formed an annual production capacity of 5000 tons of industrial boilers and 6000 tons
of various of pressure vessels.The products of Yuanda boiler have covered China and exported to more than 80
countries in the world.
We have been dedicated to provide safe,energy saving and environmental friendly products to our customers.
Welcome to visit our factory.
