120GHz 40m Distance Measurement Sensor PCB Radar Module Chip Height Measuring Sensor

Add to Basket Share to :

Portxiamen
Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Xiamen Kegan Iot Technology Co., Ltd.
Membership Free member
Registration Date2024.07.22
Country/RegionChina
CityXiamen
Contact xiamen kegan(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.xiamen kegan

Xiamen Kegan Iot Technology Co., Ltd.

* Buying Product

Category : Other PCB & PCBA

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords pcb, sensor module, Electronic Circuit Board, Height Distance measuring

Description by Manufacturer

The KGLD03R 120GHz distance measuring radar module adopts a FMCW FM continuous wave mode and a microstrip array antenna, which is able to replace laser and industrial ultrasonic distance measuring radars and other products. The product's small size and compact structure make it suitable for a variety of application scenarios.

The 120GHz radar system accurately measures the distance to stationary or moving targets, and the sensor's output can be configured by the filtering results of the range or signal strength. The radar working frequency band is 120 GHz, and the maximum distance measurement is 20 meters . According to the RCS, the maximum detection distance will have a deviation.

Emission Frequency: 120~123GHz;

Output Power (EIRP) : 13~20 dBm ;

Output Power Consumption: 9 ~14 mw;

Beamwidth (-3dB) Antenna Angle: 6°;

Working Voltage: 9 ~24 V;

Working Current : 20 mA ;

Output: RS485;

Working Temperature: ﹣45 + 85 ℃;

Refresh Rate: 0.1~25 Fps;

Module Size: 36.6*43 mm;

Weight: 10g;

Measuring Range: 0.1~20m;

Measuring Accuracy: ±2mm;

Resolution: 1mm;

Start-Up Time: 1s;

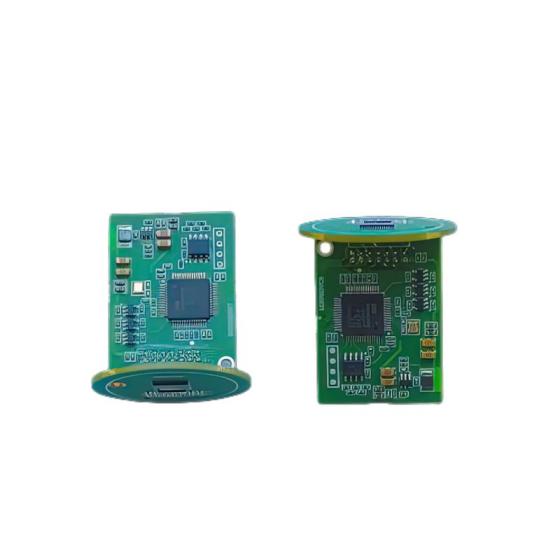

Product Image

120GHz 40m Distance Measurement Sensor PCB Radar Module Chip Height Measuring Sensor
