13.56 Mhz Rfid Card Reader and IC All-in-one Read-only Module with TTL Interface

Add to Basket Share to :

Price

1 - 49
US$ 7.28
50 - 499
US$ 6.66
≥500
US$ 6.24

Min Order Quantity1 Piece
Supply Ability50000pcs per Month
PortShenzhen Yantian
Delivery Lead Time25 days for OEM, 3-5 days for ready goods.
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Omnigift Technology Co.,Ltd
Membership Free member
Registration Date2016.09.23
Country/RegionChina
CityShenzhen
Contact Yan Zhao(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Yan Zhao

Shenzhen Omnigift Technology Co.,Ltd

* Buying Product

Category : Access Control Card Reader

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Omnigift
- Model Number OM-HM211
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Navy
- Related Keywords hid card reader 13.56mhz, 13.56mhz mifare card read, 13.56 mhz rfid reader

Description by Manufacturer

The IC card reader can set five output format steps:

1. Use IC card to set output format, such as IC card number (called A card): B5 BB 23 FE (opposite to the UID read by NFC mobile phone software, we call it reverse order, and vice versa.)

2. The IC card is not detected within 1 second after power-on, and the setting fails. The card reader output is the card number in the current format.

3. If the IC card is detected within 1 second of power-on, it will enter the setting state (it is better to put the A card in the card reading range of the card reader for power-on). At this time, the LED light will flash continuously (about 5 seconds). Please start setting within this period.

1) Swipe another IC card (called card B) once, and then swipe card A again or wait for 5 seconds. The card reader is successfully set, and the output IC card number is the 10-digit decimal reverse sequence: 3048940542 (8H10D, take 4 bytes to 10 digits)

2) Brush the B card twice in succession, and set the output card number to 8-digit decimal reverse order: 12264446 (6H8D, the last 3 bytes are converted to 8 bits)

3) Brush the B card three consecutive times, and set the output card number to 8-digit decimal reverse order: 18709214 (2H3D4H5D, the second byte turns to 3 bits, and the second byte turns to 5 bits)

4) Brush B card 4 times continuously, and set the output card number to hexadecimal reverse order (8H or 14H): B5 BB 23 FE

5) Brush B card 5 times continuously, and set the output card number to hexadecimal positive sequence (8H or 14H): FE 23 BB B5

4. In the configuration mode, swipe the third IC card (called C card), and the card reader is set to not carry the carriage return.

5. In the configuration mode, swipe the A card again to confirm to exit the configuration

Features:

The faraway distance

l Various voltage optional

l Read CSN card number only

l With burgers and LED light

Di Different output formats

Application:

l Tablet PC

l Lift control

l POS terminal

l Parking system

l Access control

l Handheld terminal

l Attendance application

l Recreational Machine

l Barrier gate/rapid-open gate

Module NO.:

Module NO.	Interface
OM-HM211-WG	Wiegand26/34，5V
OM-HM211-T	TTL，5V
OM-HM211-S	RS232，5V
OM-HM211-H	USB-HID，5V
OM-HM211H-WG	Wiegand26/34，9-12V
OM-HM211H-S	RS232，9-12V

Parameter:

Frequency	13.56MHz
Standard	ISO14443A
Supporting Cards	Mifare s50/70，F08，ultralight，ntag Card
Interface	Wiegand26/34, TTL，RS232，USB-HID
Power Supply	5V，9-12V
Card Reading Distance	0~6cm（Depending on label size ）
Current	<30mA
Operating Temperature	0℃~ 55℃
Antenna	built in
Dimension	45 256mm

Price

Price US$ 6.24 ~ 7.28 / Piece

Packaging & Shipping

- Delivery Lead Time25 days for OEM, 3-5 days for ready goods.
- Minimum Order 1 Piece
- Supply Ability50000pcs per Month
- Total quantity in Stock301 – 500
- Delivery PortShenzhen Yantian
- HS Code8471900090
- Shipping Career

Product Image

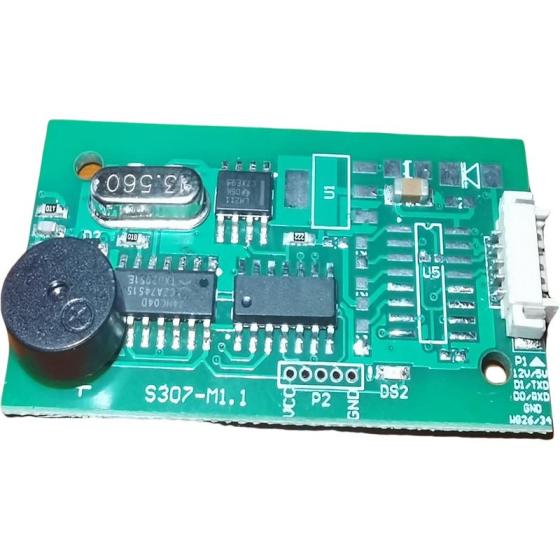

13.56 Mhz Rfid Card Reader and IC All-in-one Read-only Module with TTL Interface
