13.56MHz HF 4PSAM/CPU Card RFID Module, External Antenna Dual-Interface Reader Module

Add to Basket Share to :

Supply Ability10000 sets per month
PortSHENZHEN
Delivery Lead Time5 working days for small order lot
Payment Terms 3

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name SHENZHEN CHIKEK Intelligent TECH Co.,LTD
Membership Free member
Registration Date2017.03.30
Country/RegionChina
CityShenzhen
Contact Tracey(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Tracey

SHENZHEN CHIKEK Intelligent TECH Co.,LTD

* Buying Product

Category : Access Control Card Reader

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name CHIKEK
- Model Number CHK362MT
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Frequency 13.56MHz
- Port UART TTL or RS232
- Antenna External with 1.25 2P connector or IPX
- Protocol ISO14443A/B ISO15693 ISO7816
- Related Keywords 4PSAM card reader writer, CPU card RFID Module, Multi RFID Reader, Contactless reader

Description by Manufacturer

Key Features:

3.3V ~ 5V DC Power supply, RS232 or UART TTL;

Compatible with ISO14443 A/B, ISO15693 ,ISO7816 T=0 PSAM card standard;

R/W MIFARE® Classic 1K /4K, MIFARE Ultralight®/Ultralight® C, MIFARE DESFire®, ISO14443A-4 contactless CPU card, I CODE SLI, etc;

Internal with 4 PSAM socket;

External antenna with 1.25 2P connector/IPX, reading range up to 5~7 cm;

Internal BUZ available for indication.

Technical Parameters:

Electrical Specification
Power supply	DC 3.3V ~ 5V
Power consumption	< 150 mA
Operation frequency	13.56MHz
Baudrate	9600~115200 bit/s ( default 115200 bps)
Interface	UART TTL or RS232
Antenna	External with 1.25 2P connector or IPX
Reading range	50- 7 0mm (depends on tag and antenna size)

Mechanical Specifications
Dimension	76mmx 50mmx2.8mm (LxWxH)
Weight	10g
Material	FR-4, Blue
Model	CHK362 MT

Environmental Conditions
Operation temperature	-20°C～ +80°C
Storage temperature	-40°C～ +85°C
Humidity	Relative humidity 5%～95%

Supported Standard/ Tags
ISO14443 A	Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE® DESFire®EV1, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x Read UID only: Read UID only of all other ISO14443A RFID tags
ISO14443 B	SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
ISO15693	EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity)
ISO7816	PSAM T=0, T=1 standard

SDK information

Demo software

Windows, C# program language

Files

Comprotocol document

API document

User Manual

Demo.exe

Note: Other functions and details to be continued and upgraded

Packaging & Shipping

- Delivery Lead Time5 working days for small order lot
- Supply Ability10000 sets per month
- Total quantity in StockOver 5000
- Delivery PortSHENZHEN
- HS Code8473309000
- Shipping Career

Product Image

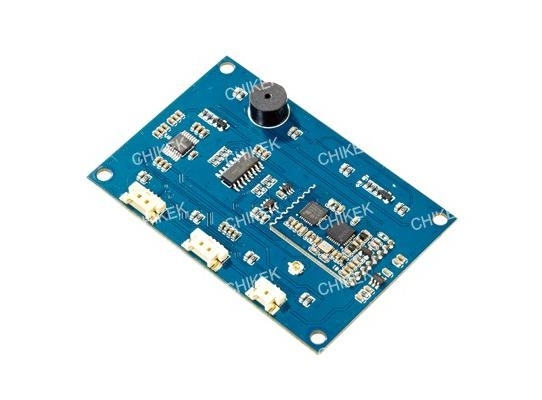

13.56MHz HF 4PSAM/CPU Card RFID Module, External Antenna Dual-Interface Reader Module
