13.56MHz Inbuilt TTL Multi Protocol RFID Reader Writer, IC Card RFID Module, ISO14443A/B, ISO15693

Add to Basket Share to :

Supply Ability10000 sets per month
PortSHENZHEN
Delivery Lead Time5 working days for small order lot
Payment Terms 3

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name SHENZHEN CHIKEK Intelligent TECH Co.,LTD
Membership Free member
Registration Date2017.03.30
Country/RegionChina
CityShenzhen
Contact Tracey(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Tracey

SHENZHEN CHIKEK Intelligent TECH Co.,LTD

* Buying Product

Category : Access Control Card Reader

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name CHIKEK
- Model Number CHK342MT
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Frequency 13.56MHz
- Interface UART TTL
- Antenna Inbuilt on board
- Protocol ISO14443A/B ISO15693
- Related Keywords Reader Writer Module, Internal TTL module, Embed IC card reader, NFC tag RFID module

Description by Manufacturer

Key Features:

DC3.3V ~5V power supply, UART-TTL interface;

Adopts ARM MCU solution, lower power consumption;

Compliant with ISO14443A/B, ISO15693 standard;

R/W MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C,NFC NTAG, MIFARE® PRO,ISO14443A-4 contactless CPU card, I CODE SLI/SLI S, TI 2048,Fujitsu MB89R112A metal tags,etc;

Inbuilt antenna on board, reading range up to 4 ~ 10cm

Technical Parameters:

Electrical Specification
Power supply	DC 3.3V ~ 5V
Power consumption	Max current：<150mA, Standby current: <1 mA
Operation frequency	13.56MHz
Baudrate	9600~115200 bit/s ( default 9600bps)
Interface	UART TTL
Antenna	Inbuilt on board
Reading range	Up to 4 cm ~ 10 cm( depends on antenna and cards)

Mechanical Specifications
Dimension	34.5mmx58mmx3mm (LxWxH)
Weight	8g
Material	FR-4, Blue
Model	CHK342MT

Environmental Conditions
Operation temperature	-20°C～ +80°C
Storage temperature	-40°C～ +85°C
Humidity	Relative humidity 5%～95%

Supported Standard/ Tags
ISO14443 A	Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG 21x Read UID only: Read UID only of all other ISO14443A RFID tags
ISO14443 B	SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
ISO15693	EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity)

SDK information

Demo software

WINDOWS, C# language

Files

Comprotocol document

API document

User Manual

Demo.exe

Note: Other functions and details to be continued and upgrade

Packaging & Shipping

- Delivery Lead Time5 working days for small order lot
- Supply Ability10000 sets per month
- Delivery PortSHENZHEN
- Shipping Career

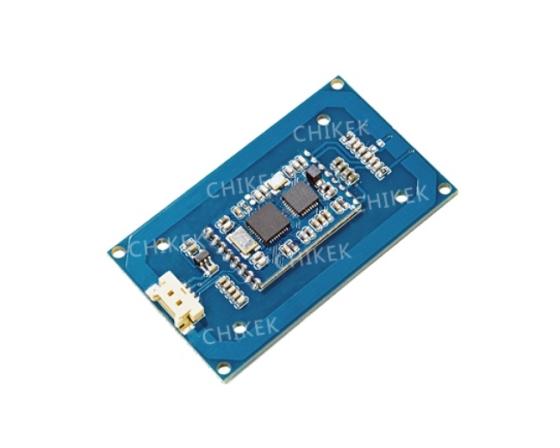

Product Image

13.56MHz Inbuilt TTL Multi Protocol RFID Reader Writer, IC Card RFID Module, ISO14443A/B, ISO15693

Reader Writer Module Related Products

Inbuilt Antenna TTL MIFARE RFID Reader Module, NFC Tag Reader, ISO14443A

Company Profile

About SHENZHEN CHIKEK Intelligent TECH Co.,LTD

Membership Free member
Registration Date2017.03.30
Country/RegionChina
CityShenzhen
Contact Tracey(Ms.)

SHENZHEN CHIKEK Intelligent TECH CO.,LTD, referred to as CHIKEK, is a high-tech enterprise majored in development of embedding RF module of Internet of Thing, application system solution design, and product ODM, etc. Which the products can be widely used in smart lock, access control, medicalindustry automatic, logistic and warehouse, payment system, animal management, membership system, smart house and so on.

The company has a series of mature products, able to quickly response to customers demand, also shorten their products develop period. Our major products including:

1) Embedding MIFARE Classic Reader/Writer Modules

2) MIFAREDesfire series card application Writer Modules

3) HITAGS 64/256/2048 Animal Tag Writer

4) T5577 Card Encryption Reader

5) USB Desktop LF/HF/UHF Reader/Writer

6) Other different Port /Industrial Application RFID Device
