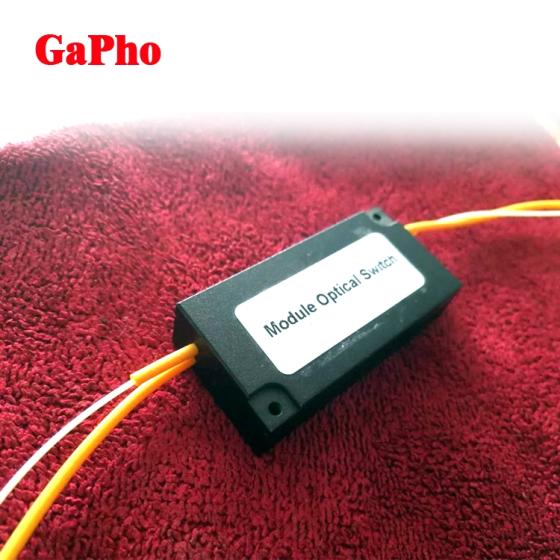

*Broad operating band
*Low excess loss
*High stability and reliability
⊕Applications
*Multimode fiber communication systems
*Optical LAN
*Test instruments
*Optical fiber sensors
⊕Specification
| Parameters | Unit | GP-OWS-MEMS-1×N(≤24) | |
| Wavelength Range | nm | SM | MM |
| 1310±20 | 850±20 | ||
| 1550±20 | 1310±20 | ||
| 1625±20 | 1550±20 | ||
| Test Wavelength | nm | 1310/1550/1625 | 850/1310/1550 |
| Insertion Loss | dB | 1.0(TYP) 1.2(MAX) N≤16 | 0.8(TYP) 1.0(MAX) N≤8 |
| 1.2(TYP) 1.8(MAX) N≤24 | 1.0(TYP) 1.5(MAX)N≤12 | ||
| WDL | dB | ≤0.3 | ≤0.3 |
| PDL | dB | ≤0.15 | ≤0.15 |
| Return Loss | dB | ≥40 | ≥25 |
| Crosstalk | dB | ≥50 | ≥30 |
| Repeatability | dB | ≤±0.05 | ≤±0.05 |
| Power Supply | V | 5~12 | |
| Durability | Cycles | ≥109 | |
| Switch Time | ms | ≤20 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -5~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
| Dimension | mm | (Type A) 39.1(L) x 24.7(W) x 11(H) ±0.2 | |
| (Type B) 65(L) x 24.7(W) x 11(H) ±0.2 | |||
| Note: 1 Within operating temperature and SOP. | |||
| 2 Excluding connectors. | |||
| >> For More Specifics & OEM Please Click Here<< | |||

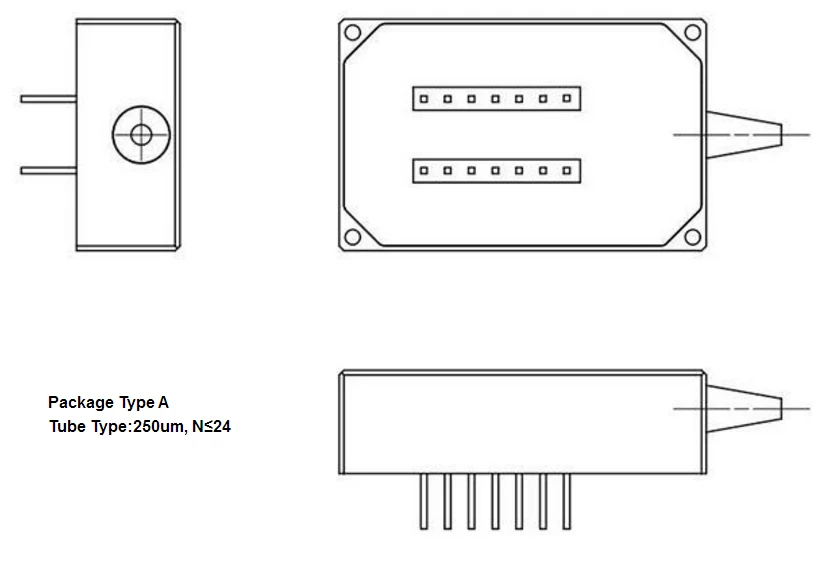

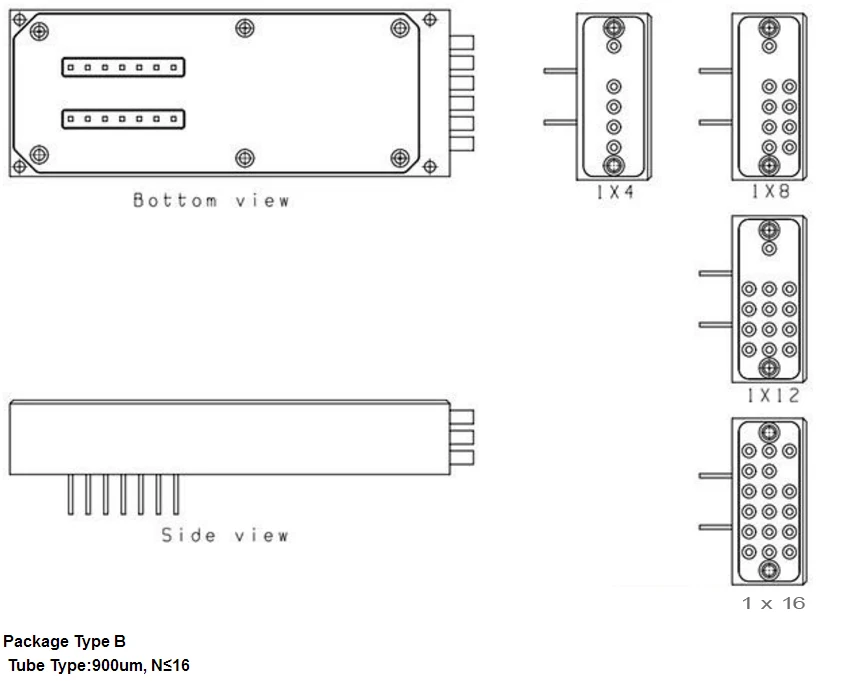

⊕Dimension


⊕Pin Configuration
| Pin | Signal Name | Description | I/O | specifications | Unit |
| 1 | NC | NC | |||
| 2 | VCC | DC Power Supply | Power | 5 | VDC |
| 3 | STROBE | Strobe signal, The falling edge of the effective | IN | TTL | |
| 4 | GND | Ground | Power | ||
| 5 | D0 | Channel D0 | IN | TTL | |
| 6 | D1 | Channel D1 | IN | TTL | |
| 7 | D2 | Channel D2 | IN | TTL | |
| 8 | NC | NC | |||
| 9 | TXD | Serial Port Send | IN | TTL | |
| 10 | RXD | Serial Port Receive | IN | TTL | |
| 11 | GND | Ground | Power | ||
| 12 | NC | NC | |||
| 13 | D3 | Channel D3 | IN | TTL | 3 |
| 14 | /RESET | Active-low reset | IN | TTL |
⊕Ordering Information
| GaPho-OSW-MEMS-1xN- A- B-C-D-E-F-G | |||||||
| N | A | B | C | D | E | F | G |
| Output | Fiber Type | Package Type | Test Wavelength | Tube Type | Fiber Length | Connector | Interface |
| Number | (Include connector) | ||||||
| 4:04 | SM: SM, 9/125 | A:Type A | 850:850±20nm | 25:250um(Type A) | 05: 0.5m±5cm | OO:None | MS1:TTL/RS232 |
| 8:08 | M5:MM,50/125 | B:Type B | 1300:1300±20nm | 90:900um(Type B) | 10: 1.0m±5cm | FP: FC/PC | MS2:TTL/ I2C |
| 12:12 | M6:MM,62.5/125 | 8513:850&1300±20nm | X: Others | 15: 1.5m±5cm | FA: FC/APC | MS3:TTL/I2C/ | |
| 16:16 | X: Others | 1310: 1310±20nm | X: Others | SP: SC/PC | RS232 | ||
| 20:20 | 1550: 1550±20nm | SA: SC/APC | |||||
| 24:24:00 | 1315:1310&1550±20nm | STP: ST/PC | |||||
| 1625:1625±20nm | LP: LC/PC | ||||||
| X:Others | LA: LC/APC | ||||||
| X: Others | |||||||
