350T C Frame High Pressure Steel Wire Rope Pressing Machine

Add to Basket Share to :

Price

US$ 15000

Min Order Quantity1set / set
Supply Ability15 sets per month
Porttianjin
Delivery Lead Time20days

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Baoding Qitong Rigging Equipment Co.,Ltd
Membership Free member
Registration Date2014.10.25
Country/RegionChina
CityBaoding
Contact Echo Fan(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Echo Fan

Baoding Qitong Rigging Equipment Co.,Ltd

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Q T C
- Model Number YT300C
- Place of Origin China
- max swage 6-28mm
- muti swage 32mm
- voltage 380V
- power 4KW
- frequency 50Hz
- Related Keywords wire rope press machine, pressing machine, machine, wire rope

Description by Manufacturer

350T C Frame High Pressure Steel Wire Rope Pressing Machine

Machine model	YT50	YT150	YT350			YT600		YT1000	YT1500	YT3000	YT5000
Type	C	C	C	H		C	H	H	H	H	H
Max,swa ge	8mm	16mm	28mm			36mm		48mm	60mm	105mm	140mm
Multi –swage	10mm	20mm	32mm			40mm		52mm	65mm	120mm	160mm
Voltage	380V
Frequency	50Hz
Power	4kw	4kw	4kw			7.5kw		4kw×2	7.5kw×2	7.5kw×2	7.5kw×4
Capacity	500kn	1500kN	3500kN			6000kN		10000kN	15000kN	30000kN	50000kN
Oil pressure	63Mpa/7Mpa							63Mpa/12Mpa		76Mpa/12Mpa	63Mpa/12Mpa
Piston working stroke	25mm	50mm	90mm			120mm		100mm	150mm	240mm	370mm
Upstroke velocity	20mm/s	35mm/s	28mm/s			25mm/s		20mm/s	20mm/s	23mm/s	23mm/s
High	1200mm	1400mm	1550mm		1500mm	1750mm	1600mm	2300mm	2650mm	3400mm	4300mm
Width	800mm	530mm	650mm		635mm	680mm	635mm	1050mm	1050mm	990mm	1270mm
Length	1200mm	900mm	1500mm		1500mm	1690mm	1500mm	1530mm	2030mm	2000mm	2440mm
Weight	240kg	≈400kg	≈1800kg		≈2200kg	≈3600kg	≈2800kg	≈5100kg	≈6500kg	≈ 18000kg	≈ 36000kg

The product advantages:

♦The body is cast from high strength alloy steel and undergoes instrument detection, so the quality is guaranteed

♦It adopts high and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.

♦The die is made of high quality die steel and undergoes high temperature, quenching, tempering and other processes, becoming sturdy and durable.

♦The body adopts C-type design, making the operation simpler and more convenient.

♦It follows microcomputer intelligent control to control equipment automatic unload according to the pressing force required by the wire rope, making the operation more user-friendly.

350T C Frame High Pressure Steel Wire Rope Pressing Machine

The Production Flow

The Press Sample

Certificates

- TUV 16803026001

Price

Price Condition FOB
Price USD 15000 / set

Packaging & Shipping

- Packinginner: film wrapped outside:wooden case
- Package Weight 1800 ( Kilograms )
- Delivery Lead Time20days
- Minimum Order1set
- Supply Ability15 sets per month
- Delivery Porttianjin

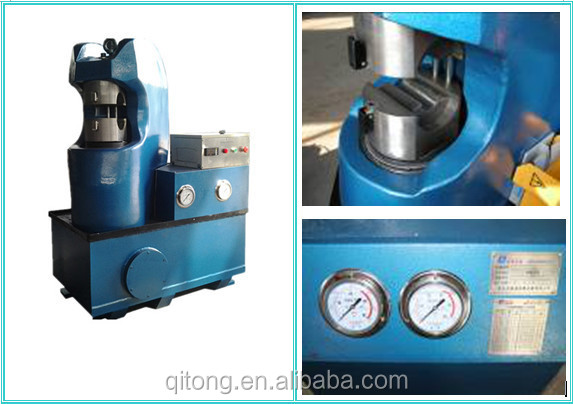

Product Image
