Overview

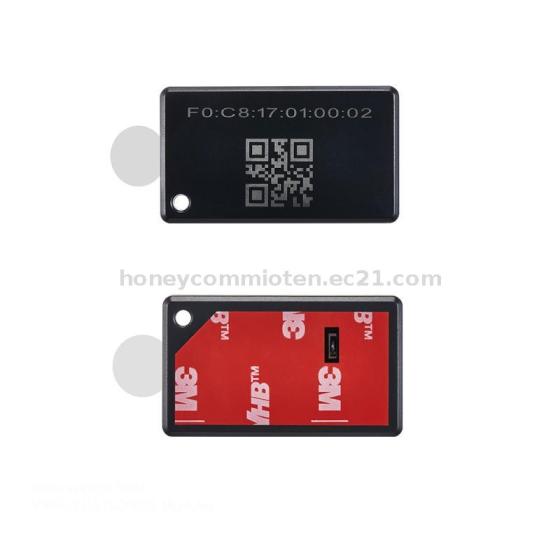

HCBB07 is a Bluetooth Beacon tag based on Bluetooth low energy technology . There are standard type (excluding anti-tamper function) HCBB07, anti-tamper type HCBB07-K, and anti-tamper + accelerometer sensor type HCBB07-KA. HCBB07 can be used with the Bluetooth gateway of HoneyComm IoT Technology(Shenzhen)Co.,Ltd.
The product is widely used in asset tracking management , and can also be used as a Bluetooth badge to manage personnel . HCBB07 series products adopt low-power Bluetooth technology, owns low power consumption, long use time, small product size, and can be fixed on the asset surface with 3M glue. HCBB07_K has a flexible button anti-tampering function, which can ensure the safety of assets. Once the Bluetooth tag is removed, the flexible button of Bluetooth tag HCBB07_K or HCBBB07_KA will immediately broadcast a removal alarm signal . HCBB07-KA integrates a three-axis accelerometer sensor, which can determine whether assets or personnel are in motion.
BLE Tag Highlights of Features
▶ Replaceable Coin battery
▶ It has different product forms such as standard ibeacon, anti-tampering, anti-tampering + accelerometer sensor etc.
▶ Broadcasting distance up to 70 meters ( at 0dBm broadcast )
▶ Beacon parameters can be flexibly configured through the our mobile APP(HC Connect) ( when the broadcast interval is less than 1s )
▶ Support BLE 4.2 protocol
▶ Ultra-low power consumption, standby time up to 3 years ( 0dBm transmit power, 10s broadcast interval )
▶ Small Size: 25*44*5. 7mm
▶ Easy installation: 3M double-sided adhesive and wearable are available
|
physical properties |
||
|
model |
HCBB07 : standard ibeacon tag HCBB07_K : anti-tamper flexible button HCBB07_KA : anti-tamper flexible button + 3-axis accelerometer sensor |
|
|
shell material |
ABS |
|
|
shell color |
Black for tamper-proof version as default , other colors can be customized (batch order not less than 3K) |
|
|
Dimensions |
25*44*5. 7 mm ( without 3M glue, the thickness is 5.8mm with 3M glue ) |
|
|
battery model |
CR2032, 225mAh ( replaceable battery ) |
|
|
supply voltage |
DC 3V |
|
|
installation method |
3M double-sided Glue |
|
|
Specifications |
||
|
communication method |
BLE 4.2 |
|
|
Operating mode |
Broadcasting data |
|
|
transmit power |
-30~+4dB, default 0dB |
|
|
broadcast interval |
100ms~10s, default 3s |
|
|
working frequency |
2400MHz-2483.5MHz |
|
|
Transmission distance |
The open limit transmission distance is 70 meters (0dBm) |
|
|
safety |
Support password connection ( when the broadcast interval is less than 1s ) and non-connectable mode, anti-malicious connection function |
|
|
System Requirement |
IOS7.0 and above, Android 4.3 and above |
|
|
electrical characteristics |
||
|
Quiescent Current |
<=3uA |
|
|
peak current |
7 mA |
|
|
average current |
<7 uA (0dB/3s) <3 uA (0dB/10s) Remarks: Depending on the software and firmware, whether there is a response packet (with a broadcast Bluetooth name), whether it can be connected, and the current are slightly different. |
|
|
using electric |
CR2032 (replaceable battery) |
|
|
battery capacity |
225mAh |
|
|
Battery Lifetime |
3 years (0dB/10s) |
|
|
other |
||
|
use environment |
Working temperature: -20℃~+ 70 ℃ |
|
|
Storage temperature: -20℃~+ 70 ℃ |
||
|
Working humidity: 10%~90% (non-condensing state) |
||
|
Storage humidity: 5%~90% (non-condensing state) |
||
