40GBASE-SR Bi-Directional QSFP+ 850/900nm 100m DOM LC MMF Optical Transceiver Module

Add to Basket Share to :

Price

1 - 9
US$ 320
10 - 99
US$ 300
≥100
US$ 290

Min Order Quantity1 Piece
Supply Ability5000 Set per Month
PortShenzhen
Delivery Lead Time7 days for ready goods
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Guangzhou Ruid Ele-tech CO., LTD
Membership Free member
Registration Date2022.08.05
Country/RegionChina
CityGuangzhou
Contact James Bob(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.James Bob

Guangzhou Ruid Ele-tech CO., LTD

* Buying Product

Category : Fiber Optic Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords 40G Bidi QSFP Transceiver, 40G SR BD, Qsfp Bidi Transceiver, Qsfp 40g Bidi

Description by Manufacturer

40GBASE-SR Bi-Directional QSFP28 850/900nm 100m DDM LC MMF Optical Transceiver Module

The QSFP-40G-SRBD is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.

The QSFP-40G-SRBD transceiver internally multiplexes an XLPPI 4x10G interface into two 20Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 40Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 40GbE application.

Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported. These modules are de- signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP+ type edge connector. The optical interface uses a conventional LC duplex connector. This module incorporates proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service

Price

Price US$ 290 ~ 320 / Piece

Packaging & Shipping

- Delivery Lead Time7 days for ready goods
- Minimum Order 1 Piece
- Supply Ability5000 Set per Month
- Total quantity in Stock151 – 300
- Delivery PortShenzhen
- Shipping Career

Product Image

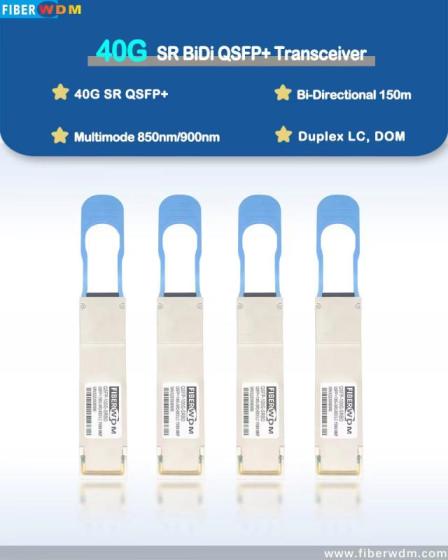

40GBASE-SR Bi-Directional QSFP+ 850/900nm 100m DOM LC MMF Optical Transceiver Module
