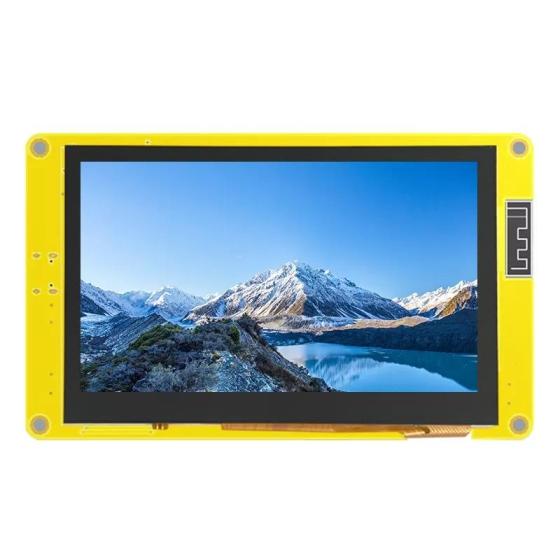

480*270 ESP32 Display Module HMI Arduino LVGL 4.3 Inch Capacitive Touch Screen RGB

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Jingcai Intelligent Co., Ltd.
Membership Free member
Registration Date2023.02.27
Country/RegionChina
CityShenzhen
Contact Mr. zhang(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords ESP32 Display Module

Description by Manufacturer

Product Description

4.3 inch Capacitive Touch 480*270 TN ESP32-S3 HMI Arduino LVGL WIFI&Bluetooth Smart Display Screen RGB LCD TFT Module

ESP32 development board-8M PSRAM 16M Flash, standard 4.3-inch TFT screen and Without touch or Resistor touch or Capacitive touch , support one-key automatic download, provide LVGL demo and arduino examples

ESP32-S3-WROOM-1

CPU and OnChip Memory
• ESP32-S3 series of SoCs embedded, Xtensa ®
dual-core 32-bit LX7 microprocessor, up to 240
MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• Up to 8 MB PSRAM
WiFi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 µs guard interval support
• Center frequency range of operating channel:
2412 ~ 2484 MHz
Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• Internal co-existence mechanism between Wi-Fi
and Bluetooth to share the same antenna

model:ESP32-4827S043C

Size:4.3 inch

Resolution:480*272

Touch mode:Resistive touch

Viewing angle:TN

Interface mode:16bit RGB

Operating temperature:-20°-70°

Weight:160g

External dimensions:123.0*74.0mm

Display size:95.04*53.86mm

Operating voltage:5V

Backlight parameters:6 in parallel and 2 in series

Pin definition:type-c

Introduction

The ESP32 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.

ESP32-S3-wroom-1 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX7 MCU. One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS.

In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.

Product description

This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*272 or 800*480, resistive touch or Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface, this module supports development in arduino IDE, ESP IDE, Micropython and Mixly.

Features

●4.3-inch color screen, support 16 BIT RGB 65K color display, display rich colors·

●480X272 resolution

●The sample program has been programmed in the factory and can be plugged in

●With TF card slot for easy expansion storage

●Provide arduino library functions and sample programs to facilitate rapid secondary development

●Support one-click download program·

●Military-grade process standards, long-term stable work·

480*270 ESP32 Display Module HMI Arduino LVGL 4.3 Inch Capacitive Touch Screen RGB 0

480*270 ESP32 Display Module HMI Arduino LVGL 4.3 Inch Capacitive Touch Screen RGB 1

480*270 ESP32 Display Module HMI Arduino LVGL 4.3 Inch Capacitive Touch Screen RGB 2

480*270 ESP32 Display Module HMI Arduino LVGL 4.3 Inch Capacitive Touch Screen RGB 4

Product Image

480*270 ESP32 Display Module HMI Arduino LVGL 4.3 Inch Capacitive Touch Screen RGB
