Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords 4g module

Description by Manufacturer

N75 is an LTE Cat.4 4g module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.11 LTE technology, it provides 150 Mbps downlink and 50 Mbps uplink data rates. N75 supports location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more reliable positioning functions. With integration of network protocols, industry-standard interfaces, and abundant functions, N75 is an optimal option for energy metering, Internet of Vehicles, industrial router, video surveillance, environmental monitoring, and other industry applications.

Product Features

OpenLinux

All NA bands

Pin2Pin N720

GNSS

-40℃ to 85℃

Specifications

Supply voltage	3.3 V to 4.3 V, TYP.: 3.8 V
Dimensions	30.0 mm x 28.0 mm x 2.8 mm
Package	100-pin LGA
Storage	Optional (ROM: 2 Gb / 1 Gb; RAM: 1 Gb)
Interface	PCM/I2S
	ADC x 2
	I2C x 1 (Open)
	SPI x 1 (Open)
	UART x 2
	USB 2.0
	PWRKEY_N
	RESET_N
	DTR (sleep mode control)
	NET_LIGHT
	USIM (1.8 V / 3.0 V)
	SGMII (Open)
	SDIO 3.0 (Open)
	SD Card (Open)
GNSS	GPS/BDS/GLONASS
Frequency bands	NA:
	LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26/B66/B71
	UMTS: B2/B4/B5
	GPRS\|EDGE: B2/B5

	EA (EMEA/SEA):
	LTE FDD: B1/B3/B5/B7/B8/B20/B28
	LTE TDD: B38/B40/B41
	UMTS: B1/B5/B8
	GSM\|GPRS: 900/1800 MHz

	LA:
	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B10/B28/B66
	LTE TDD: B38/B40/B41
	UMTS: B1/B2/B4/B5/B8
	GSM/GPRS: 850/900/1800/1900 MHz
Protocol	TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ
ESD	VBAT: ±8 kV / ±15 kV
	GND: ±8 kV / ±15 kV
	ANT: ±8 kV / ±15 kV
	Other: ±4 kV / ±8 kV
Region	North America

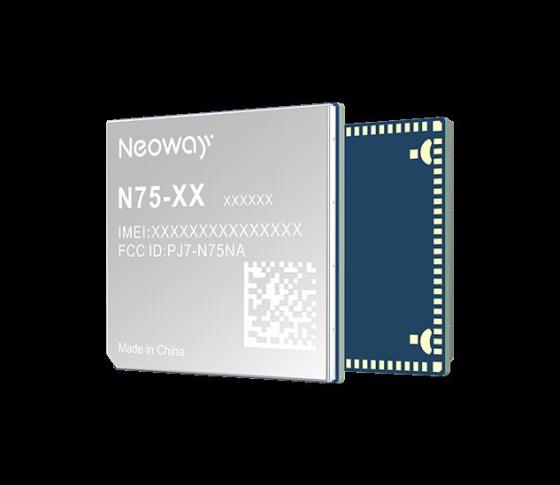

Product Image
