Description by Manufacturer

PU Roller Pipe Welding Rotator Self Aligning Turning Roller Rotation Speed Adjustable

Self adjusting pipe rotator function:
It is mainly used in switching position of cylinder work piece, to get the ideal welding position and speed.
It usually work matching with the equipments, like manipulator and welding machines to form the auto-welding system.
It also can be used in manual welding, assembling, polishing and crack-defection, etc.

The HGZ type self-aligning rotator are widely used in industries as boiler, pressure vessel, chemical petroleum, construction machinery, for inner&outer longitudinal welding and circumferential welding of various seams on tanks. It has merits of advanced technology, reliable quality and simple operation and can improve the quality of jointing effectively.

**Main Technical Parameter of Self-aligning rotator**
Model	Max. load	Workpieces dia.	Roller material	Roller dia.	Roller width	Rolling speed	Roller motor
HGZ-5	5,000kg	Ø250-Ø2,500mm	Steel coated with PU	Ø250mm	100mm	6-60m/h	0.75kw
HGZ-10	10,000kg	Ø320-Ø3,200mm	Steel coated with PU	Ø300mm	120mm	6-60m/h	1.1kw
HGZ-20	20,000kg	Ø500-Ø3,800mm	Steel coated with PU	Ø350mm	150mm	6-60m/h	1.5kw
HGZ-40	40,000kg	Ø600-Ø4,500mm	Steel coated with PU	Ø400mm	160mm	6-60m/h	3kw

Structure and characteristic

HGZ type Self-aligning rotator consists of power roll, idler roll and electric control system,etc.
The base of the rotator use the plates welded together and stress by annealing. It ensure the strength of the base and after a long time to overcome the stress generated by the welding deformation.

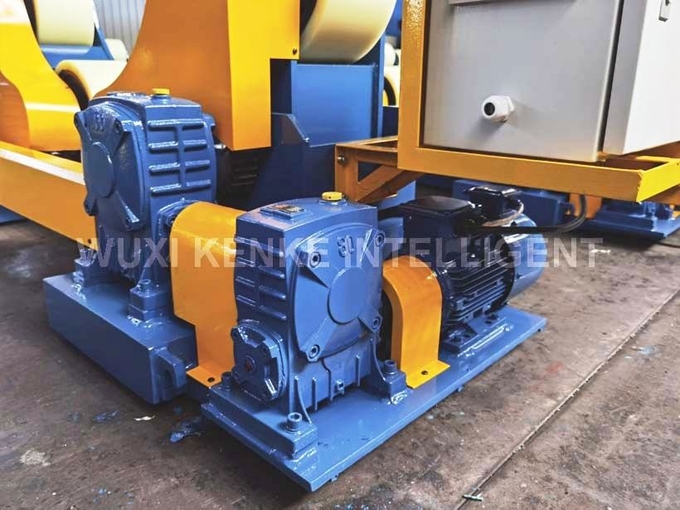

The power rotator has a set of driving system which mainly consists of AC motor , reducer, coupling and connecting shaft. Through the AC motor and two sets of worm gear reducers working together, which ensures to make the rollers run.

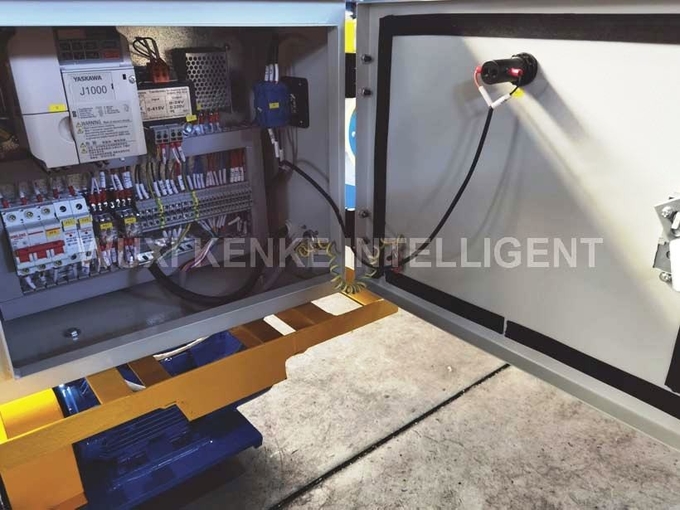

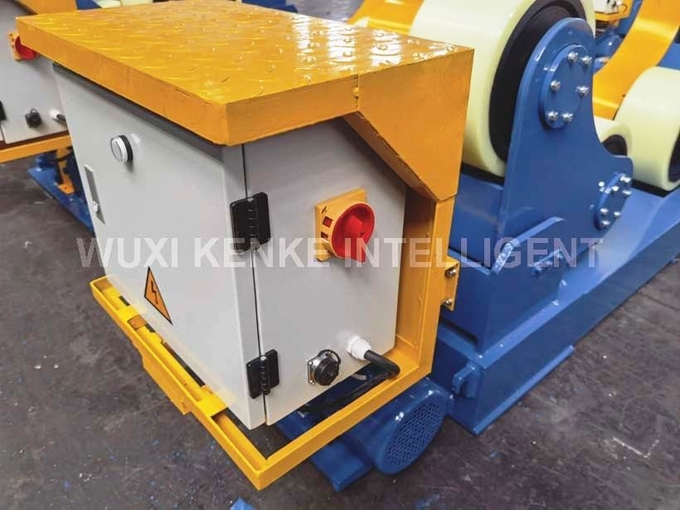

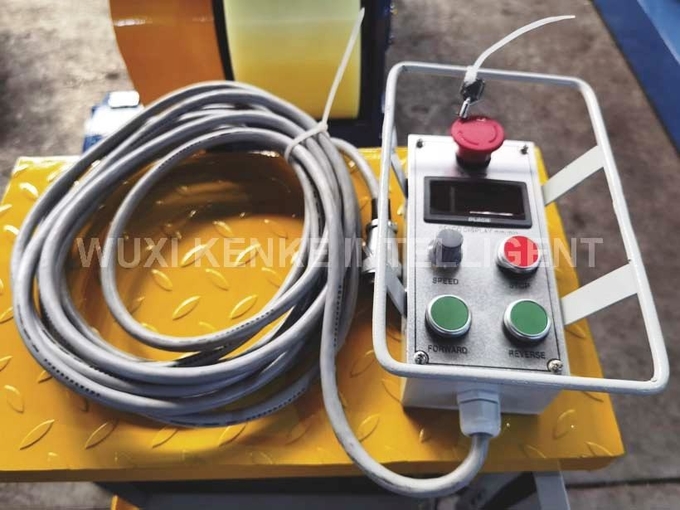

The electric control system consists of the electric control box and remote control box.
The electric control box consists of the inverter, contactor, button, etc. The mainly electric components are using the famous brands, such as Siemens, ABB and so on, which are which are reliable performance and easy maintenance. It controls brake of the motor and meet the requirements of the machanism action. And it can control and protect the motor. The frequency conversion system uses the YASKAWA system, which is low-noise, high-performance, multi-function transducer, no torque ripple. And other characteristics of the control signals using analog control, speed shows is using high-precision digital display meter, the overall stability of high anti-jamming capability.

5 Ton Automatic Pipe Self Aligned Welding Rotator Manufacturers For Pressure Vessel 0

Competitive Advantage

● Inverter and Main electric elements are Siemens/Schneider or equal brand.

● Motor is UK brand Invertek.

● VFD rotary speed control, improving the reliability of operation.

● Steel or PU roller which can ensure a long time using (at least 2 years).

● With lubrication system.

● Accept testing before delivery.

● Accept special design and custom.

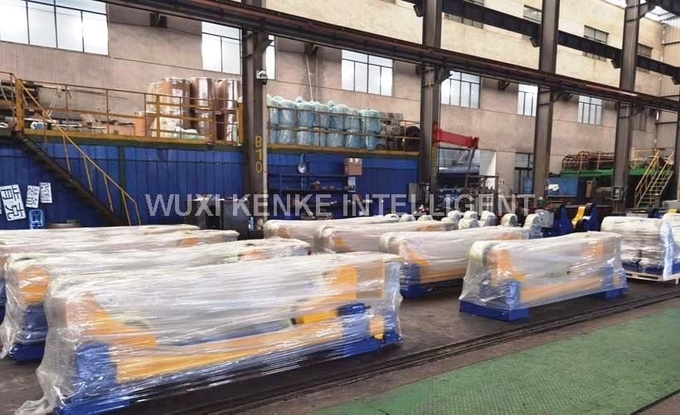

Packing and delivery

5 Ton Automatic Pipe Self Aligned Welding Rotator Manufacturers For Pressure Vessel 4

Product Image
