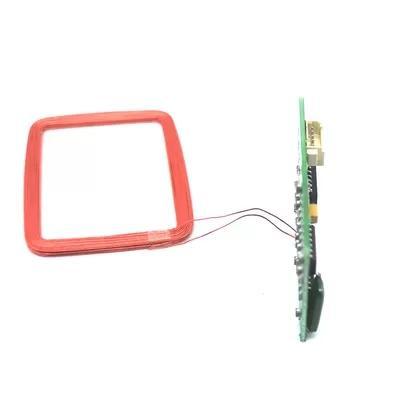

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Suoma Tech Co., Ltd
Membership Free member
Registration Date2023.11.22
Country/RegionChina
CityShenzhen
Contact Miss. Kerry Chen(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Miss. Kerry Chen

Shenzhen Suoma Tech Co., Ltd

* Buying Product

Category : Access Control Card Reader

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords 125KHZ RFID Reader Module

Description by Manufacturer

5V RF Low Frequency TTL Level ID Card EM RFID Reader Board RFID 125khz Reader Module

Suoma is a cutting-edge enterprise with an in-house R&D team. Our core technical and sales staff are seasoned professionals with over a decade of experience in the RFID industry.

At Suoma, we specialize in RFID embedded modules. Through extensive research and development, we have developed a diverse range of RFID modules that cater to various products and projects. Whether you require the most advanced solution, the highest quality, or the most cost-effective option, we offer a variety of levels and choices to meet your specific needs.

Our standard module offerings include the 125kHz low frequency series, the 13.56MHz high frequency series, and the 860-960MHz UHF series.

Instruction:

IS610 is a 125KHz read-only module for EM4100/TK4100 125KHz cards, which can read and output CSN card number.

It has option of Wiegand26, RS232 and TTL output format.

Features:

125KHz Operating Frequency

Available to be embedded into individual items

Read CSN card number only

Different output formats

Module NO.:

Module NO.	Interface
IS610-W	WG26
IS610-T	TTL
IS610-S	RS232

Parameter:

IS610
Frequency	125KHz
Supporting Card	EM4100/TK4200/EM4200 Card
Interface	Wiegand26, TTL, RS232
Power Supply	5V & 3.3V
Card Reading Distance	>8cm(Depending on label size and surroundings)
Operating Temperature	-10℃~ 70℃
Antenna	External , Variety of optional specifications
Dimension	39mm 19mm 9mm

PIN Definition:

PIN	PIN NO.	Wiegand26	RS232/TTL
P1	1	NC	NC
	2	DATA 0	RXD
	3	DATA 1	TXD
	4	GND	GND
	5	+5VDC	+5VDC
P2	1	ANTENNA-1	ANT-1
	2	ANTENNA-2	ANT-2
P3	1	LED-	LED-
	2	LED+	LED+
	3	NC	NC

PIN Definition Diagram:

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 0

Popular antenna size options:(customizable)

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 1

Application:

Table PC

Lift control

POS terminal

Parking system

Access control

Handheld terminal

Attendance application

Recreational Machine

Barrier gate/rapid-open gate

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 2

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 3

Product Image

Company Profile

About Shenzhen Suoma Tech Co., Ltd

Membership Free member
Registration Date2023.11.22
Country/RegionChina
CityShenzhen
Contact Miss. Kerry Chen(Ms.)

Suoma is a high-tech enterprise with independent R&D capability. All the core technical personnel and sales

personnel are practitioners with more than ten years experience in RFID industry.

Suoma focuses on RFID embedded modules. After a long period of R&D and innovation, we has a series of

RFID modules applied to different products and projects, from the best solution and the most stable quality to

the lowest cost and the simplest function, various levels and options, which can meet the needs of most customers.

Our standard module includes 125kHz low frequency series, 13.56MHz high frequency series and 860-960mhz

UHF series.

In addition to a series of standard modules, the other advantage of Suoma is that it can customize for customers.

From the physical structure of hardware to firmware code, we can completely customize according to customer

requirements, so as to ensure that under the premise of 100% meeting the requirements of customer
