Description by Manufacturer

635nm 650nm 658nm 660nm 670nm 685nm Red Line Laser Modules with 1mW 5mW 10mW 30mW 50mW 100mW 200mW

Our Laser module is make up with high precision laser diode and APC, ACC drive circuit and coating optical glass lenses with high performance. With high reliability, stability, strong anti-interference, good consistency, long service life and so on.

Worldhawk offers a range of lasers including a broad selection of Laser Diode Modules in colors such as red, green, blue, or violet.

These laser module can be used in Industrial marking devices, laser medical equipment, stage lighting and laser targeting devices, Machine vision, Laser Alignment, Laser Positioning Surveying Instrument, Laser Sight and so on.

Wavelength(color):

-Blue-violet (blue): 405nm, 450nm

-Green: 520nm, 532nm

-Red: 635nm, 650nm, 658nm, 660nm, 670nm,685nm

-IR(infrared): 780nm, 808nm, 830nm, 850nm,

905nm, 940nm, 980nm, 1064nm

Beam model: Cross line, Straight line, Dot(Point)

Output Power: 1mW ~ 200mW

Certification: CE/ Rohs.

Laser beam is a super-bright light with large-density energy, so you should be careful to avoid injury or accident during operation.Eyes should never been exposed to the laser beam or its reflection.Laser beam should never be pointed at flammable substances such as alcohol, gasoline, etc.

--Product Show

--Specification (Red Line Laser Module)

Wavelength (nm)	635nm 650nm 658nm 670nm 685nm
Output Power	1mW 2mW 5mW 10mW 20mW 50mW 100mW 150mW 200mW (Optional)
Operating voltage	DC 3V, 4.5V, 5V, 9V, 12V (optional)
Fan Angle	10° 30°,45°,60°,90° (10°~ 120° )
Curvature	≤1mm @5m
line width	The smallest line width is 0.5mm on the 50cm distance The smallest line width is 0.8mm on the 1.5m distance The smallest line width is 2mm on the 6m distance The smallest line width is 3.5mm on the 10m distance
Laser Class	Ⅱ Ⅲa Ⅲb
Beam mode	Red Line Laser Modules
Operating Temperature	-10°C~70°C
Storage Temperature	-40°C~80°C
Dimentions	923mm, 1030mm, 1240mm, 1670mm, 22110mm, 26110mm or as request
MTTF	Fixed focus, the expected lifetime is more than 10000 hours
Accessories (optional)	Special power source and Bracket
Packaging	Anti Static Bag

-Note:

1) Line laser module have two kinds, one is powell lens laser module and the other is traditional lens line laser module, Powell lens line laser module has more higher quality and stability. When you choose the powell lens line laser module, the fan angle for powell lens is must need.

2)Working distance: Customized according to the customers. Or provide the adjustable laser module when there is no constant working distance.

Price

Price US$ 25 / Piece

Packaging & Shipping

- Packing20pcs per box
- Packaging Size17 x 11 x 13 ( Centimeters)
- Delivery Lead Time15 workdays
- Minimum Order 5 Piece
- Supply Ability3000pcs per month
- Total quantity in Stock151 – 300
- HS Code9013200099
- Shipping Career

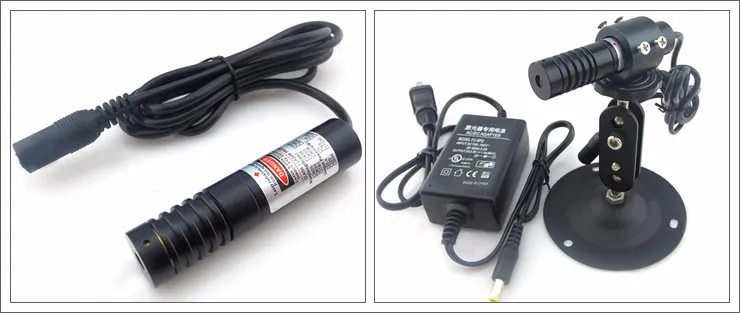

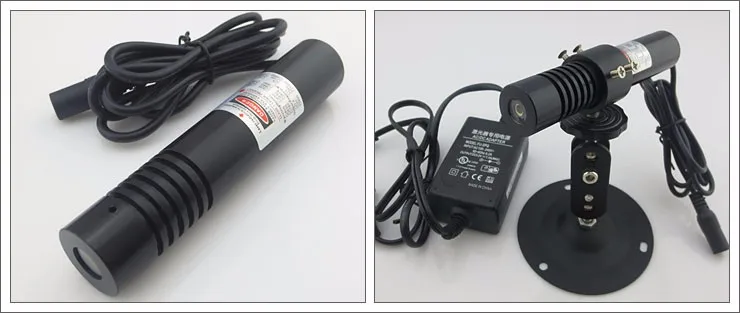

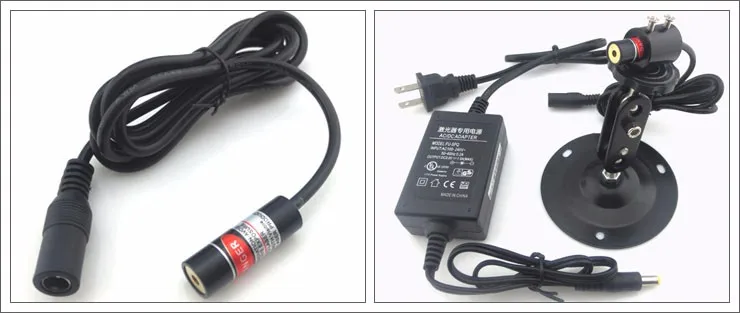

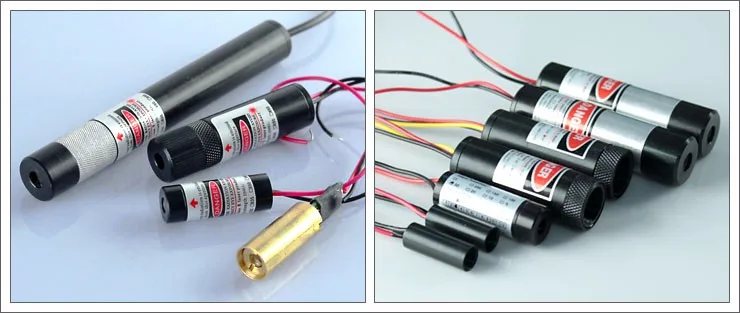

Product Image

635nm 650nm 658nm 660nm 670nm 685nm Red Line Laser Modules with 1mW 5mW 10mW 30mW 50mW 100mW 200mW

635nm 650nm 658nm 660nm 670nm 685nm Red Line Laser Modules with 1mW 5mW 10mW 30mW 50mW 100mW 200mW 2

635nm 650nm 658nm 660nm 670nm 685nm Red Line Laser Modules with 1mW 5mW 10mW 30mW 50mW 100mW 200mW 3

635nm 650nm 658nm 660nm 670nm 685nm Red Line Laser Modules with 1mW 5mW 10mW 30mW 50mW 100mW 200mW 4

635nm 650nm 658nm 660nm 670nm 685nm Red Line Laser Modules with 1mW 5mW 10mW 30mW 50mW 100mW 200mW 5
