680 24 Vol Array Warehouse 550watts 55watt 660 520 Per Watt Solar Pv Sales

Add to Basket Share to :

Price

US$ 0.12

Min Order Quantity10000 Watt
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Karstsolar Technology Shenzhen Co., Ltd
Membership Free member
Registration Date2024.01.26
Country/RegionChina
CityShenzhen
Contact Sarah Zeng(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Sarah Zeng

Karstsolar Technology Shenzhen Co., Ltd

* Buying Product

Category : Solar Cells, Solar Panel

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Karstsolar
- Model Number KSM-645-675/132-S4
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color White
- Material Monocrystalline Silicon
- Max. Power 675W
- Number of Cells 132
- Size 210mm

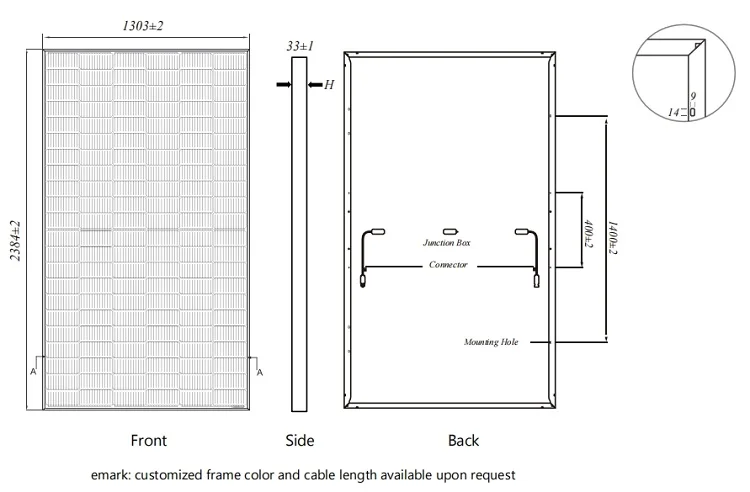

- Panel Dimensions 2384*1303*33mm
- Weight 35.7kg
- x-frame 35mm(1.38 inches) Anodized Aluminium Alloy
- Cable Length 300mm(+)/300mm(-)
- Cable Cross Section Size 4mm2
- Junction Box IP67
- Connector 3 diodes
- Related Keywords uk solar panels, solar panel, solar panels cost, roof solar panels, solar battery

Description by Manufacturer

Product Overviews

680 24 Vol Array Warehouse 550watts 55watt 545 Watts 660 520 Watt Per Watt Solar Pv Sales

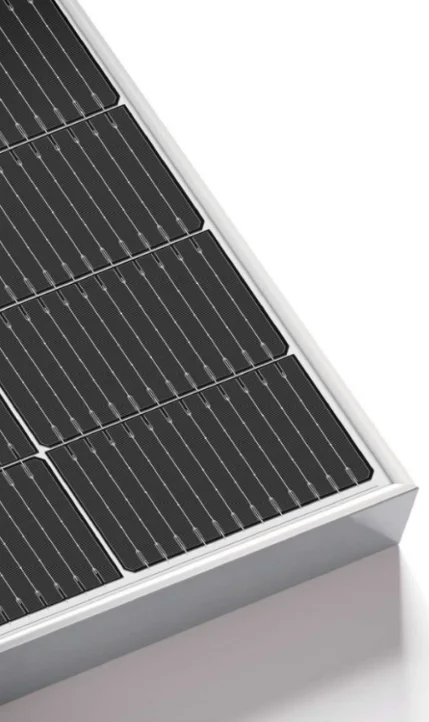

210mm Half-Cell High Efficiency PV Module

High Power and High Efficiency

ldeal choice for large scale ground installation.

PID Resistance

Excellent Anti-PID performance guarantee limited power degradation for mass production.(Potential lnduced Degradation) under the test conditions.

Mechanical Performance

Special cutting and soldering technology leads to low hotspot risk.

Low-light Performance

Advanced glass and cell surface textured design ensure

excellent performance in low-light environment.

Severe Weather Resilience

Certified to withstand:Wind load(2400 pascal)

and snow load(5400 pascal).

12-year Warranty for Materials and Processing

25-year Warranty for Extra Linear Power Output

680 24 Vol Array Warehouse 550watts 55watt 545 Watts 660 520 Watt Per Watt Solar Pv Sales

Module Type	KSM-645 /132-S4		KSM-650 /132-S4		KSM-655 /132-S4		KSM-660 /132-S4		KSM-665 /132-S4		KSM-670 /132-S4		KSM-675 /132-S4
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power(Pmax/W)	645	488	650	492	655	496	660	500	665	504	670	508	675	511
Open Circuit Voltage(Voc/V)	45.30	42.70	45.30	42.70	45.50	42.89	45.70	43.08	45.90	43.26	46.10	43.45	46.30	43.64
Short Circuit Current(Isc/A)	18.31	14.75	18.44	14.86	18.48	14.89	18.53	14.93	18.57	14.96	18.62	15.00	18.67	15.04
Voltage at Maximum Power(Vmp/V)	37.50	34.86	37.40	34.96	37.60	35.15	37.80	35.33	38.00	35.52	38.20	35.69	38.40	35.86
Current at Maximum Power(Imp/A)	17.23	13.99	17.39	14.09	17.43	14.12	17.47	14.16	17.51	14.19	17.55	14.22	17.59	14.26
Module Efficiency(%)	20.80%		20.90%		21.10%		21.20%		21.40%		21.60%		21.70%

Price

Price US$ 0.12 / Watt

Product Image

680 24 Vol Array Warehouse 550watts 55watt 660 520 Per Watt Solar Pv Sales

Uk Solar Panels Related Products

Main Export Markets

- Karstsolar Technology Shenzhen Co., Ltd is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Karstsolar Technology Shenzhen Co., Ltd

Membership Free member
Registration Date2024.01.26
Country/RegionChina
CityShenzhen
Contact Sarah Zeng(Ms.)

KARSTSOLAR was established in 2009 with the headquarters in Hong Kong and factories in mainland China. With the development of more than 10 years, we have become to a global leading solution provider for solar energy system. The manufacturing site of KARSTSOLAR locates in Jiangmen city, Guangdong province of China, which 30,000 square meters workshop and more than 200 workers. The factory has 2 automation solar panel production lines, with annual production capacity of 5GW. Our factory are qualified with ISO 9001 quality managment system, and as a BSCI member, we perform social responsibility in compliance with the BSCI code of conduct. Our solar panels have been tested and certified with CE, ROHS, FCC and other certifications.
