70-100pcs/Min Toothpaste Cartoning Machine Tube Horizontal Cartoner Machine

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Wuxi Sici Auto Co., Ltd.
Membership Free member
Registration Date2022.10.24
Country/RegionChina
CityWuxi
Contact SICI AUTO(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Cartoner Packaging Machin

Description by Manufacturer

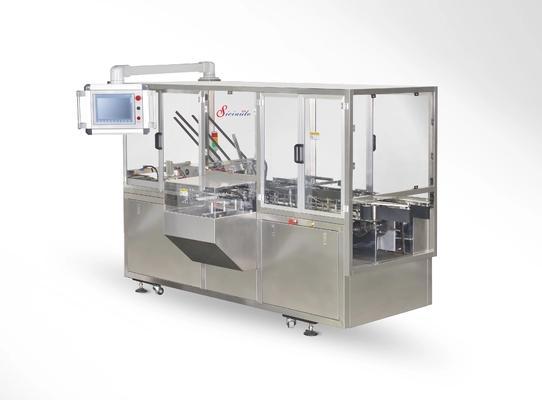

Horizontal Toothpaste Cartoner Packaging Machine 70-100pcs/min for Tube

Product Introduction of Cartoning Machine

XQ-ZH100 horizontal toothpaste cartoner packaging machine is a general cartoning machine, it can be used for skin care, cosmetics, food, medical & health, commodity. The carton sealing type also can be customized according to different requirements.

A carton machine will pick up a single piece from a stack of fold carton and then get it to stand up straight, or erect. The machine will fill it with a product or a number of products horizontally through an end that is open, and then close it by tucking an end flap of the carton or putting on glue or adhesive.

Technical Parameter

Model		XQ-ZH100
Box	Quality Requirement	250-350g/m²
	Dimension Range	(60-220)(15-160)(15-85)mm
Production Capacity		70-100pcs / min
Total Power		1.5kw
Working Voltage		220V/380V 50Hz
Instruction Leaflet Size	Quality Requirement	60-80g/m²
	Unfolded Dimension	(80-250)*(80-170)mm
	Folded Dimension	(80-25-)*(20-40)mm
Compressed Air	Working Pressure	≥0.6Mpa
	Air Consumption	20m³/h
Machine Weight		1300kg
Machine Dimensions		350015001800mm

Machine Principle

70-100pcs/Min Toothpaste Cartoning Machine Tube Horizontal Cartoner Machine 0

Cartoning Machine Features

Model:XQ-ZH100 Horizontal toothpaste cartoner packaging machine

1. Folding manual paper and sending into the box, feeding, opening the box, pushing into the box, marking batch number, sealing the box, removing waste automatically. Compact and reasonable structure, easy to operate and adjust.

2. Using servo/stepper motor and touch screen, PLC to make man-machine interface display more clear, operation more simple, with higher degree of automation, more human.

3. Automatic photoelectric detection and tracking system is adopted to save packaging materials to the greatest extent.

4. The packaging range is large, easy to adjust, a variety of specifications can be quickly converted between sizes.

5. It is not necessary to replace the mold to replace the specification, only adjustment can be achieved.

6. The use of items into the box is not in place automatic stop box and the main drive motor overload protection device, more safe and reliable.

7. According to customer requirements, the use of upturned safety cover, easy to operate, beautiful appearance.

8. It can realize joint production with aluminium-plastic packaging machine, pillow packaging machine, 3d packaging machine, bottling line, filling machine, labeling machine, code spraying machine, online weighing machine and other production line lighting equipment.

9. According to the packaging requirements can design a variety of automatic feeding device and box system.

10. Hot melt glue machine can be selected according to the customer's requirements, which adopts hot melt glue spraying to seal the box and mechanical brush to seal the box.

11. Full intelligent touch screen, microcomputer control of the packaging process, easy to understand the operation of the control of mechanical equipment and production process, reliability, operation speed.

12. It's used 304 and 316 stainless steel body with higher durability.

70-100pcs/Min Toothpaste Cartoning Machine Tube Horizontal Cartoner Machine 1

70-100pcs/Min Toothpaste Cartoning Machine Tube Horizontal Cartoner Machine 2

70-100pcs/Min Toothpaste Cartoning Machine Tube Horizontal Cartoner Machine 3

Product Image

Company Profile

About Wuxi Sici Auto Co., Ltd.

Membership Free member
Registration Date2022.10.24
Country/RegionChina
CityWuxi
Contact SICI AUTO(Mr.)

Wuxi Sici Auto Co.,Ltd is a professional end-of-line packing equipment manufacturer, located in Wuxi city which close to Shanghai, we also have an branch office in Guangzhou. We are mainly focused on research and manufacture of automatic overwrapping machine, cartoning machine, case packer, shrink wrapping machine, labeling machine, carton erector, carton sealing machine, checkweigher, pillow type packing machine, strapping machine, robot palletizer, BOPP film etc., to provide you complete end-of-line packing solution.

Our machines are widely used for cosmetics, skin care, pharmacy, food, daily chemical and other industries, receiving customers all over the world. We have more than sixty employees, two professional foreign trade teams, eight senior engineers and many technicians. Welcome to visit our factory and looking forward to build long term business relationship with you!
