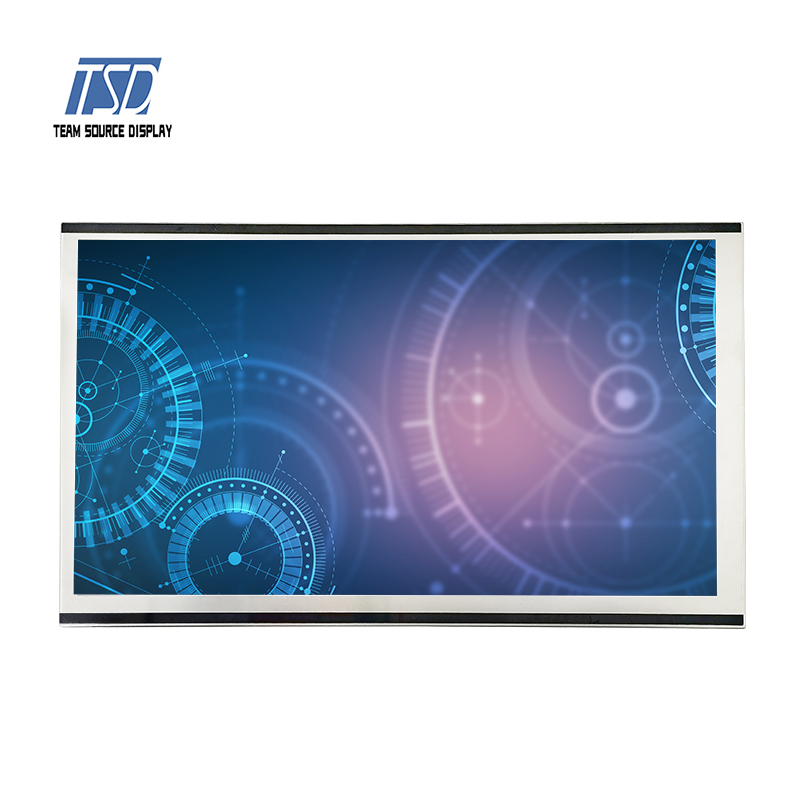

8 Inch LCD Panel 1280x720 Resolution Automotive Grade with LVDS Interface

Add to Basket Share to :

Price

US$ 25 ~ 27

Min Order Quantity1 Piece
PortHK
Delivery Lead Time7~35 days
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Team Source Display Technology Co., Ltd
Membership Free member
Registration Date2022.12.01
Country/RegionUnited States
Citydongguan
Contact Winnie Wei(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Winnie Wei

Shenzhen Team Source Display Technology Co., Ltd

* Buying Product

Category : LCD Modules

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name TSD
- Model Number TST080HDSH-21
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Black
- Type TFT
- Resolution 1280xRGBx720
- Outline Dimension 192.8*116.9mm
- Active Area 177.024 * 99.58mm
- Brightness 750 cd/m2
- Interface LVDS
- Viewing Angle All o'clock
- Operating Temperature -30~+85C
- Storage Temperature -40~+85C
- Related Keywords 8 inch LCD display

Description by Manufacturer

8 inch lcd panel 1280x720 resolution automotive grade with LVDS interface

TST080HDSH-21 is 8 inch lcd panel, 1280×720 resolution, it's automotive grade display, operating temperature is -30 ℃ to +85℃, storage temperature is -40℃ to +85℃, wide temperate range for automotive application. This 8 inch lcd panel is with high luminance 750 nits with LVDS interface, it's landscape display. Except for this, Team Source Display also have other resolution like 1024×600 resolution, and other display in portrait mode with 800×1280 resolution and 1200×1920 resolution. If you would like to get more details, just feel free to contact our sales.

Specification

LCD type	8 inch LCD panel
Part No.	TST080HDSH-21
Resolution	1280xRGBx720
Outline dimension	192.8x116.9x6.4mm
Active Area	177.024x99.58mm
Brightness	750 cd/m²
Interface	LVDS
Viewing Direction	All o'clock
Operating temperature	-30℃ to +85℃
Storage temperature	-40℃ to +85℃

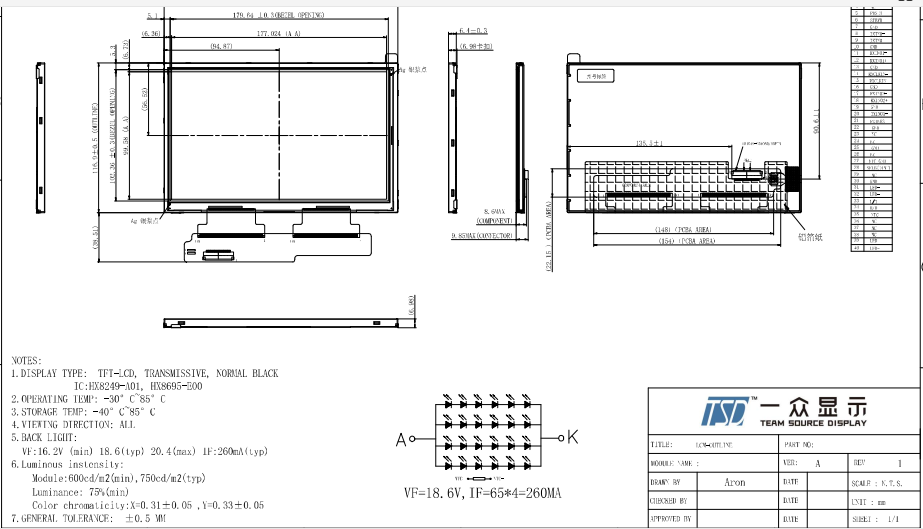

Drawing

Advantage

TEAM SOURCE DISPLAY is available to provide full ranges of LCD display from 0.96 inch to 21.5 inch, including this 8 inch LCD panel, also have the ability to provide all kinds of standard capacitive touch panel and make the customization of various capacitive touch screen basing on customers' needs.

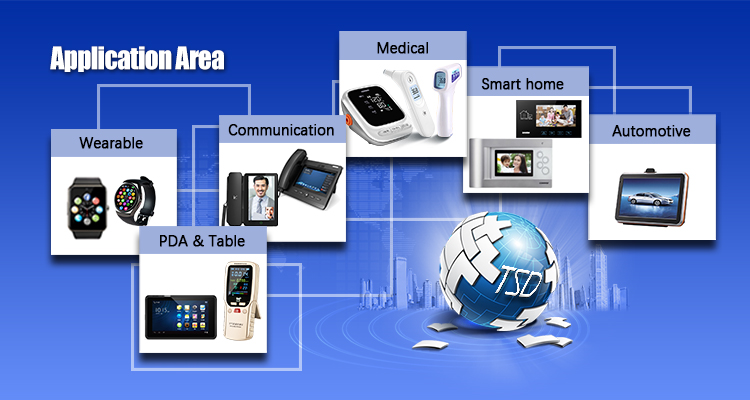

Application

Our 8 inch LCD panel is widely using in industrial, medical, communication, PDA&Table, Smart home, Automotive applications and many other fields. Our display rang from 0.96 inch to 21.5 inch, also manufacturing touch screen and monochrome LCD display. Our products are widely selling to all over the world.

Packing & Delivery

For each piece of 8 inch LCD panel, we will pack it in anti-static bag, and then pack it into blister tray or EPE foam

card slot in a certain quantity in one carton box. Each carton box will have inner and outbox boxes, so as to make sure

every LCD display will be packing well before shipping.

FAQ

Q: What does TSD have?

A: 1) TFT

Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77", 2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”, 14.6", 15", 18.5", 19", 21.5" TFT LCD display, etc.

Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2) CTP (Capacitive touch panel/PCAP/Projected touch screen)

Structure: G+G, G+F, G+F+F, P+G
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver IC: Focal Tech, Goodix, Atmel, ILITEK, Sitronix, EETI etc.

We have all series of standard touch screen and also available to make the customization with different size, shape, color, logo etc.

3) Passive

Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

We have the ability to make the customization of all kinds of custom LCD display.

Q: What's the difference between Industry and Automotive grade display?

1. Temperature requirement

For LCD display, there are normally operating temperature and storage temperature. If for industry temperature, the operating temperature is -20 to +70℃, but for automotive display, the operating temperature is -30 to +85℃ or more wider. As we can see, the temperate range of automotive display is more wider comparing with Industry grade display. This is because automotive display need to be used for a long time in the extreme environments compared to industrial display, so they need a wider temperature range, and the cost is normally higher.

2. Requirement for brightness and life time

Normally for Automotive display, the brightness will need more high, as well as the life time will be more longer, like 50000 or 70000 hours. But for industrial display, normally it's 30000 hours. From the comparison of those parameters, it can be conclused that the brightness and life time of automotive display are higher, this is becacuse the central control display of the car have always been working under direct sunlight, the display need to be highlighed to see the screen clearly, and the industrial-grade display is mostly used indoors, so the brightness requirement is low. Also for the life time, automotive display is normally more than 10 years, much more longer than industrial display.

3. Reliability requirement.

Reliability is mainly divided into two aspects: enviromental testing and mechnical testing. For the reliability items of vehicle display, the temperature and duration of the test should be stricter than those of industrial screens.

4. Supply period

For industrial display, normally it's around 3 years, while for automotive display would be around 5~8 years.

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production.

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)

Price

Price US$ \ 25 ~ 27 / Piece

Packaging & Shipping

- PackingPacked in antistatic bag each a certain quantity in one carton.
- Delivery Lead Time7~35 days
- Minimum Order 1 Piece
- Delivery PortHK
- Shipping Career

Product Image

8 Inch LCD Panel 1280x720 Resolution Automotive Grade with LVDS Interface

8 Inch LCD Display Related Products

240xRGBx240 1.3 Inch Square IPS TFT LCD Module with Free Viewing Angle

Company Profile

About Shenzhen Team Source Display Technology Co., Ltd

Membership Free member
Registration Date2022.12.01
Country/RegionUnited States
Citydongguan
Contact Winnie Wei(Ms.)

Team Source Display (TSD) is a professional LCD display manufacturer in Dongguan, and our sales office is in Shenzhen, China. TSD have passed the ISO14001, ISO13485, IATF16949, ISO9001 and other certificates. We have been specialized in LCD display industry for more than 18 years. TSD developing and manufacturing 0.96 inch to 32 inch color TFT LCD display, 0.96 inch to 50 inch capacitive & resistive touch screen, monochrome LCD/LCM including TN, HTN, FSTN, COB, COG and segment display etc. and also provide OEM & ODM service.

Selling Categories

- Computer Hardware & Software >> Monitors
- Electronic Components & Supplies >> Optoelectronic Displays

Keywords

LCD , LCD display

Registration Date	2022/12/01(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2004
Employees total	101 - 500
Annual revenue	USD 10,000,001 - 50,000,000

Contact Information Order Credit Report

Company	Shenzhen Team Source Display Technology Co., Ltd
Address	2F,Bld 1,Lihao International Technology Park,Zhutang,FenggangdongguanguangdongUnited States
Phone	86 - 1889479 - 9332
Homepage	www.tslcd.com
Contact	Winnie Wei
