Products Description >>>
| Part name |

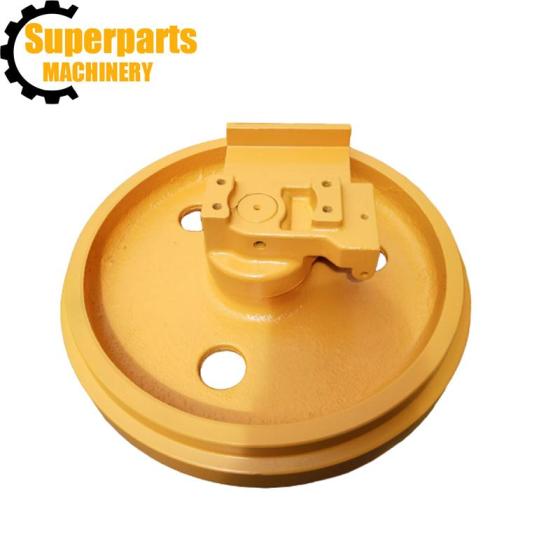

81N8-13010,R250LC-7,R290LC-7,R305LC-7,R320LC-7,R250-7,R290-7,R305-7 Front Idler,Idler Roller,Idler A |
| Roller material |
35MnB/40Mn2/40MnB/50Mn |
O-Ring |
Rubber |
| Technique |
Forging Casting |
Color |
Black or yellow |
| Roller hardness |
HRC54-59，depth 2-3mm |
Shaft hardness |
HRC51°-56°H |
| Side Cover |
QT450-10 |
Double Metal Set |
CuPb10Sn10 |
| Shaft |
45# |
Inside Hex Bolt |
JB/T1000-1977 |
| Floating Seal |
15CrNiMo3 |
Lubricated oil |
SAE85 |
| Related parts |
track roller，bottom roller, carrier roller, top roller, track link assy, front idler, sprocket, track shoe, track bolt nut, track adjuster and other undercarriage parts etc. |
The materials avaliable for Track roller and Carrier roller are 40Mn2、40MnB、50Mn,depending on working conditions.The rollers are normalized with precision forging before overall heat treatment to achieve surface hardness or HRC52-6 and the depth of hardened
layer reaches more than 7-10mm(HRC45).This ensures higher durability with high impact resistance and surface wear resistance on the contact surface of the roller.High quality floating saels and lubrcating system are usde to adapt to different climate
and temperature
The track and carrier rollers is able to work under severe working conditions or climate ranging from -45℃~120℃,keeping the components free from miantenance. Our Track Roller is welded before precision machining in vertical CNC turning lathe and hence,there
is no concentricity errors.The process gives unparalleled quality quality advantage over that of precision machning before welding.Therefore,the operation of roller is be guaranteed against occurrence of rapid wearing problems,which significantly
improves service life of the products.
Application >>>
| THE MODELS FOR EXCAVATOR/BULLDOZER |
| FOR CATERPILLAR |
| E200B / E200-5 / E320D / E215 / E320DL / E324D / E324DL / E329DL / E300L / E320S / E320 / E320DL / E240 / E120-1 / E311 / E312B /E320BL / E345 / E324 / E140 / E300B / E330C / E120 / E70 / E322C / E322B / E325 / E325L / E330 / E450 / CAT225
/ CAT312B / CAT315/ CAT320 / CAT320C / CAT320BL / CAT330 / CAT322 / CAT245 / CAT325 / CAT320L / CAT973 D3 / D3C / D4 / D4D / D4H / D5M / D5H / D6 /D6D / D6M / D6R / D6T / D7 / D7H / D7R / D8 / D8N / D8R / D9R / D9N / D9G / D10 |
| FOR KOMATSU |
| PC20-7 / PC30 / PC30-3 / PC30-5 / PC30-6 / PC40-7 / PC45 / PC45-2 / PC55 / PC120-6 / PC130 / PC130-7 / PC200 / PC200-1 / PC200-3 /PC200-5 / PC200-6 / PC200-7 / PC200-8 / PC210-6 / PC220-1 / PC220-3 / PC220-6 / PC220-7 / PC220-8 / PC270-7 /
PC202B / PC220LC-6 /PC220LC-8 / PC240 / PC300 / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300-7K / PC300LC-7 / PC350-6/7 / PC400 / PC400-3 / PC400-5 /PC400-6 / PC400lc-7 / PC450-6 / PC450-7 / PC600 / PC650 / PC750 / PC800 / PC1100 / PC1250
/ PC2000 D20 / D31 / D50 / D60 / D61 / D61PX / D65A / D65P / D64P-12 / D80 / D85 / D155 / D275 / D355 |
| FOR KOBELCO |
| SK120-6 / SK120-5 / SK210-8 / SK210LC-8 / SK220 / SK220-1 / SK220-3 / SK220-5/6 / SK200 / SK200 / SK200 / SK200-3 / SK200-6 /SK200-8 / SK200-5/6 / SK60 / SK290 / SK100 / SK230 / SK250 / SK250-8 / SK260LC-8 / SK300 / SK300-2 / SK300-4 / SK310
/ SK320 /SK330-8 / SK330 / SK350LC-8 / SK235SR / SK450 / SK480 / SK30-6 |
| FOR HITACHI |
| EX40-1 / EX40-2 / EX55 / EX60 / EX60-2 / EX60-3 / EX60-5 / EX70 / EX75 / EX100 / EX110 / EX120 / EX120-1 / EX120-2 / EX120-3 /EX120-5 / EX130-1 / EX200-1 / EX200-2 / EX200-3 / EX200-5 / EX220-3 / EX220-5 / EX270 / EX300 / EX300-1 / EX300-2
/ EX300-3 /EX300-5 / EX300A / EX330 / EX370 / EX400-1 / EX400-2 / EX400-3 / EX400-5 / EX450 ZAX30 / ZAX55 / ZAX200 / ZAX200-2 / ZAX330 /ZAX450-1 / ZAX450-3 / ZAX450-5 |
| FOR SUMITOMO |
| SH120 / SH120-3 / SH200 / SH210-5 / SH200 / SH220-3 / SH220-5/7 / SH290-3 / SH350-5/7 / SH220 / SH280 / SH290-7 / SH260 / SH300 /SH300-3 / SH300-5 / SH350 / SH60 |
| FOR VOLVO |
| EC160C / EC160D / EC180B / EC180C / EC180D / EC210 / EC210 / EC210B / EC240B / EC290 / EC290B / EC240 / EC55 / EC360 / EC360B /EC380D / EC460 / EC460B / EC460C / EC700 / EC140 / EC140B / EC160B |
| FOR HYUNDAI |
| ROBEX 80-7 / ROBEX 110-7 / ROBEX 110-7A / ROBEX 125 LCR-9A / ROBEX 130 / ROBEX 130 LC / ROBEX 140 / ROBEX 140 LC / ROBEX 145 /LCR-9 / ROBEX 150 LC-7 / ROBEX 160 LC / ROBEX 180 LC-3 / ROBEX 180 LC-7 / ROBEX 180 LC-7A / ROBEX 180 LC-9 / ROBEX
180 LC-9A /ROBEX 180 LCD-9A / ROBEX 180N LC-3 / ROBEX 200 / ROBEX 200 LC / ROBEX 210 / ROBEX 210-5 / ROBEX 210-7 / ROBEX 210 LC / ROBEX 210LC-2 / ROBEX 210 LC-3 / ROBEX 210 LC-7 / ROBEX 210 LC-7 LR / ROBEX 210 LC-7A / ROBEX 210 LC-9 LR
/ ROBEX 210 LC-9 / ROBEX 210NLC-7 / ROBEX 215-7 / ROBEX 215-9 / ROBEX 220 LC / ROBEX 220 LC-5 / ROBEX 220 LC-9 / ROBEX 220 LC-9A / ROBEX 220 LC-9S / ROBEX 225LC-7 / ROBEX 235 LCR-9 / ROBEX 235 LCR-9A / ROBEX 250 LC-3 / ROBEX 250 LC-7 /
ROBEX 250 LC-9 / ROBEX 250N LC-7 / ROBEX 250N LC-7A/ ROBEX 250N LC-9 / ROBEX 260 |
