Item | Paramter |
Board Type: | Rigid PCB, Flexible PCB, metal core PCB,Rigid-Flex PCB |
Board Shape: | Rectangular, Circular and any Odd Shapes |
Size: | 50*50mm~400mm * 1200mm |
Min Package: | 01005 (0.4mm*0.2mm),0201 |
Fine Pitch Parts: | 0.25mm |
BGA Package: | Dia. 0.14mm, BGA 0.2mm pitch |
Mounting Accuracy: | ±0.035mm(±0.025mm) Cpk≥1.0 (3σ) |
SMT Capacity: | 3 Million~4 Million Soldering Pad/day |
DIP Capacity: | 100 Thousand Pins/day |
Assembly Capacity | 100 Thousand Pins/day |
Parts Sourcing: | All components sourced by Cmy, Partial sourcing, Kitted/Consigned |
Parts Package: | Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk |
Testing: | Visual inspection; AOI ; X-RAY ; Functional Testing,ICT |
Types of Solder: | lead-free (RoHS Compliant) assembly services |
Assembly Option: | From SMT to Assy,conformal coating ,Press fit |
Stencils: | Laser cut stainless steel stencils,Nano stencil ,FG stencil |
File Formats: | Bill of Materials,PCB(Gerber Files),Pick-N-Place File (XYRS) |
Quality Grade: | IPC-A-610,IPC-A-600 |
2. Our Services
1. PCB fabrication.
2. Turnkey PCBA: PCB+components sourcing+SMD and through-hole assembly
3. PCB clone, PCB reverse engineering.
PCB or PCBA Files Requests:
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (please kindly advise us if there is any acceptablecomponents substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
3. Company Information
Global Well Electronic Inc. is a professional PCB solution supplier from Shenzhen, China, integrating PCB circuit board production and processing, STM processing and mounting, PCBA OEM, component purchasing, PCB/PCBA custom design-production- A comprehensive PCB circuit board company with one-stop turnkey service of processing-assembly-finished products. The company has a strong supply chain system, a professional and efficient collaborative team, a sound and complete quality control system, and the business philosophy of honesty and trustworthiness, customer first, and presents the products to everyone with low prices, reliable quality, high-quality service and after-sales service. client.
We provide total PCB solutions from PCB design to final mass production, including PCB fabrication and assembly, component sourcing, solder paste stencils, conformal coatings, and more. Serving the global electronics field, including industrial control, medical electronics, military equipment, power communication, automotive electronics, AI artificial intelligence, smart home and other industries.
Our factory located in Shenzhen, and have almost 300

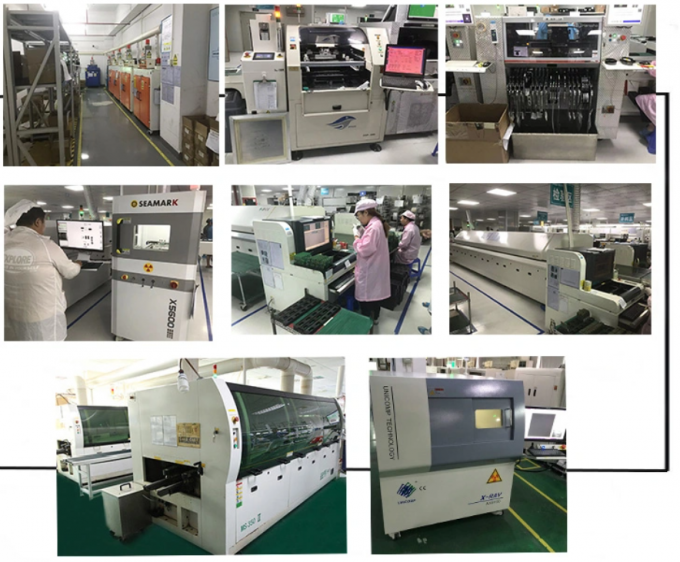

employees, more than 30 production lines include SMT, DIP, automatic welding, aging test and assembly. We have SMT machines from Japan and Korea, automatic solder paste printing machines, solder paste inspection machine(SPI)12 temperature zone reflow soldering machine, AOI detector, X-RAY detector, wave soldering machine, EM PCB ,dispenser,laser print machine etc., Different line configurations can meet requirements from small sample order to bulk shipment.
Our company has obtained ISO 9001 quality system certification and ISO 14001 system certification. With multi-testingprocedures, our products carry out the quality system standard strictly.

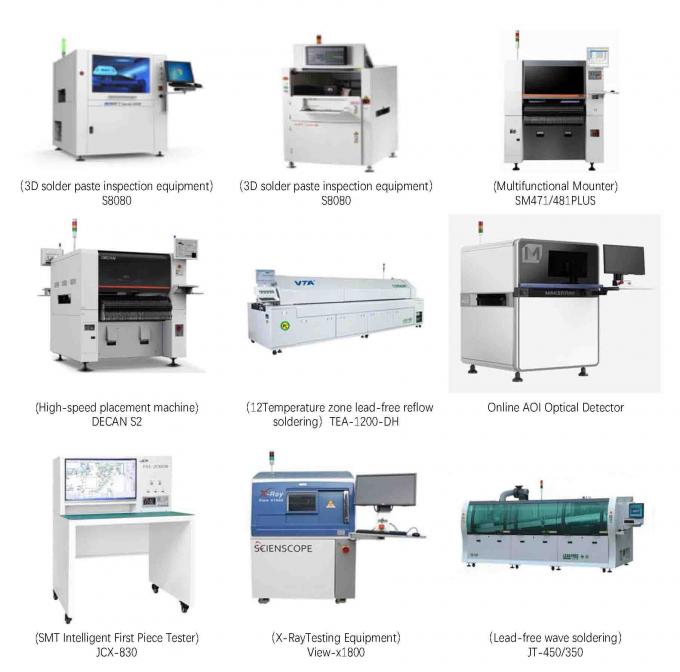

4. Main Equipment:
5.PCB Technical Specification
Company Capability
| Layers | 1-24 Layers |
| Copper Thickness | 0.5-6 OZ |
| Material | FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06,Rogers, Taconic,Argon,
Nalco,Isola and so on |
| Solder Mask | green, yellow,white, blue,black,red |
| Finished Surface | conventional hasl, lead free hasl, immersion gold, immersion tin,immersion silver, hard gold, OSP... |
| Silkscreen color | white,black |
| Products Type | HF(High-Frequency) and (Radio Frenquency)board,impendance controlled board, HDI board,BGA&Fine pitch board |
| Minimum line width/gap | 3.5/4mil(laser drill) |
| Minimum hole size | 0.15mm(mechanical drill)/4mil(laser drill) |
| Minimum Annlar Ring | 4mil |
| Max Copper thickness | 6OZ |
| Min Solder Mask Bridge | 0.08mm |
| Plugging Vias capability | 0.2-0.8mm |
| Component package | Cut Tape,Tube,Reels,Loose Parts |
| PCBA process | Drilling-----Exposure-----Plating-----Etaching Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature - Humidity Testing |

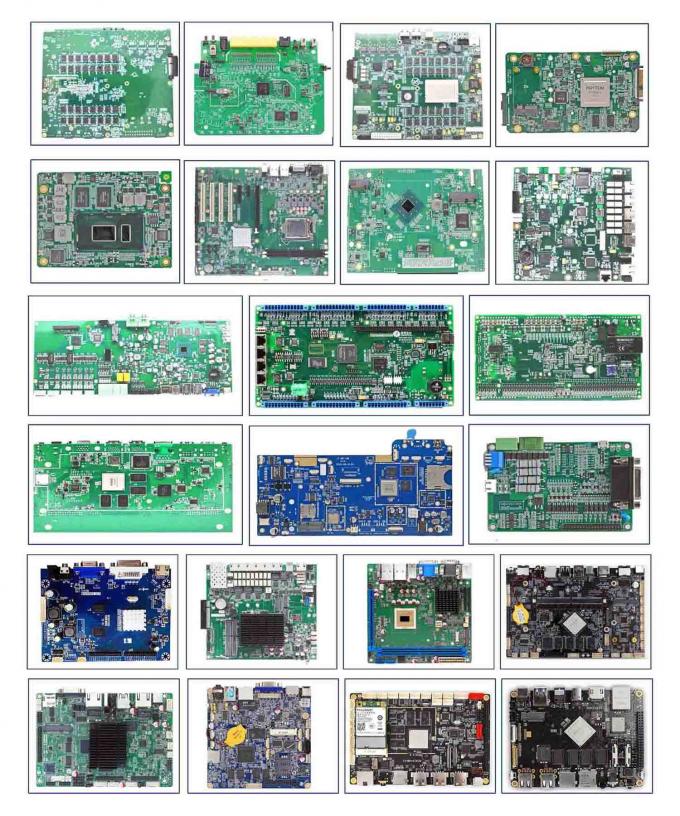

6. PCB&PCBA Products Show
7. Certifications
8. Packaging & Shipping
Packing details:
PCBA are packed into plastic bags. Plastic bags are put into small carton. 4 small carton into a big carton.
A big carton: 35×32×40 cm size.
Shipping Express:
FedEx, DHL, UPS, TNT, EMS, private lines, etc.
Air freight, Sea shipping
If you need help on PCB layout, you can contact us and send the board to us. We also provide Reverse Engineering Service.
We have been providing PCB Manufacture for many years in China,and we have rich experience in product production and product assembly.We believe our team will provide high quality and low cost service for you.
