There are 5 24v 20w lighting transformer from 1 suppliers on EC21.com
Related Searches : power supply , switching power supply , smps , switch power supply , ac/dc adapter , led driver
Supplier Info.
Report Item
Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.
Contact Supplier
|
Features: 1.international AC input range 2.high efficiency, low working temperature 3.soft- start circuit, limiting AC surge current soft-start 4.short circuit, overload, over voltage protected 5.compact size, light weight 6.100% full load burn-in test 7.Built-in EMI filter, low ripple noise 8.low cost, high reliability 9.CE and ROHS approvals

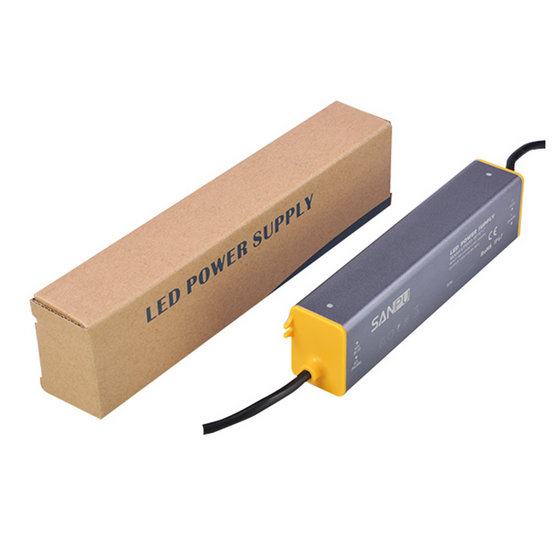

Metal shell waterproof type constant voltage 20W |
||||
|
Input specification |
AC input voltage range |
85---264VAC |
||
|
Input frequency |
47-63Hz |
|||
|
AC inrush current |
30A/230V |
|||
|
Output specification |
Output voltage can be adjusted |
±10% |
||
|
Start-up time |
leq1S(input230V,Io=100%) |
|||
|
keep time |
more than or equal to 20mS (input230V,Io=100%) |
|||
|
Voltage regulation |
(Full load) leq0.5% |
|||
|
Protection function |
Overload protection |
105% - 135% rated power, automatic recovery |
||
|
Over-voltage protection |
105% - 135% of the rated voltage |
|||
|
Insulation intensity |
Input---output |
1500VAC/1min |
||
|
Input---ground |
1500VAC/1min |
|||
|
Input---ground |
500VAC/1min |
|||
|
Safety standards |
According with GB4943, UL60950-1,EN60950-1 standards. |
|||
|
E M C standards |
According with GB9254, EN55022 class A ?EN61347-2-13:2008 standards |
|||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
||
|
Storage temperature |
–40°C~85°C/10%~95%RH |
|||
|
height above sea level |
leq2000M |
|||
|
Structure |
Size(mm) |
115(L)*40(W)*30(H) |
||
|
Cooling method |
Cooling method |
Natural cooling air convection |
||
|
Weight |
0.22KG/PCS ,100pcs/18kg |
|||
|
Product Type Table |
||||
|
Product model |
output specification |
Error, range |
efficiency |
|
|
LPS20-W1V12 |
12V |
0-1.7A |
±1%, 100mV |
85% |
|
LPS20-W1V15 |
15V |
0-1.4A |
±1%, 100mV |
86% |
|
LPS20-W1V24 |
24V |
0-0.8A |
±1%, 150mV |
88% |

Company Information

SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS
1. What we sell is 100% tested before shipping out;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
| Whatsapp/Mob/Wechat | +86 186 65359734 | ||
| Skype | leddriver.oy | ||
| Name | Eric Yang | ||
| C Series | L Series | PS Series | FX Series | LP Series | LPS Series | PC Series |
| 35W | 35W | 15W | 60W | 20W | 12W | 3W |
| 60W | 60W | 25W | 100W | 35W | 20W | 7W |
| 100W | 100W | 35W | 150W | 60W | 35W | 12W |
| 150W | 150W | 60W | 200W | 75W | 60W | 20W |
| 200W | 100W | 250W | 100W | 100W | 25W | |
| 250W | 120W | 350W | 120W | 150W | 30W | |
| 300W | 150W | 400W | 200W | |||
| 350W | 200W | 600W | 250W | |||
| 250W | ||||||
| 350W | ||||||
| 400W |
| Registration Date | 2017/03/28(Year/Month/Date) |
|---|---|
| Buyer / Seller in EC21 | Seller |
| Business Type | Manufacturer |
| Year established | 2008 |
| Employees total | 101 - 500 |
| Annual revenue | USD 2,000,001 - 5,000,000 |
| Company | Shenzhen Sanpu Intelligent Technology Co., Ltd |
|---|---|
| Address | 5/F, Bldg B3, Huafeng Century Tech. Park, Hangcheng ave., Gushu, Xixiang, Baoan Dist.ShenzhenGuangdongChina |
| Phone | 86 - 186 - 65359734 |
| Contact | Eric Yang |
