Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Punching Machines

Description by Manufacturer

Essential details

CNC or Not:: CNC

Condition:: New

Machine Type:: Punching Machine

Slide Stroke (mm):: 120

Power Source:: Pneumatic

Place of Origin:: Anhui, China

Brand Name:: AccurL

Voltage:: 380V/220V Optional

Dimension(L*W*H):: 1150mmx900mmx1880mm

Motor Power (kW):: 2.2

Model Number:: JH21

Weight (T):: 6

Key Selling Points:: High Productivity

Warranty:: 2 years

Applicable Industries:: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works

Marketing Type:: Hot Product 2019

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Bearing, Pump, Gear, Motor

After-sales Service Provided:: Engineers available to service machinery overseas

Capacity:: 45 tons

Bolster area:: 450 x 300mm

Motor Power:: 2.2Kw

Main power:: Siemens Electrical

Programmable logic controller PLC:: OMRON from Japan

Pneumatic component:: TACO, Japan, CE

Hydraulic overload:: Germany

Main motor:: Siemens Electrical

Keyword:: punching press

After Warranty Service:: Video technical support, Online support

Nominal Force (kN):: 250

Certification:: CE ISO

Product Description

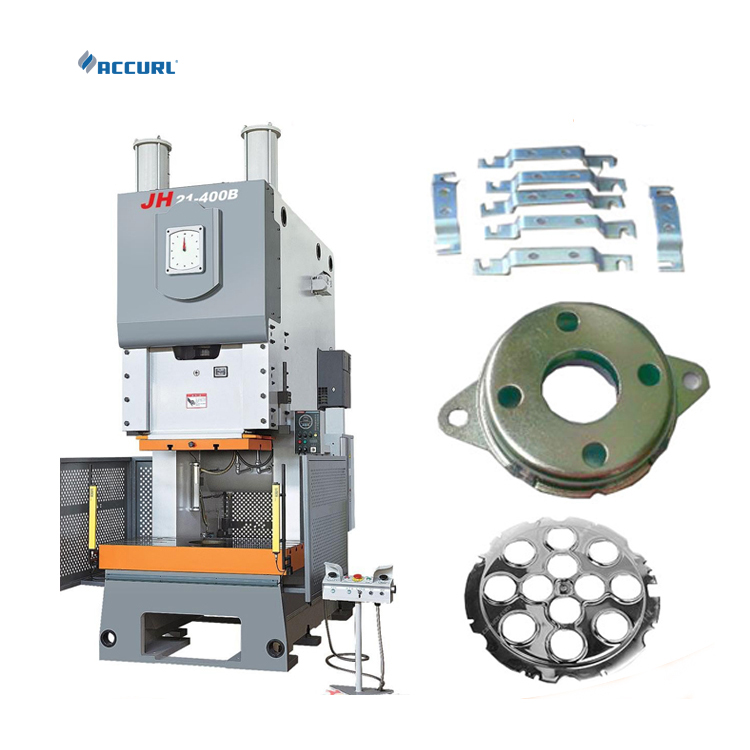

ACCURL JH21 Series C-Frame Fixed Bolster Press

New ACCURL® Mechanical Eccentric Presses are stronger and more feature packed than any gap frame press on the market today. More steel in the c-section of the frame reduces what is known as angular deflection under full stamping loads. Larger flywheel, higher energy rating point ABDC, connecting rods and ball screws. New cast slide body with digital die height indicator and large flanged upper die adapter plate. Slide guides are taper wedge design like our straight side presses to assure long die life during production runs.
The JH21- 200 ton GEN-2 (left) shows our standard I-PRESS control, side safety guards, t-stand run station and t-slotted bolster and slide for quick clamping of dies.

Standard Execution:

Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.

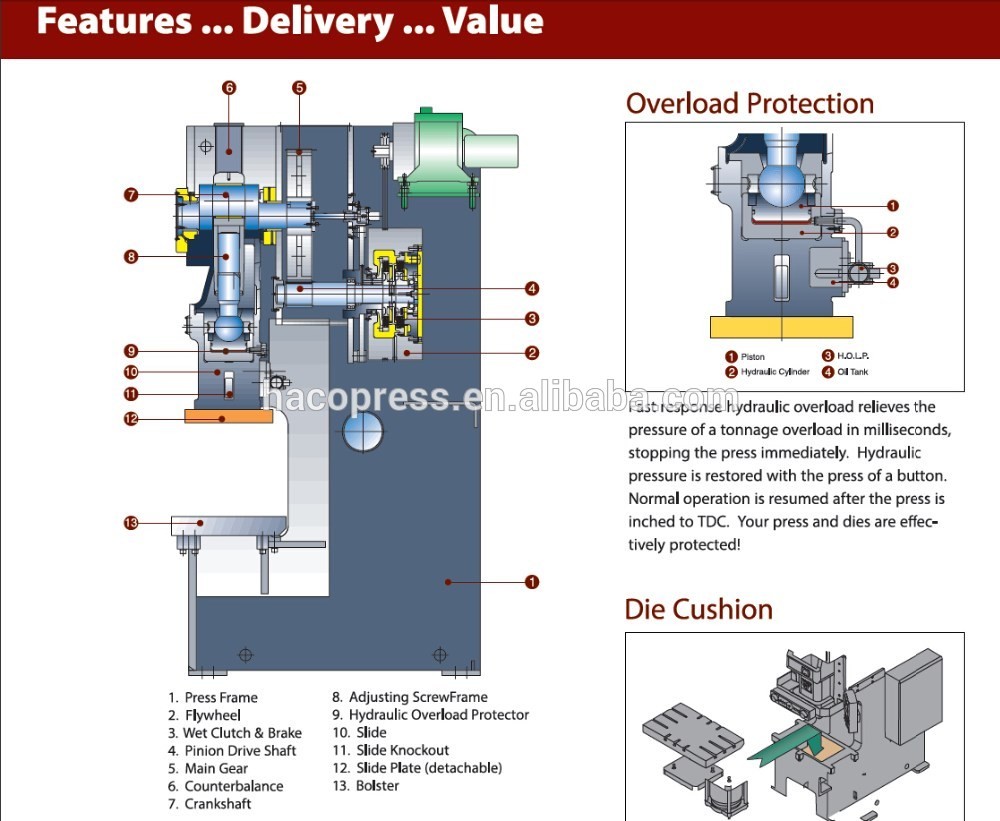

Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and protecting press and dies from damage.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•OCP-25/45: manual adjusting, scale indicated.
•OCP-45: optional elec. adjustment with digital display.
•OCP-63 superior: elec. adjustment with digital display.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Elec.forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•CE safety specifications
•Optional: air cushion, light curtain, automotive device..

Detailed Images

Major Parts

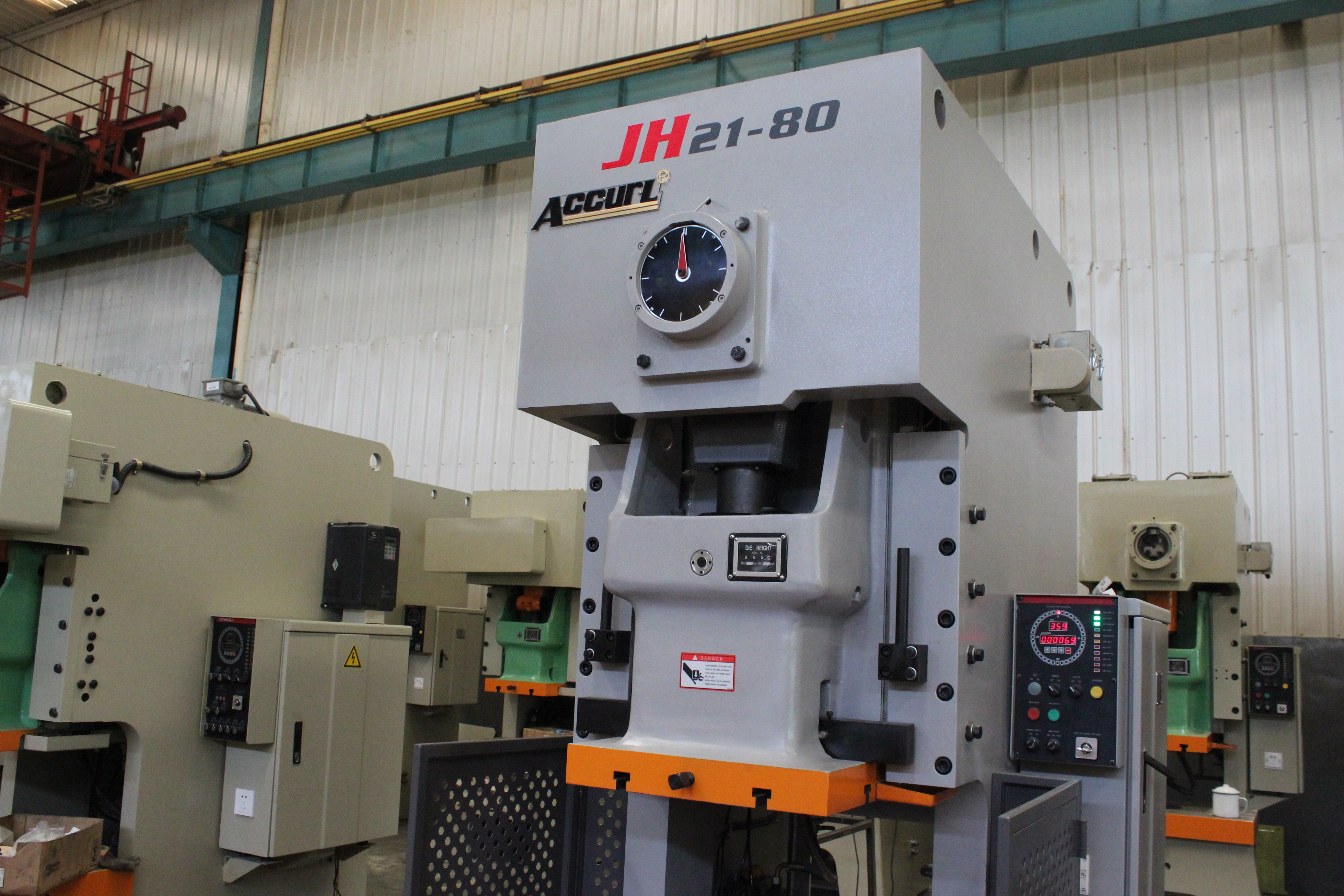

Name: Machine Body
Original: China
Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.

Control system

Name: NC Control system
Original: Made in China
• Six programmable limit switches
• Four programmable die protection inputs
• LCD display screen for status and fault messages
• LED display for crank angle and spm

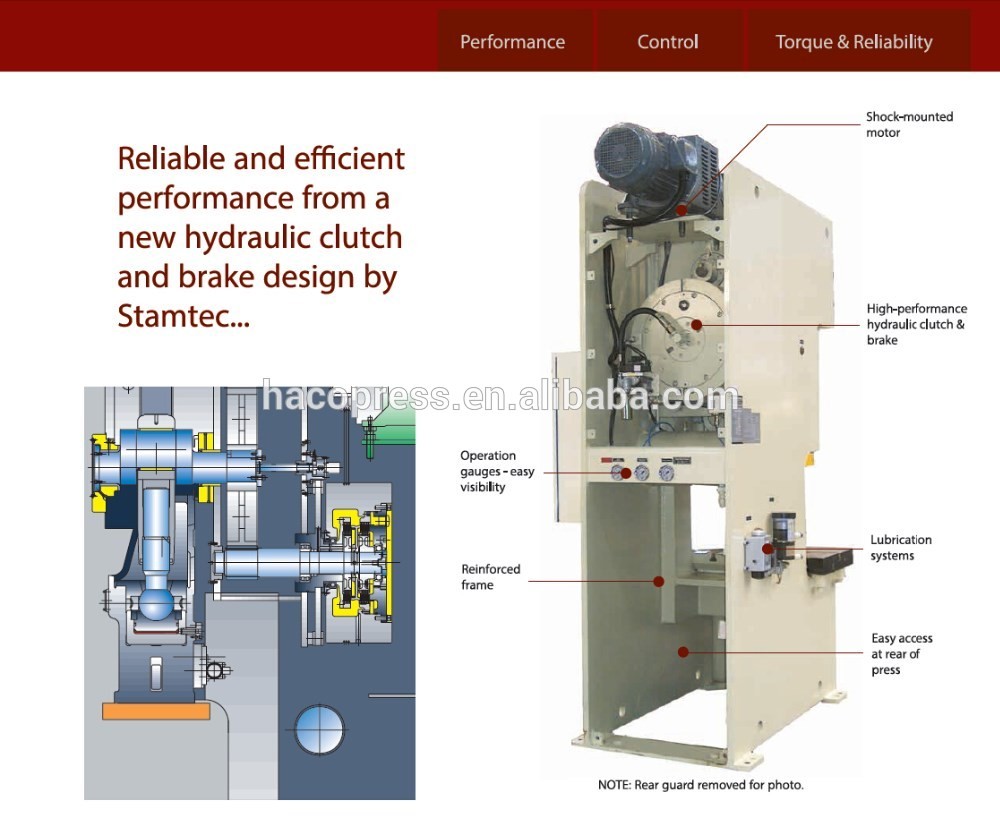

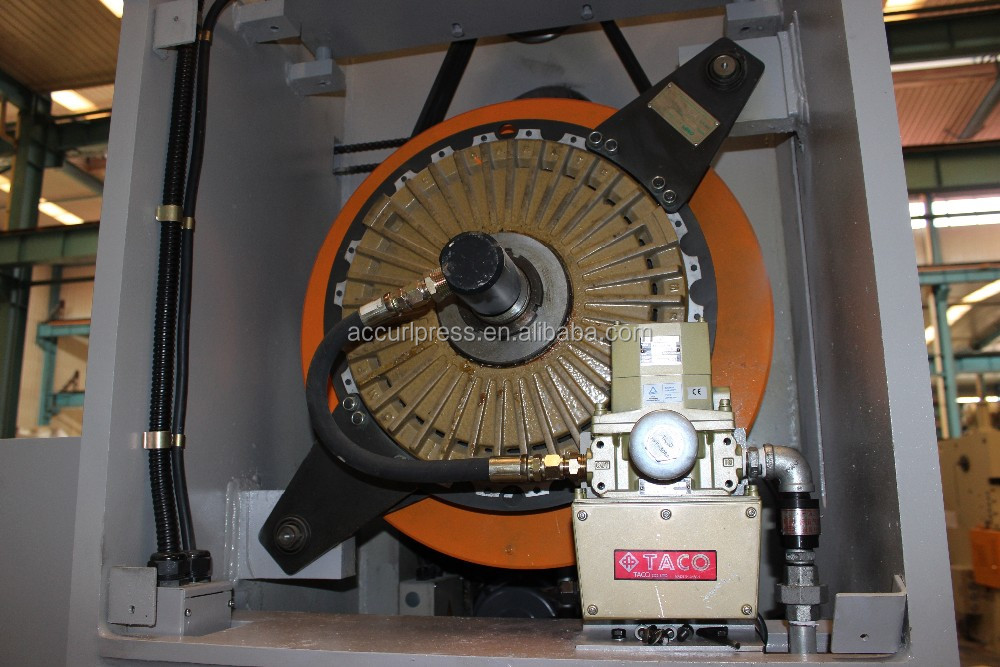

Pneumatic clutch & brake

• Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
• Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

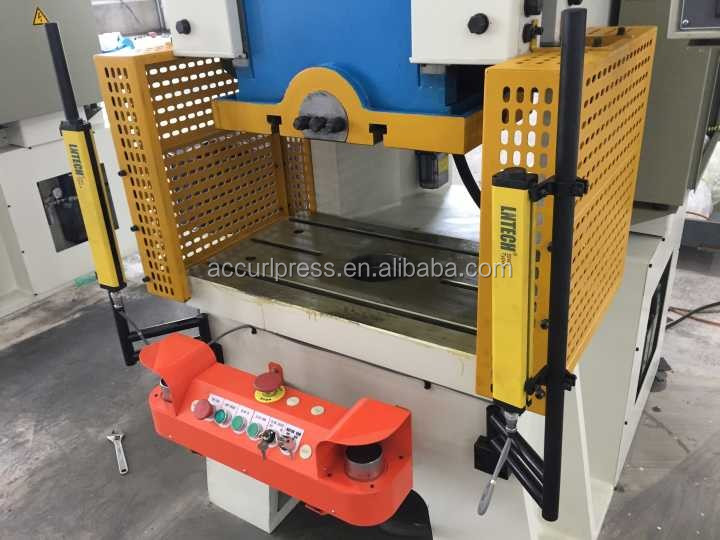

Safety light curtains:

• Protective fence and the safety interlock to ensure the operation safety. have a movable single-hand pedal switch,easy to operate.
• Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

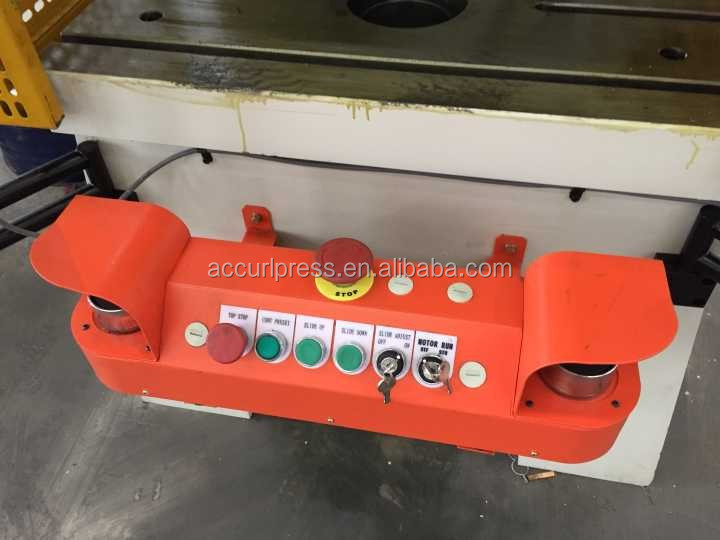

Control button station

• Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

SPECIFICATION

Type	Throat Depth/mm	Motor/kw	Weight/kg	Nominal/kn
JH21-25	210	3	2450	250
JH21-45	225	5.5	3550	450
JH21-60	270	5.5	5150	600
JH21-80	310	7.5	6450	800
JH21-100	330	7.5	8650	1000
JH21-125	More detalis, please contact our saler, will give you best solution.......

Company Profile

Why choose us?

ACCURL is a famous manufacturer of metal sheet equipments in world market. Its Brand ¡°Accurl¡± has been leading brand for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales. Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities

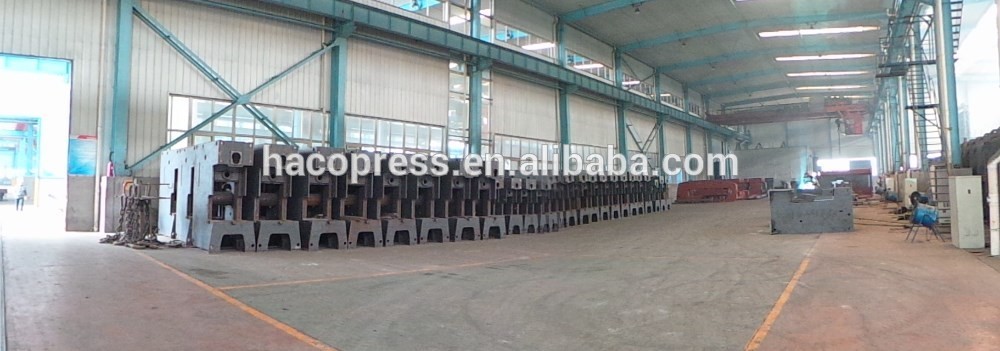

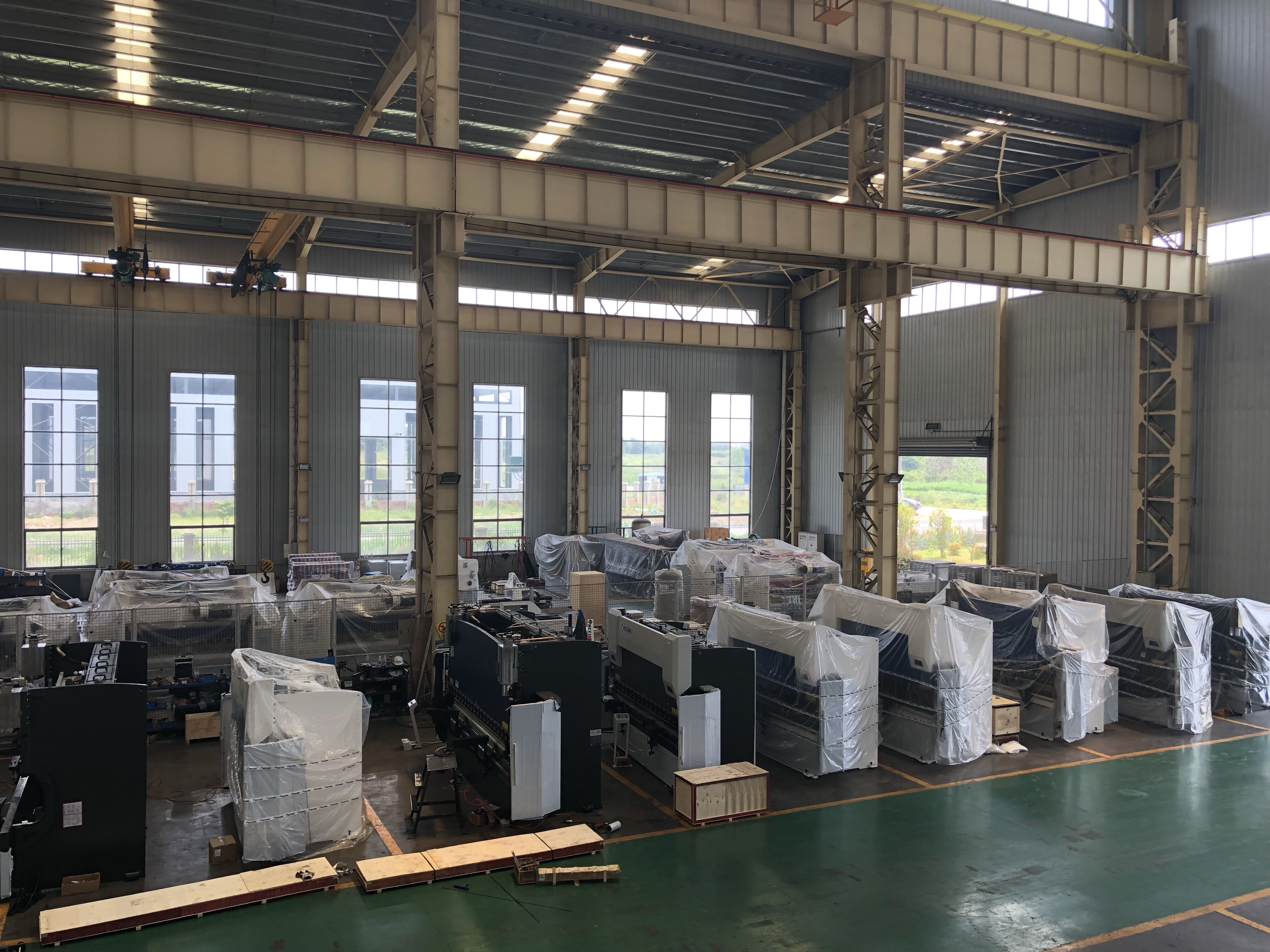

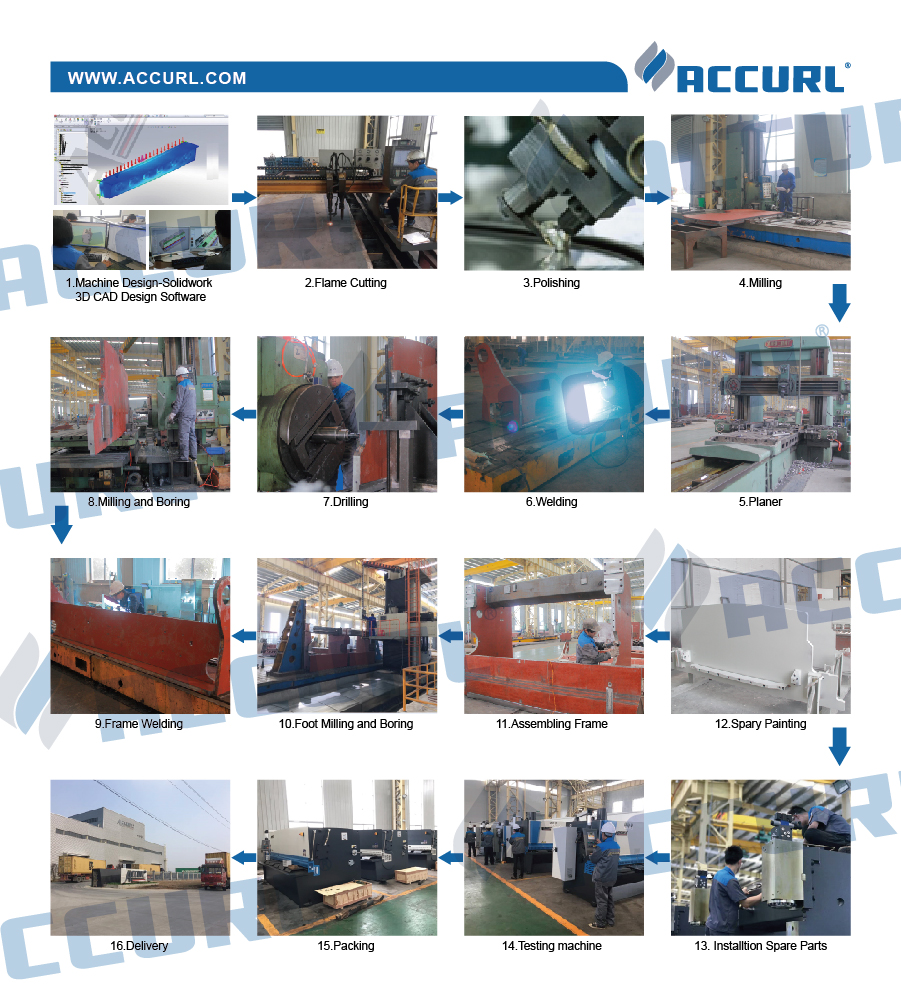

Technological Process

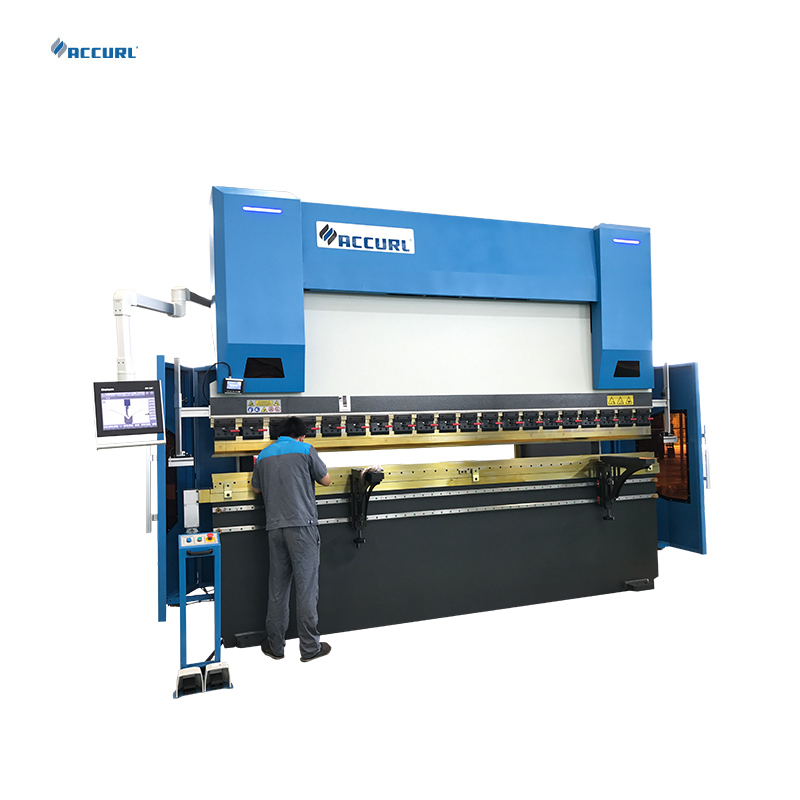

CNC Press Brake

         91.8% Response Rate

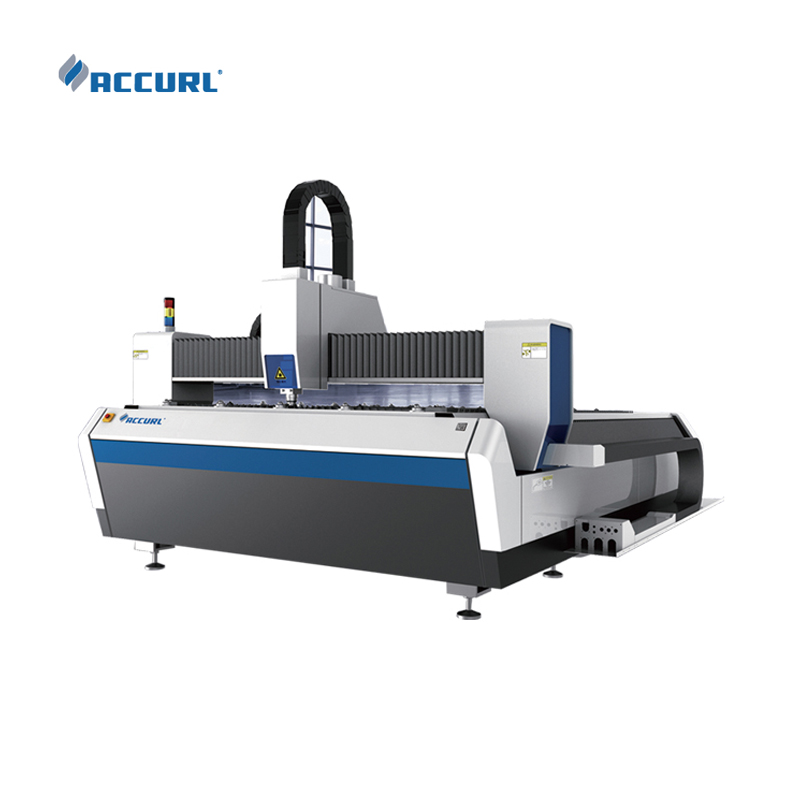

500W Laser Cutting Machine

           91.8% Response Rate

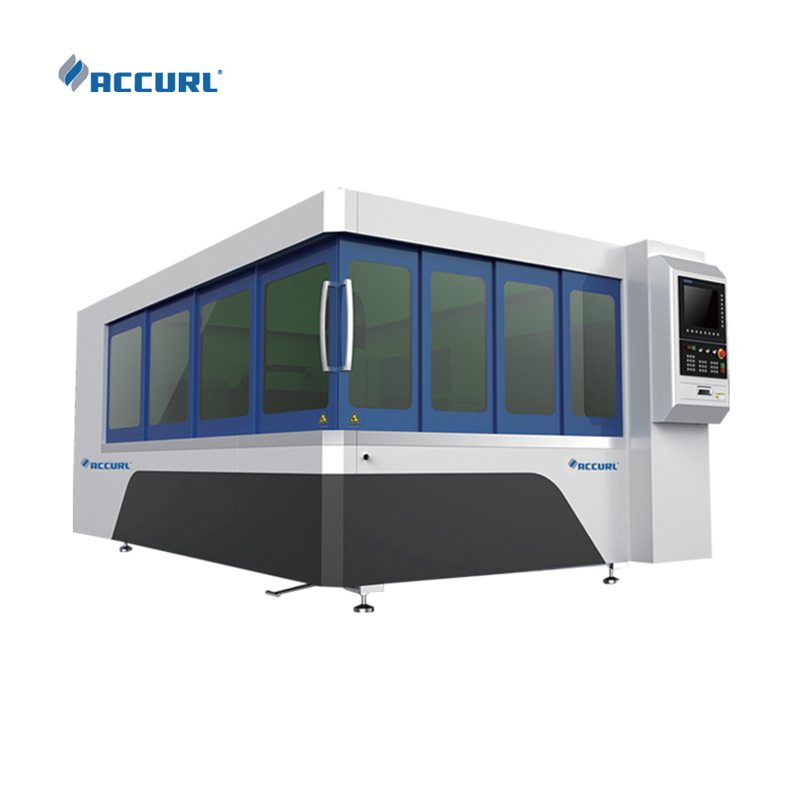

6000W Laser Cutting Machine

            91.8% Response Rate

Certifications

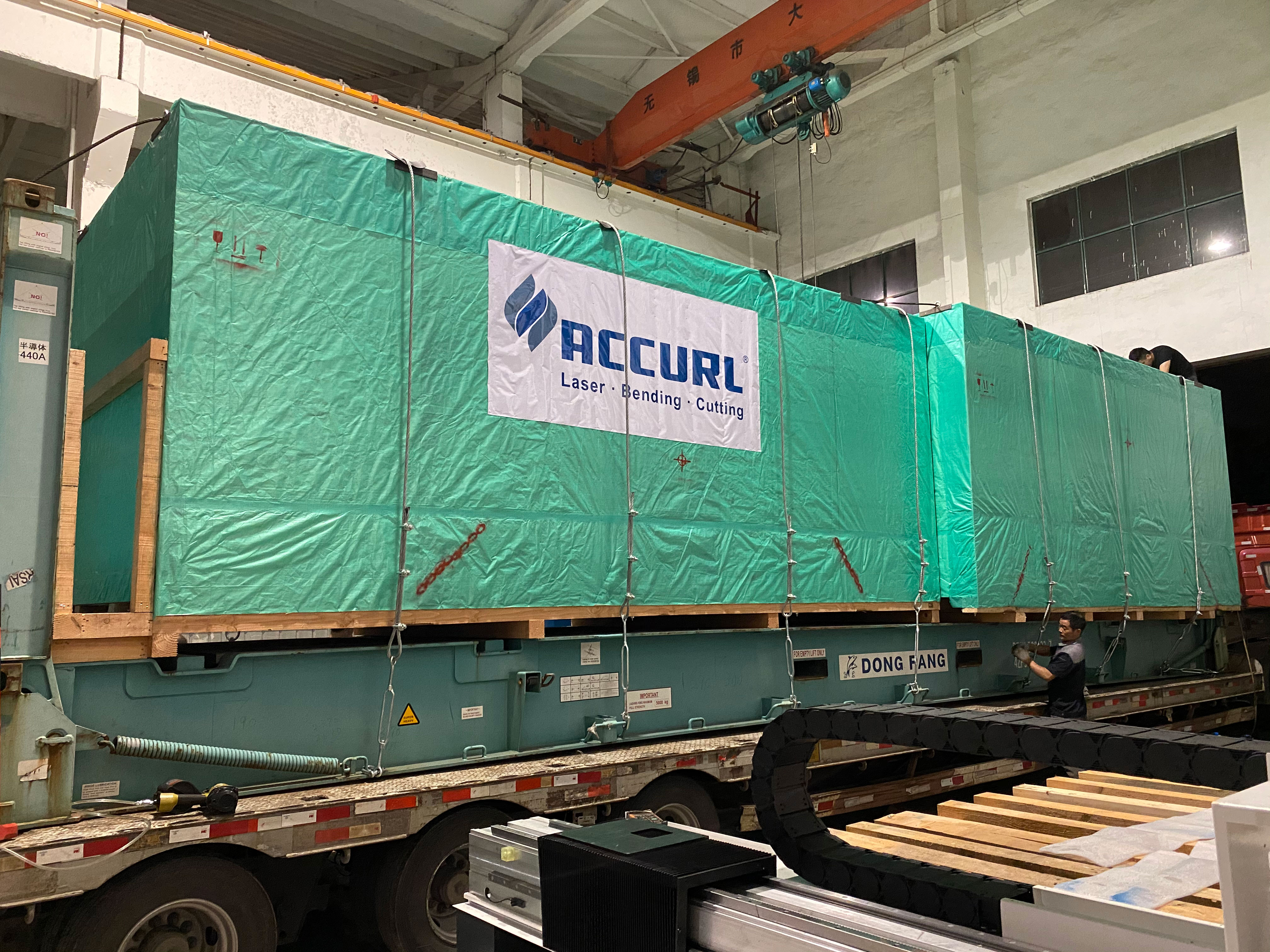

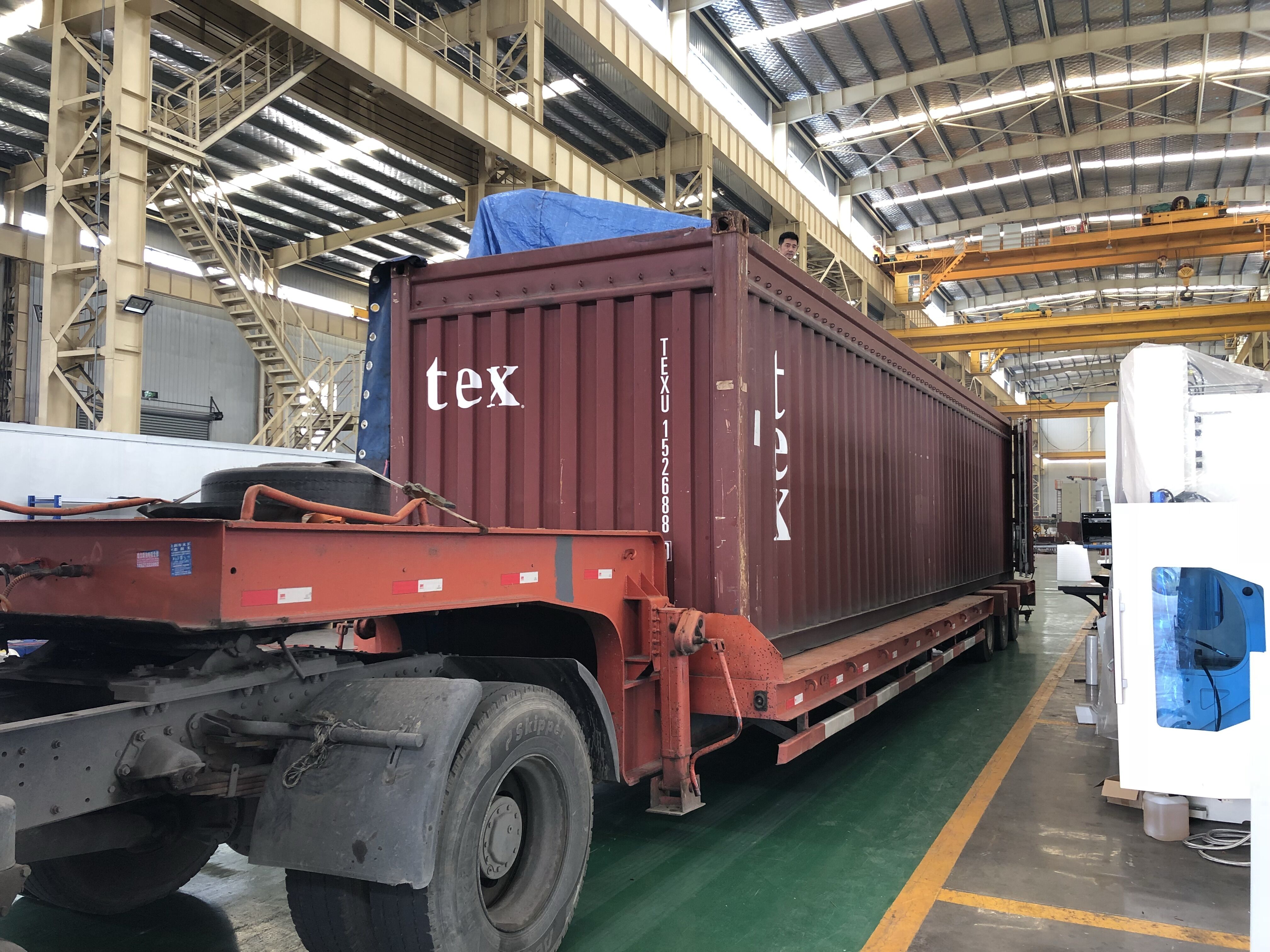

Product packaging

Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time. 2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
The outmost is wooden case with fixed formwork.
The bottom of the wooden case has firm iron jack, convenient to handing and transport.

Price

Price US$ 9820 / Set

Product Image

ACCURL JH21 Series C-Type High Performance Press with Fixed Bed,Punching Machine

ACCURL JH21 Series C-Type High Performance Press with Fixed Bed,Punching Machine 2

ACCURL JH21 Series C-Type High Performance Press with Fixed Bed,Punching Machine 3

ACCURL JH21 Series C-Type High Performance Press with Fixed Bed,Punching Machine 4

ACCURL JH21 Series C-Type High Performance Press with Fixed Bed,Punching Machine 5

ACCURL JH21 Series C-Type High Performance Press with Fixed Bed,Punching Machine 6
