Accurl 129NC Pipe and Tube Bending Machine Tube Bender with Easy-to-read Degree Indicator

Add to Basket Share to :

Price

US$ 4200

Min Order Quantity1 Set
PortShanghai
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Accurl CNC Machine Manufactory Co.Ltd
Membership Free member
Registration Date2023.01.17
Country/RegionChina
CityMaanshan
Contact XU SHUYI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.XU SHUYI

Accurl CNC Machine Manufactory Co.Ltd

* Buying Product

Category : Metal Bending Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Bending machine

Description by Manufacturer

Essential details

Place of Origin:: Anhui, China

Brand Name:: ACCURL

Condition:: New

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: New Product 2022

Warranty of core components:: 3 years

Core Components:: PLC, Engine, Gearbox, Motor

Material / Metal Processed:: ALLOY, Aluminum, Plastic, Aluminium alloy, Stainless steel, Brass / Copper, Carbon steel

Automation:: Automatic

Year:: 2022

Weight (KG):: 7850 KG

Motor Power (kW):: 15 kW

Warranty:: 3 years

Key Selling Points:: High Safety Level

Applicable Industries:: Energy & Mining, Machinery Repair Shops, Manufacturing Plant, Construction works , Building Material Shops

Machine Type:: Pipe and Tube Bending Machine

Product name:: Aluminum Profile Bending Machine

Keyword:: Pipe Bending

Application:: Profile Bending

Material:: Mild Steel

Color:: Customized

VOLTAGE:: 220V/380V/415V/440V/customized

Oil Pump:: 17L

working pressure:: 12MPa

bending angle:: 185°

Certification:: ce, ISO 9001:2000

After-sales Service Provided:: Online support, Video technical support

After Warranty Service:: Video technical support, Online support

Products Description

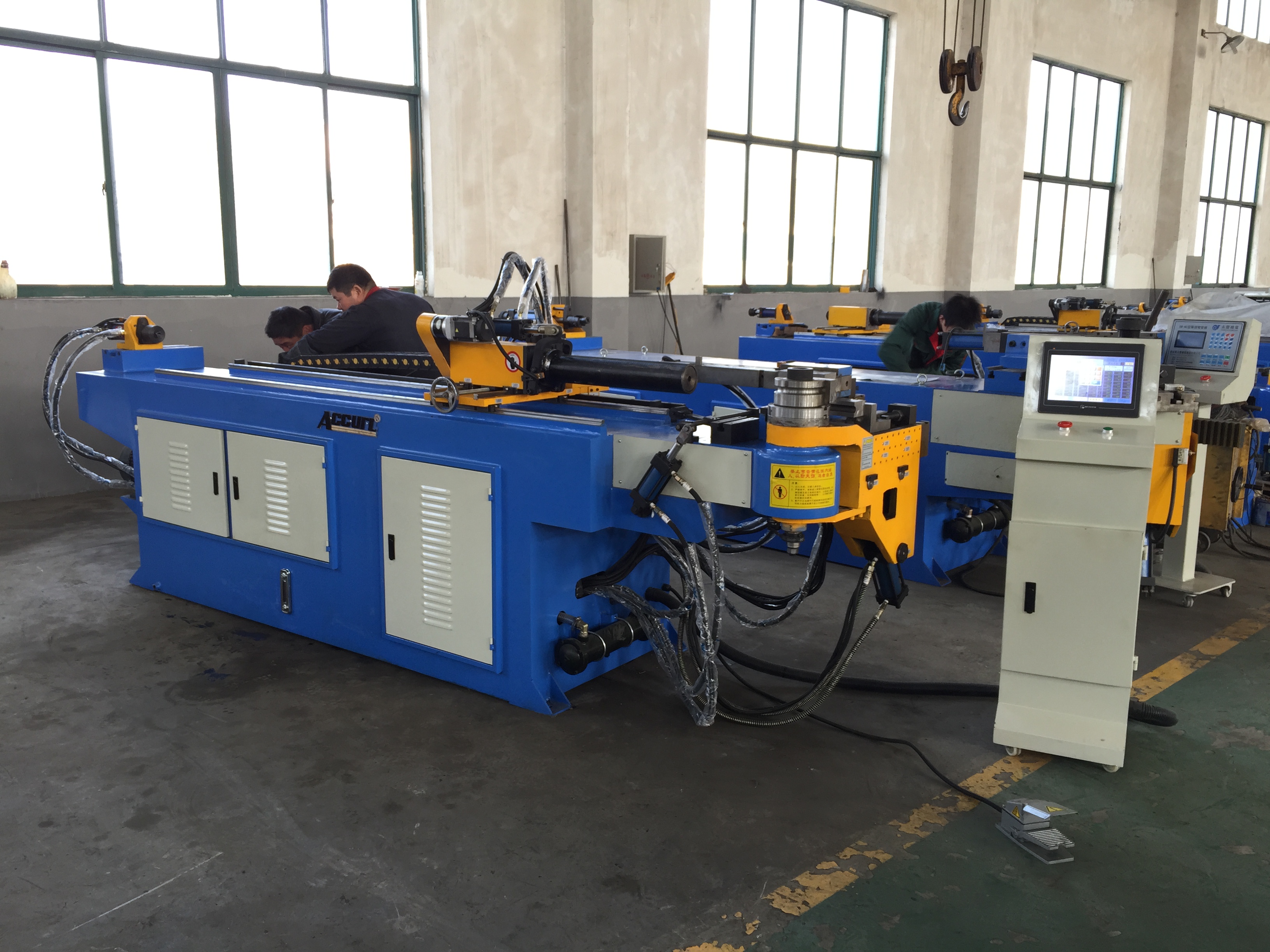

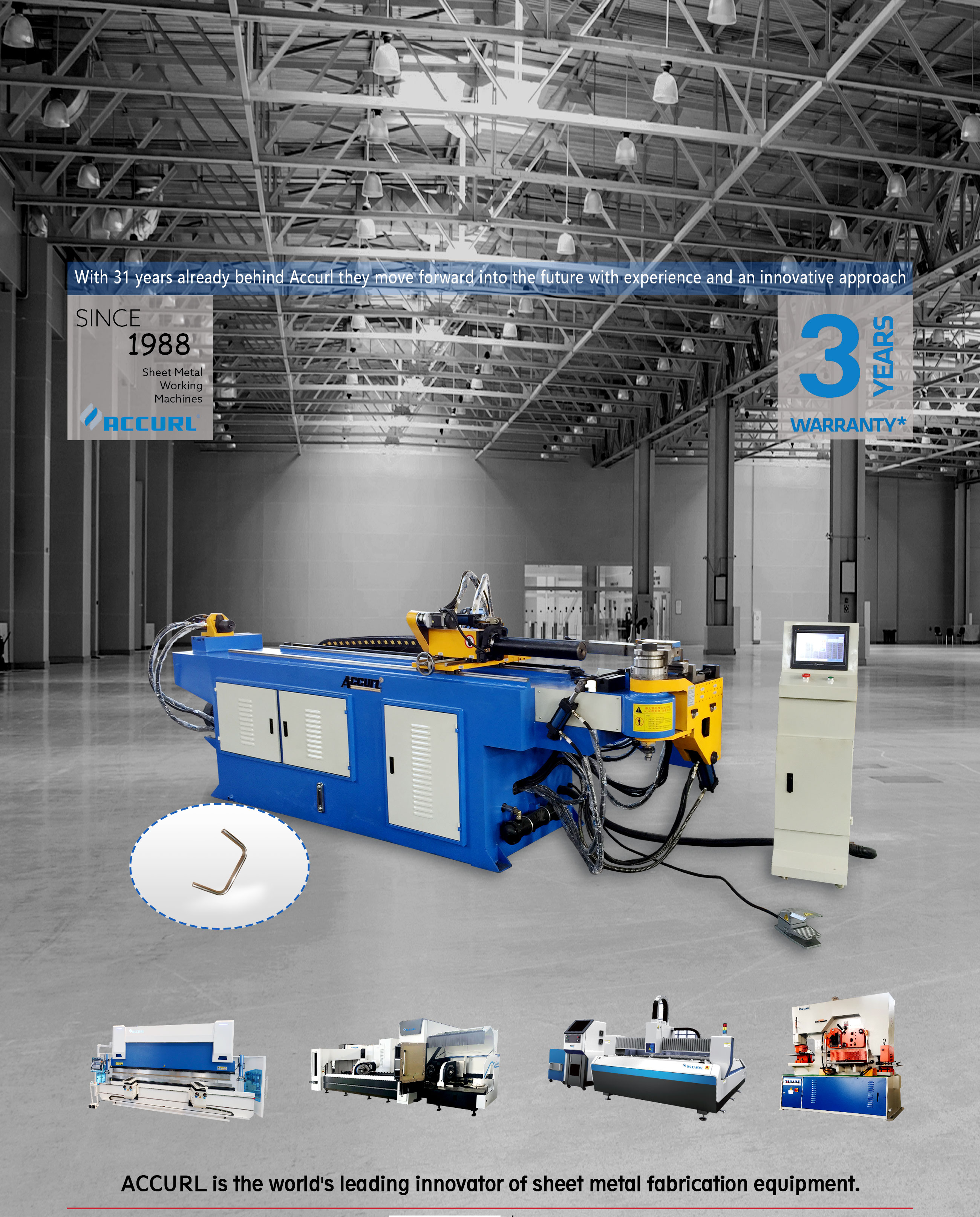

Accurl hydraulic NC pipe bending machine

Characteristics
1, the machine adopts PLC control, conversational operation, simple programmable steps.
2, the freedom of choice, manual, semiautomatic cycle, function of automatic cycle.
3, mobile pedal switch, with automatic startup, emergency stop, stop to three kinds of function, high safety.
4, it has a large capacity and cooling cycle system so that the machine could run more stable.
5, head tube bending, delicate design, provide maximum bending pipe space.
6, it is undersized, simple and convenient to replace elastic production.
7, in the machining process of the screen mobile controller tube bending machining is now worth, still can set single-step action,half cycle, the cycle.
8, with automatic detection errors and faults, when any abnormal function of action or any dangerous when there is a machine.

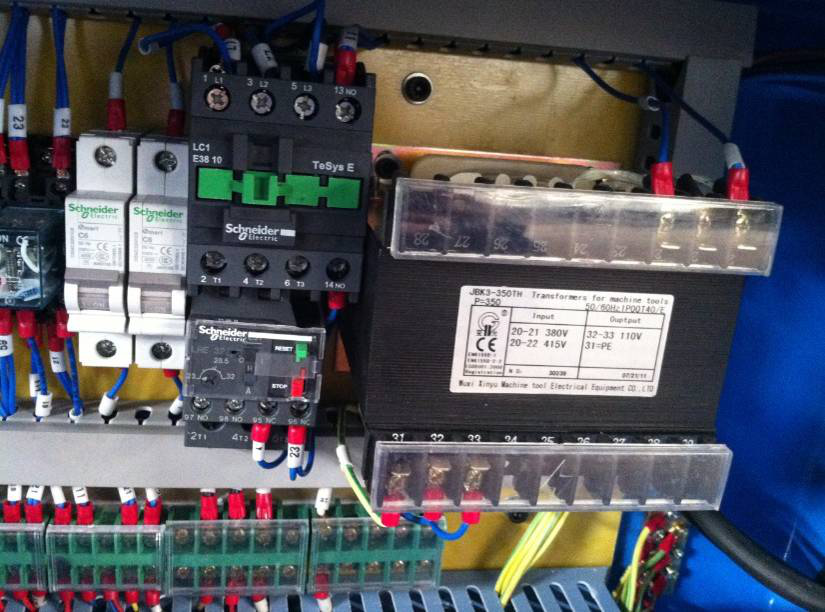

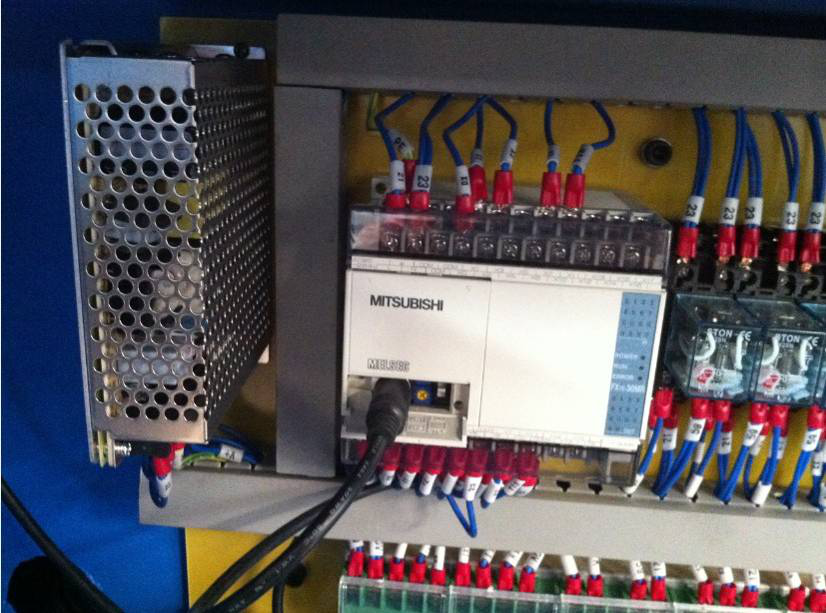

Details Images

 Main specification and technical parameters

type	bending ability	bending radius	bending angle	power of motor	working pressure
38NC	Φ38×2.0	200	185°	4kw	12MPa
50NC	Φ50×2.5	250	185°	5.5kw	12MPa
63NC	Φ63×4.0	300	185°	5.5kw	12MPa
75NC	Φ75×6.0	350	185°	7.5kw	12MPa
100NC	Φ100×4.5	400	185°	11kw	12MPa
120NC	Φ120×5.0	500	185°	15kw	12MPa
159NC	Φ159×10	550	185°	22kw	14MPa
168NC	Φ168×14	700	185°	22kw	14MPa
219NC	Φ219×18	850	185°	30kw	14MPa

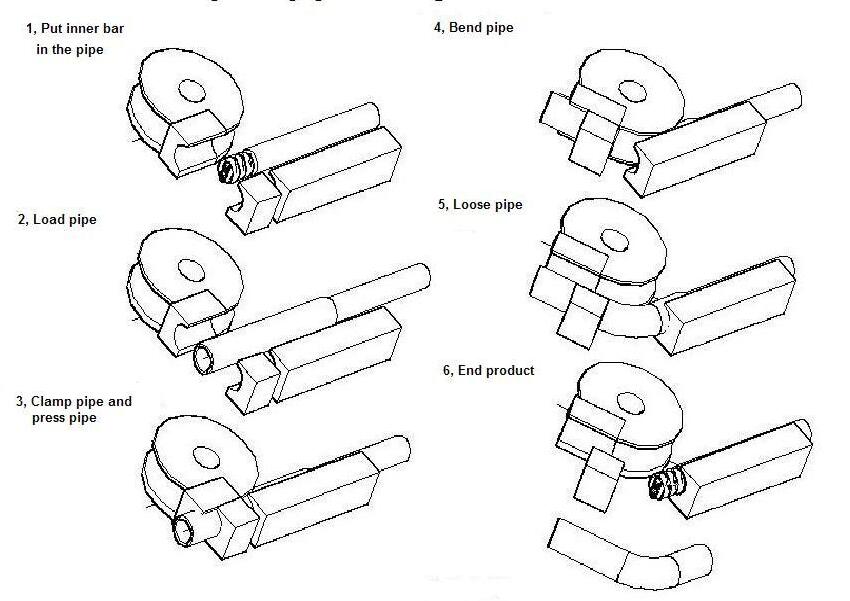

The Steps of Pipe Bending Machine

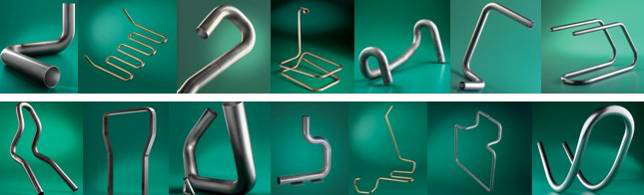

These Shapes Can Be Bent

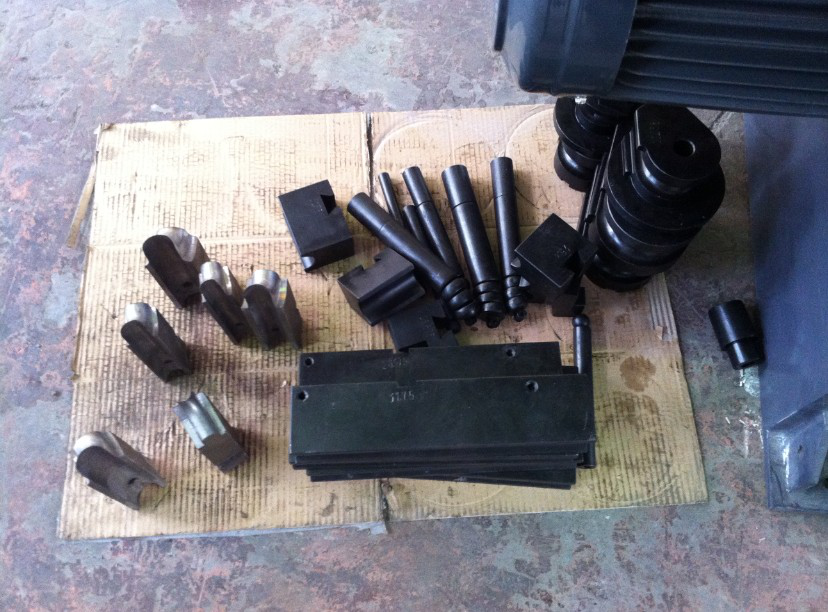

 Bend tooling (Include: bend die, mandrel, pressure die, clamping die, wiper die)

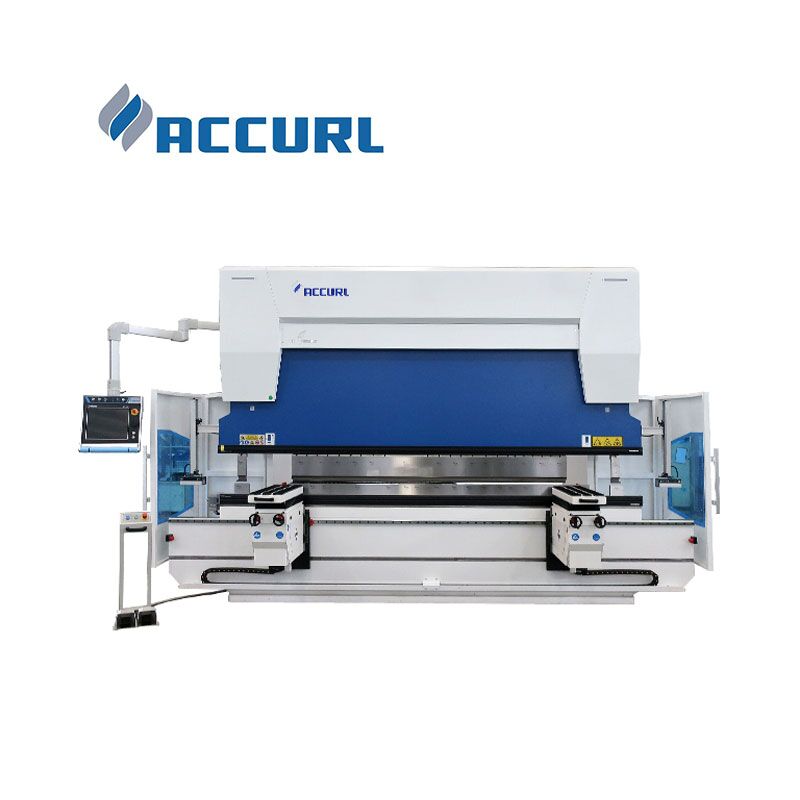

CNC Press Brake

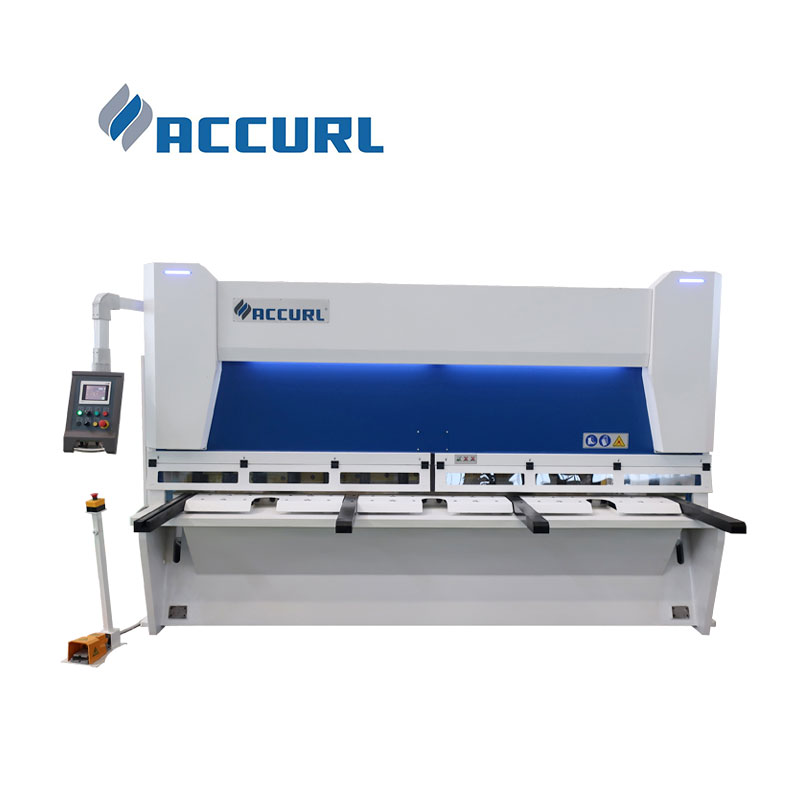

Hydraulic Guillotine Shearing Machine

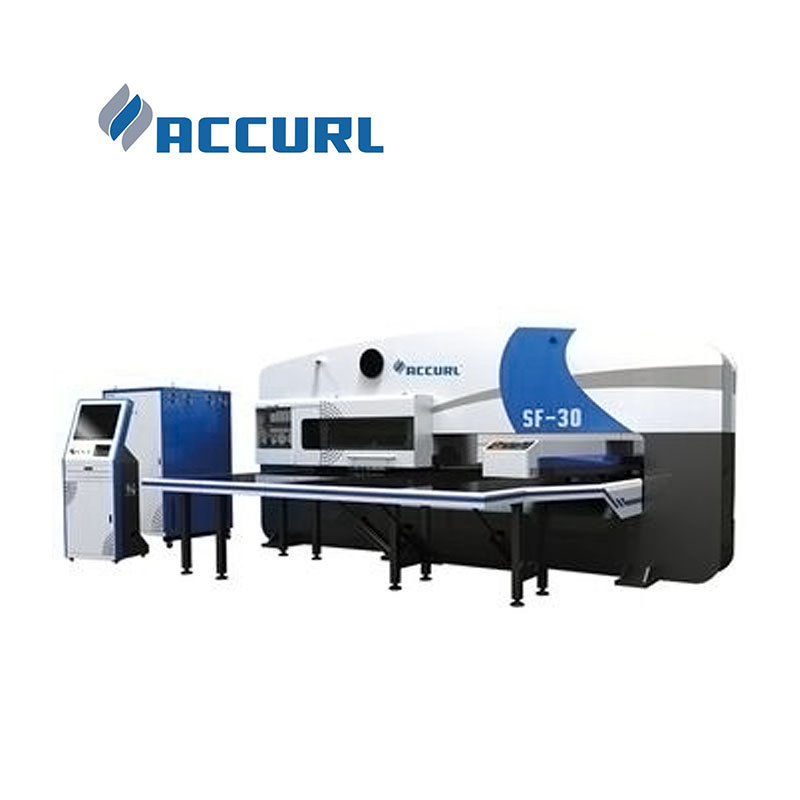

CNC TURRET PUNCHING MACHINE

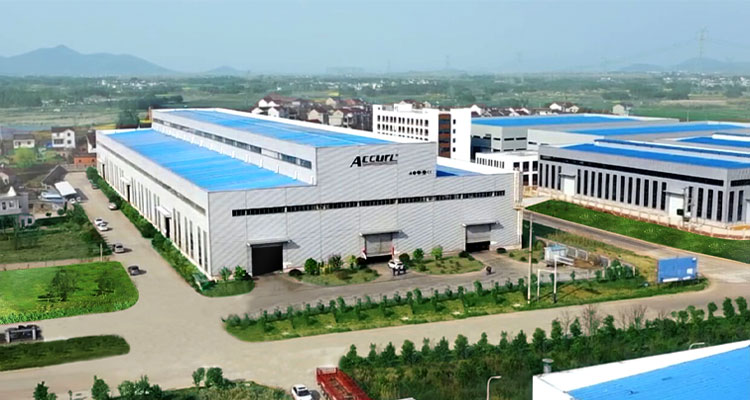

Company Profile

Why choose us?

ACCURL is a famous manufacturer of metal sheet equipments in world market. Its Brand ¡°Accurl¡± has been leading brand for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales.
Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities.

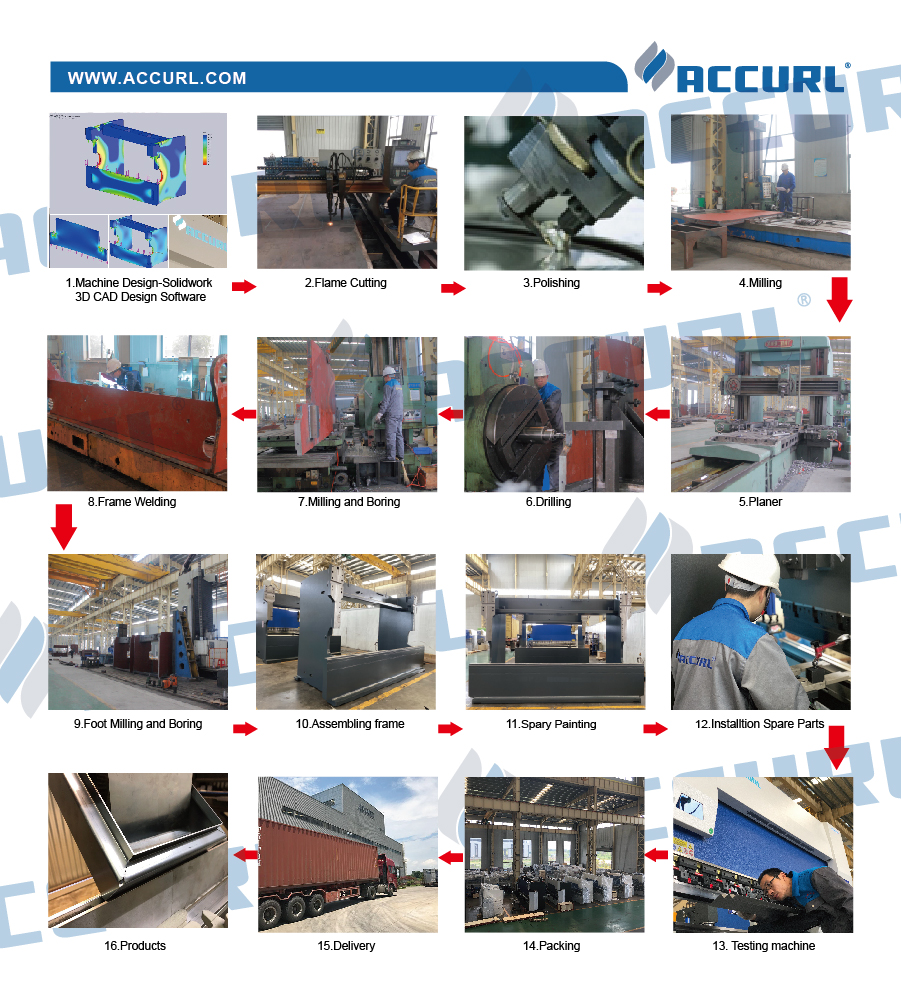

Technological Process

Price

Price US$ 4200 / Set

Product Image

Accurl 129NC Pipe and Tube Bending Machine Tube Bender with Easy-to-read Degree Indicator

Accurl 129NC Pipe and Tube Bending Machine Tube Bender with Easy-to-read Degree Indicator 2

Accurl 129NC Pipe and Tube Bending Machine Tube Bender with Easy-to-read Degree Indicator 3

Accurl 129NC Pipe and Tube Bending Machine Tube Bender with Easy-to-read Degree Indicator 4

Accurl 129NC Pipe and Tube Bending Machine Tube Bender with Easy-to-read Degree Indicator 5

Accurl 129NC Pipe and Tube Bending Machine Tube Bender with Easy-to-read Degree Indicator 6
