Acrel Agf-m Solar Pv DC String Monitoring Device

Add to Basket Share to :

Price

US$ 1000

Min Order Quantity1 Set
Supply Ability500000pieces/month
Delivery Lead Time7days
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jiangsu Acrel Micro-grid Research&Development Institute
Membership Free member
Registration Date2023.08.22
Country/RegionChina
CityJiangyin
Contact acrel1(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.acrel1

Jiangsu Acrel Micro-grid Research&Development Institute

* Buying Product

Category : Solar Energy Systems

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords solar output monitor

Description by Manufacturer

ACREL AGF-M SOLAR PV DC STRING MONITORING DEVICE

AGF-M solar system monitoring device is specially used in the intelligent photovoltaic confluence box to monitor the operating state of the photovoltaic cell array. It can measure the photovoltaic cell current, collect the state of the lightning protection device in the confluence box and collect the state of the DC circuit breaker and the relay contact output. With sensor interfaces such as wind speed, temperature, and irradiance meter, the device has an RS485 interface to upload the measured and collected data and equipment status.

Specification of AGF-M Solar DC Combiner Box with String Monitoring Device

Item	AGF-M4T	AGF-M8T	AGF-M12T	AGF-M16T	AGF-M20T	AGF-M24T
Input channels	4	8	12	16	20	24
Rated current	DC 0~20A
Response time	1s
Accuracy	0.5 class
Temperature coefficient	400ppm
RS485 communication	RS485/Modbus-RTU protocol, 4800/9600/19200/38400bps
Additional function
Switch input	3-way input(optocoupler or dry contact mode)
General technical parameters
Temperature/ Humidity	Working temperature: -35~+65℃, humidity95%,no condensation, no corrosion gas place
	*Display module work temperature: -20~+70℃
Temperature measurement function	To measure the inner temperature of the box （-20℃～100℃）
Altitude	≤3000m
Insulation resistance	≥100MΩ
Industrial frequency withstand voltage	power/communication/switching input/cell voltage input--AC 2kV/1min
	(When the auxiliary power supply is DC1500V, the withstand voltage between the power supply, photocell input and other circuits is AC 2.7kV)
	Current input/power, cell voltage, communication, switching
	state—AC3.5kV/1min
EMC	GB_T 17626.2-2006;
	Electrostatic discharge immunity test 3rd grade, air discharge 8kV, contact discharge 6kV.
	GB_T 17626.4-2008；
	Electrical fast transient immunity test grade 4, common mode 4kV, difference mode 2kV
	GB_T 17626.5-2008；
	Surge(shock) immunity test grade 4, common mode 4kV, difference mode 2kV
	GB_T 17626.8-2006；
	Power frequency magnetic field immunity test grade 4

Features of AGF-M Solar Generation Meter Monitoring Device

It has a relay output, which can be set as a jog mode, used to drive the automatic opening and closing of the DC circuit breaker;

The on-site digital tube displays the input current of each channel in a cycle, and has an automatic shutdown energy-saving display mode;

It can be equipped with dual-channel RS485 interface, supports ModbusRTU communication protocol, and the communication address, baud rate, and data mode can be set freely.

If you want to know more kinds of solar panel energy monitor, please visit our website.

Now the price of oem energy meter is reasonable, if you are interested, please leave us a message.

Price

Price US$ 1000 / Set

Packaging & Shipping

- PackingIt is packed in a crash bag and then put into a cardboard box.
- Delivery Lead Time7days
- Minimum Order 1 Set
- Supply Ability500000pieces/month
- Shipping Career

Product Image

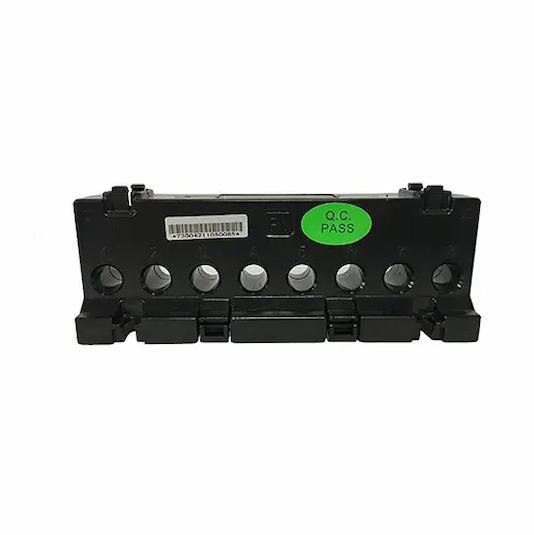

Acrel Agf-m Solar Pv DC String Monitoring Device

Solar Output Monitor Related Products

Company Profile

About Jiangsu Acrel Micro-grid Research&Development Institute

Membership Free member
Registration Date2023.08.22
Country/RegionChina
CityJiangyin
Contact acrel1(Ms.)

Jiangsu Acrel Micro-grid Research&Development Institute, the manufacturer base located in Jiangyin, Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.
