EA-J100 Agricultural Drone: Beyond Imagination, Superior Performance
Advanced Safety Assurance System

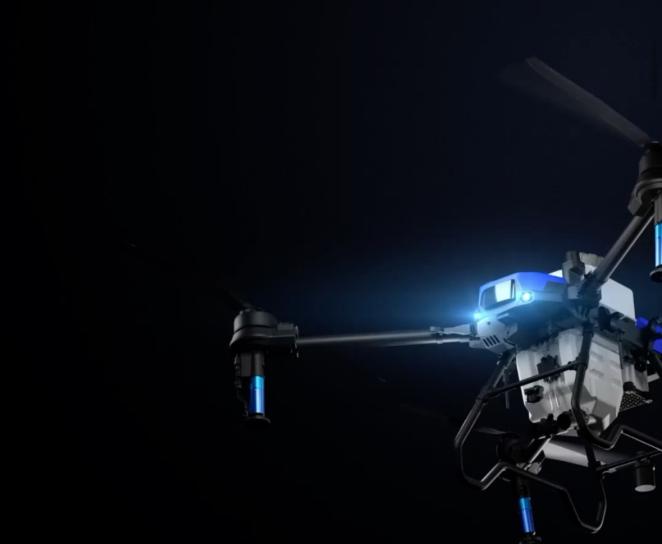

The EA-J100 agricultural drone is equipped with a brand-new laser compound eye recognition system. Based on the multi-ALS spot line array scanning technology, both the field of view angle and the detection distance are increased to three times the original. Its detection range can cover the area of a football field, and it can accurately distinguish obstacles with a minimum diameter of 1 cm. It can precisely identify obstacles such as withered branches, utility poles, and power lines in the working environment, providing all-round safety protection for flight.

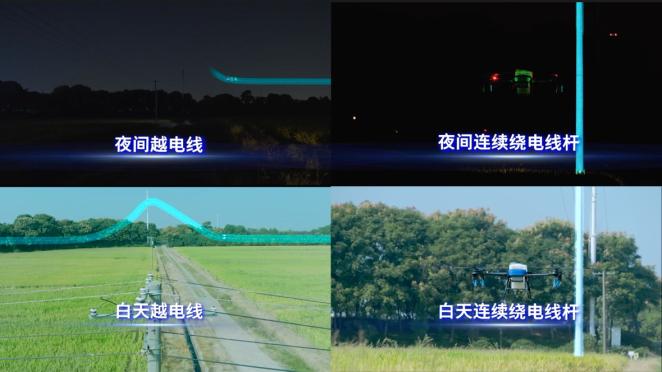

The onboard chip has powerful computing power, which can construct a three-dimensional map of the working environment in real-time and autonomously plan a safe flight path. Whether it is various complex terrains such as plains, water surfaces, or mountains, it can achieve precise obstacle avoidance and terrain-following flight at a high speed of 10 m/s. In addition, the drone also has an open night flight obstacle avoidance function, enabling it to operate day and night without distinction, and there is no need for additional marking of obstacles. Even in areas with many power lines and complex environments such as orchards, when 4 mist nozzles are open, it can still achieve 90-degree terrain-following flight, power line shuttling, and flexible steering at night.
Precise Terrain-following Flight Technology
The innovatively developed ultra-low-altitude terrain-following and canopy-following precise flight control technology, equipped with a front-view ALS spot line array, can construct the working scene through point clouds in real-time. It can achieve autonomous flight on slopes with an angle of less than 90 degrees. The deviation between the actual distance in the vertical direction from the slope and the set working height does not exceed 0.6 meters, and it can also perform precise terrain-following operations within the tree canopy of 30 meters.
Upgraded Nozzles and Excellent Atomization Effect
The third-generation CCMS normal-temperature mist nozzle has been comprehensively upgraded. With a new variable water outlet design, the atomization is more uniform, and the droplet size can be continuously adjusted within the range of 10-300 microns, covering the entire water volume range of 24 liters per minute. It is equipped with a high atomization and large flow spray disc as standard, suitable for different working scenarios such as orchards and large fields, and at the same time, it improves the service life of the nozzle.

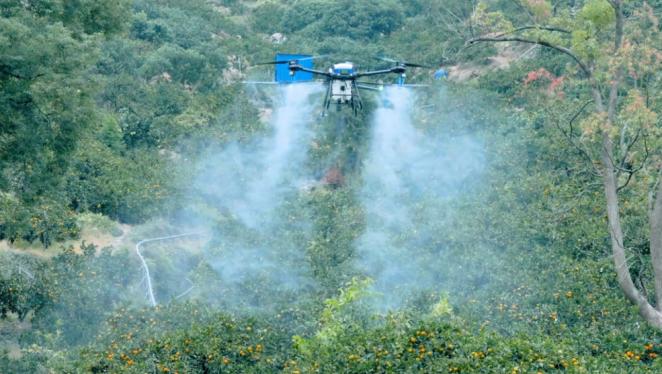

The innovatively developed MCRFF mist counter-rotating hoisting fluid field perfectly matches the full particle size range of 10-300 microns. Combined with the downwash hoisting fluid field of the drone, it forms a large-scale counter-rotating diffuse wind-mist field at the front and rear edges of the aircraft body. It realizes the upward rotation and lifting from the bottom, the two-way penetration from top to bottom at the top, and the horizontal diffusion from left to right in the middle, making the drug deposition more transparent and evenly distributed.
High-efficiency Operation Performance
Equipped with a 56-inch high-efficiency propeller, the maximum pulling force of a single propeller can reach 53 kg, and the full-load thrust-to-weight ratio is as high as 2.0. It is equipped with a standard 45-liter large medicine tank (a 60-liter tank is optional). The maximum flight speed is 13.8 m/s, and the effective spraying width can reach 10 meters. The takeoff and landing are synchronized with turning, and the drifting turning and row changing provide excellent wind-mist synchronization and dynamic response capabilities. The comprehensive operation efficiency can reach 360 mu/hour.
High-performance Battery and Convenient Charging
The CTB shell-core integrated high-temperature-resistant supercharging battery adopts a blade-like battery structure design, which can realize two-battery cycle operation in a high-temperature environment of 40°C. The dual charging and discharging interface design effectively solves the problems of dirt short-circuit and overheating of the interface during high-temperature operation in summer. Equipped with a 9000W integrated heat dissipation charger, it can be fully charged in as fast as 9 minutes. It supports the free switching between fast charging and slow charging modes, and is compatible with both generator and mains power charging, meeting the charging needs of various scenarios, ensuring high efficiency, safety, and quick start of work.
Friendly Human-machine Interaction Experience
The high-performance remote controller has a communication distance of 3 km, a vehicle-grade 7-inch ultra-clear large screen, a 6-nanometer 8-core vehicle-grade processor, and is equipped with a powerful cooling fan, providing strong computing power for faster operation.
A new hand-flying enhanced mode is added. In the manual mode, it can achieve quantitative, constant speed, constant height (fully open to an altitude of 30 meters), and directional flight, and has an omnidirectional obstacle avoidance function. There is no need for plot surveying and mapping, and it can quickly turn around and change ridges with one click, realizing safe and precise manual operation.

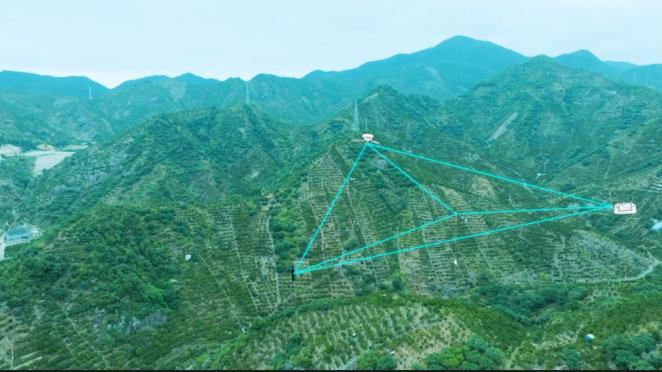

The Extreme Link Communication Station integrates four major functions: high-precision surveying and mapping, offline base station, signal relay, and lifting guidance, and is not afraid of environments with no network, weak network, or mountain blockage.
Comprehensive Functions with Multiple Capabilities
1. Lifting Function: The brand-new intelligent lifting function has a maximum lifting capacity of 60 kg, with quick installation and disassembly and automatic unhooking. The innovative automatic guidance design solves the problems of difficult point finding in manual lifting and high risk of flight misjudgment. It can achieve one-click point finding between the takeoff point and the lifting point, autonomous flight, and greatly improve the lifting efficiency.
2. Spreading Function: It can be quickly replaced with a 50-kg spreading box, equipped with a rotating material breakage sensor for more accurate material breakage judgment. With a replaceable blade agitator, the spreading speed can reach 110 kg/minute. By intelligently calculating the movement trajectory of the materials, the spreading width can be precisely set, and the error is controlled within 10 cm, significantly reducing the phenomenon of repeated spreading and missed spreading.
3. Surveying and Mapping Function: Using a high-definition FPV camera for aerial photography and mapping, the FPV resolution can reach 1080P, with ultra-low latency and a 130° field of view. It can achieve the rapid stitching of high-definition aerial survey maps. The stitching of a 50-mu plot can be completed in as little as 5 minutes. Just circle the area and start flying, eliminating the trouble of manual area circling and doubling the operation efficiency.
Product Parameters
Power Specification Information: CNF569-CM-X13-13825-60KV-D50-CW
