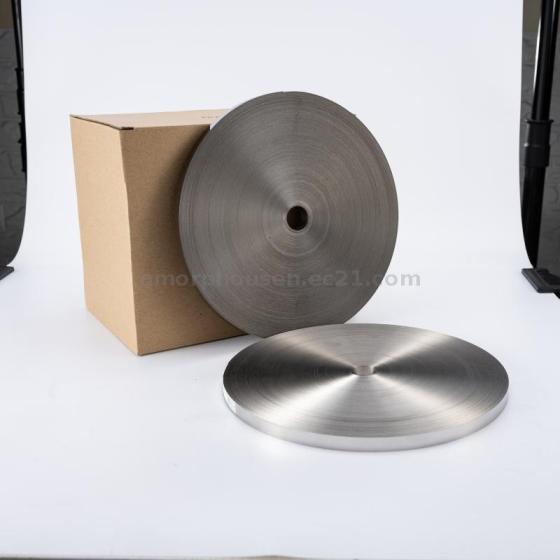

Amorphous Ribbon

Add to Basket Share to :

Price

US$ 0.01

Min Order Quantity100 Piece
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Beijing Bidragon International Industrial and Mining Machinery Co., Ltd
Membership Free member
Registration Date2023.11.14
Country/RegionChina
CityAnyang
Contact Cherry Hao(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Cherry Hao

Beijing Bidragon International Industrial and Mining Machinery Co., Ltd

* Buying Product

Category : Magnetic Materials

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Bidragon
- Place of Origin China
- Supply Type Longtermsupply
- Condition New
- Color White
- Related Keywords Amorphous Ribbon

Description by Manufacturer

Introduction Real Fe-Based Amorphous Ribbon is an ultra-fine grain structure that has high permeability, high saturation magnetic induction, low loss and excelent stability. It can satisfy the requests of electronical products which is high frequency, large current, small volume and energy-saving. Especially it can replace the silicon steel, permalloy and ferrite and be used to all kinds of electronical products widely.
Item	Performance	Item	Performance
Magnetic saturation induction intensity Bs(T)	1.56	Saturation magnetostriction coefficient	0.000027
Curie temperature Tc (℃）	400	Density ρ(g/cm³)	7.18
Crystallization temperature	515	Resistivity δ(μΩ▪cm)	130
Hardness Hv	960	Coercivity Hc(A/m)	<4

Specification of Fe-based amorphous ribbon
Width (mm)	Thickness (mm)
5	28
6.5	28
15	28
35	28
50	28
70	28

Price

Price US$ 0.01 / Piece

Product Image

Amorphous Ribbon Related Products

Company Profile

About Beijing Bidragon International Industrial and Mining Machinery Co., Ltd

Membership Free member
Registration Date2023.11.14
Country/RegionChina
CityAnyang
Contact Cherry Hao(Ms.)

BIDRAGON is a group company, amorphous ribbon, nanocrystalline ribbon, amorphous core, nano core, DC immune CT core are one of our main products.
As a group company founded in 2009, BIDRAGON has its own design research and development department, product department , quality inspection departments, sales department, shipping department and after-sale department.
Our main products:
Ribbon: Amorphous ribbon, Casted nanocrystalline ribbon, Slitted nanocrystalline ribbon.
Cores: Precision Current Transformer Cores, Instrument Transformer Cores, Toroidal Core for Switched Mode Power Supply, PFC Choke Cores, Cores for Electro-Magnetic Earth Leakage Circuit Breakers, Power Transformer Cores, Rectangular Cut Cores, Medium Frequency Power Transformer cores, High-frequency Transformer Cores, Network Transformer Toroidal Cores, Common Mode Choke Cores, DC Immune CT Cores, Co-based Cores and other cores.
