Product Attributes

- Model Number YES-ATS
- Place of Origin Korea
- Related Keywords antenna training

Description by Manufacturer

Features

Characteristics analysis of a variety of radio signals such as DCS, PCS and IMT-2000
Supply of an optimal propagation parameters calculation program
A comparative analysis of theoretical data and measured data
Radio signal character analysis according to variety of antenna types

Experiments

Chapter 1. Introduction to ATS and Installation
Test 1. Introduction to ATS
Test 2. Introduction to SATLink 1.0 and How to Use

Chapter 2. Tests to Analyze RF and Antenna Characteristics
Test 3. Features of Radio Waves and Electric Field Strength
Test 4. Antenna Characteristics and Parameters
Test 5. Features of Dipole and Monopole Antennas
Test 6. Features of Patch Antennas
Test 7. Features of Rectangular CPW Patch Antenna, Slot Antenna
Test 8. Features of Rectangular CPW Patch Antenna, Slot Antenna
Test 9. Features and analysis of Standing wave

Chapter 3. Test to Analyze Characteristics of Mobile Radio Signals
Test 10. Analysis of Transmission line
Test 11. Short circuit line and Open circuit line
Test 12. Understanding of Smith Chart
Test 13. Induction of Smith Chart
Test 14. Smith Chart impedance matching by using the reactance
Test 15. Smith Chart impedance matching by using the stub method

Antenna Experiment
-Measuring a signal level as rotating in 360 degrees
-Radiation pattern, polarization character, Diversity reception characteristics
-Characteristics of RF frequency signal changes
-A comparative analysis of theoretical data and measured data

Standing Wave Experiment

-Waveform measurement and data analysis according to frequency, medium, and polarization
-Measuring a signal phase difference between a direct wave and a reflected wave

Smith Chart Experiment

-Transmission line impedance measuring
-Impedance matching practice

Specifications

RF Frequency	DCS:868MHz, PCS:1840~1870MHz.IMT-2000:2110~2165MHz
IF Frequency	100MHz
Local Oscillator	Each RF Freq. + 100MHz
Antenna Mast (Mobile)	Antenna Angle Control Range: 0 ~ 360[degree] Antenna Angle Resolution: 1.8[degree] /Step Input Voltage: 5V, 18V
Mechanical Dimension	Main System (W x H x D, Weight): 257 x 111 x 316, Not Fixed Mobile Antenna Mast (W x H, Weight) : ] 53 x 375, Not Fixed Fixed Antenna Mast (W x H, Weight) : 1 53 x 375, Not Fixed
Antenna	DCS,PCS dipole antenna Each 1 SET, PCS monopole antenna 1 SET PCS microstripantenna 1 SET, IMT-2000 rectangular patch antenna 1 SET IMT-2000 circular patch antenna 1 SET, Slot Antenna 1 SET Rectangular CPW Patch Antenna 1 SET, Yagi-UdaAntenna 1 SET Coupled Type Omni Antenna 1 SET Omni Directional Type Omni Antenna 1 SET, Dipole Type Patch Antenna 1 SET
Other	GUI : Win98/2000/me/NT based PC, USB cable t Power Supply : 84~240V(AC), 50~60 Hz

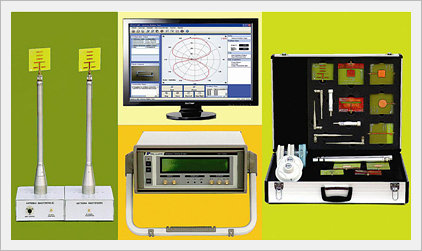

Product Image
