Antennahome Spring Dip,433m Antenna for ISM 433MHz System, LoRa / Remote /Transfer /Recciever

Add to Basket Share to :

Price

US$ 0.08 ~ 0.09

Min Order Quantity3000 Piece
Supply Ability1000000 pcs per month
Portshenzhen
Delivery Lead Time3 to 7 days
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name AntennaHome
Membership Free member
Registration Date2024.06.04
Country/RegionChina
CityShenzhen
Contact Bin(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name AntennaHome
- Model Number AH1G.301
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Gold
- Frequency 433 MHz
- Impedance 50ohm
- VSWR less than 2.0
- Gain 1.0 dBi
- Mounting DIP
- Size 5.5L*36.0mm
- Weight 0.7 g/pc
- Related Keywords 433Mhz Antenna, antenna, spring antenna, copper antenna, Antenna for ISM System

Description by Manufacturer

Product : Spring DIP ,433M Antenna PN : AH1G.301 Application : ISM 433MHz system, LoRa / Remote /Transfer /Recciever ;
AH1G.301
Electrical Properties)
Frequency：	433 MHz
Impedance：	50Ω
VSWR：	≤2.0
Gain：	1.0 dBi
Polarization:	Vertical / Omni
Mechanical Properties
Conn&Cable：	/
Material&Color：	Copper
Mounting:	DIP
Size:	¢5.5×L36.0 mm
Weight:	0.7 g/pc
Operate Temp:	（-40 ~ +85 ℃

【Products 】
Antenna

- All frequency range antennas from 300MHz to 6GHz ;
- Covered ISM band ,315M/433M/470/868M/915M/2.4G;WIFI/BT/ZIGBEE,Z-wave ; 2G-GSM/GPRS/3G--WCDMA/4G-LTE/5G; NB-IoT/Cat.1; LoRa; UWB ;RFID-915M/2.4G;GNSS/GPS/BD;
- Internal antenna ,chip antenna,spring antenna ,metal antenna ; pcb+cable ,fpc+cabel ;
- External antenna ,Rubber antenna ,Metal antenna,Magnetic antenna ,On-box antenna ,Directly antenna ;fiberglass antenna ;

RF Cable Assy

- All kinds cable assembly with connector and cable
Connector : SMA/SMB/MCX/MMCX,BNC/TNC/N-TYPE,Fakra,U.FL/IPEX/IPX/,
Cable : RG113/RG-174/RG178/RG316;

RF connector

- SMA/SMB/MCX/MMCX,BNC/TNC/N-TYPE/F-TYPE,Fakra,U.FL/IPEX/IPX/,

Our Advantage

【 R&D Dept. 】

- More then 15 years RF engineers .
- Excellence sales manager who followed end customers .
- Professional RF performance test lab with Network analyzer, Spectrum analyzer ;3D OTA chamber ;

【 Manufacture 】

- 800+ square meter workroom ;
- All produce program under ISO9001 system ;
- 100% tested before delivery ;

Price

Price US$ \ 0.08 ~ 0.09 / Piece

Packaging & Shipping

- Packing3000pcs per bag
- Packaging Size20 x 15 x 5 ( Centimeters)
- Package Weight 2.1 ( Kilograms )
- Delivery Lead Time3 to 7 days
- Minimum Order 3000 Piece
- Supply Ability1000000 pcs per month
- Total quantity in StockOver 5000
- Delivery Portshenzhen
- Shipping Career

Product Image

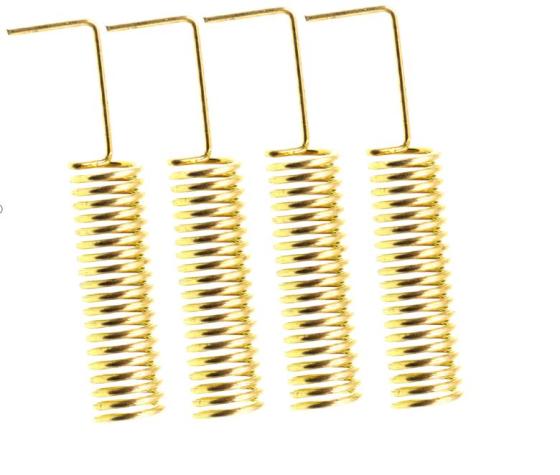

Antennahome Spring Dip,433m Antenna for ISM 433MHz System, LoRa / Remote /Transfer /Recciever
