Atom N2600/N2800 CPU Fanless Industrial Embedded PC Mini PC Box PC NIS-886

See Larger Picture : Atom N2600/N2800 CPU Fanless Industrial Embedded PC Mini PC Box PC NIS-886

Company Name:Shenzhen Yacoo Technology CO.,Ltd.
Membership:Free member
Registration Date:2008. 11. 27
CountryRegion:China
City:Guangdong
Contact:Dai ping(Ms.)
Related Keywords:Fanless Industrial Box PC, Embedded Mini PC, industrial PC

Share to :

Contact Now* Send an Inquiry to this supplier.

Start Order

Report Item

Product Details Company Profile Transaction History

Place of Origin :China

Description

Processor	CPU	Intel® Atom™Cedar Trail processor N2600 / 2800
	CPU Package	Onboard
	FSB	800 / 1067Mhz
	Chipset	CG82NM10
	BIOS	System BIOS: SPI BIOS
Memory	Architecture	Onboard 1GB/2GB DDR3
	Capacity	Max. 2GB
	Socket	Onboard
Display	Graphic Controller	Intel® 3600/3650 graphic media accerlator
	LCD	N/A
		N/A
	LVDS	N/A
		N/A
	DVI	N/A
		N/A
	HDMI	Support HDMI 1.3, type A, 19pin
		Max. Resolution: 2560 * 1600
	VGA	DB15
		Max. Resolution: 1920 * 1200
	Dual Display	VGA+HDMI
LAN	Controller	LAN 1: Intel 82583 GbE Lan
		LAN 2: N/A
Audio	Controller	Realtek HD ALC662 audio decoder(LINEOUT + Mic ) Amplifier Output: Max. 6W
Super I/O	Controller	N/A
H/W Monitor	Watch Dog Timer	N/A
	Smart Fan	N/A
TPM	Controller	N/A
I/O	USB	6* USB 2.0/1.1 compatible
	Serial Port	1* RS232
	Parallel Port	N/A
	PS/2	N/A
	GPIO	N/A
	IR	N/A
Expansion	PCIeX16	N/A
	PCIeX4	N/A
	PCIeX1	N/A
	PC104	N/A
	PCI	N/A
	Mini-PCIe	1* Mini-PCIe socket, support WIFI/3G wireless network
	UIM Scoket	1* standard SIM card socket
Storage	SATA	1*SATA (7+15pin SATA socket)
	IDE	N/A
	SSD	N/A
	SD	N/A
	Compact Flash	N/A
Power	Power Type	Wide range voltage input: DC+9-28V
	Power Consumption	Typical power: 12W
Environment	Operating Environment	-20°C ~ 60°C
	Storage Environment	-40°C ~ 85°C
	Operating Humidity	10% ~ 90% relative humidity, non-condensing
	Storage Humidity	10% ~ 90% relative humidity, non-condensing
Form Factor	Dimensions	145mm * 135mm * 32mm (LWH)
	Weight	1.28Kg
Regulatory Compliance		FCC, CE, RoHS compliant

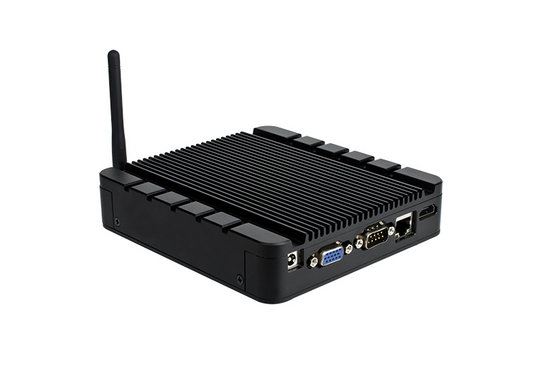

Product Image

About Shenzhen Yacoo Technology CO.,Ltd.

Shenzhen Yacoo Technology Co.,LTD is a high-tech enterprise which devotes itself to the development and design of embedded OS. Up to now, our company has presented several designs of embedded industrial low consumption motherboard and BOX IPC. Meanwhile, we have established fairly well partnerships with many well-known IT brands by providing them with ODM/OEM service of embedded software and hardware. Our products are extensively applied to many industries, such as finance intelligent terminal, security defense system, network application, medical treatment, electric power apparatus, online water quality monitoring, digital household applications, etc.. With our persevering endeavor and pursuit, we are providing professional solution programs for human life automation.
