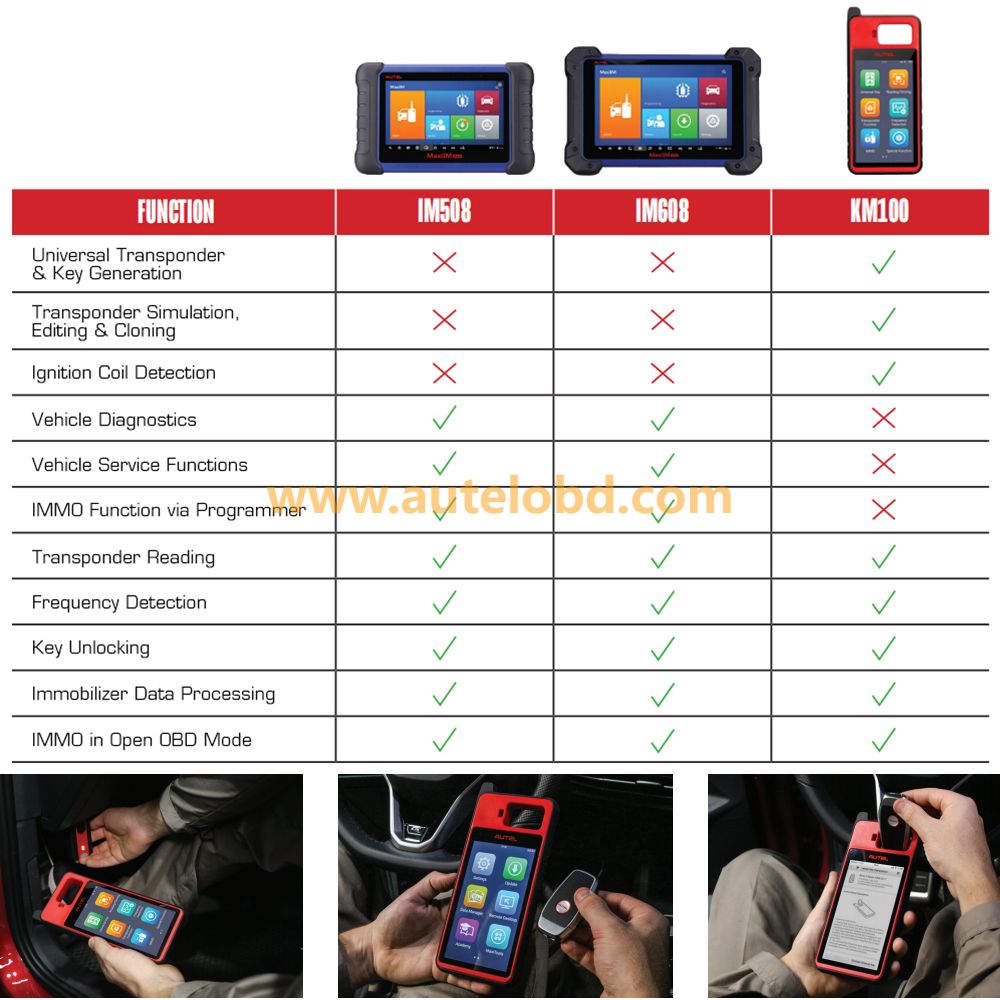

Newest Autel MaxiIM KM100 Universal Key Creation & OBD IMMO Learning Tool PK MaxiIM IM508 IM608 37+ Models AutoVIN
Autel MaxiIM KM100:

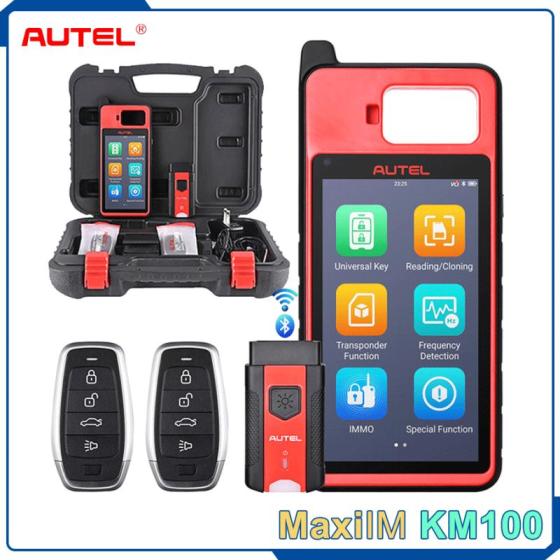

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.
Key Functions:
• 60-Second Key Generation (Autel Universal Only)
• Transponder Reading/Writing/Cloning
• Frequency Detection & Ignition Coil Detection

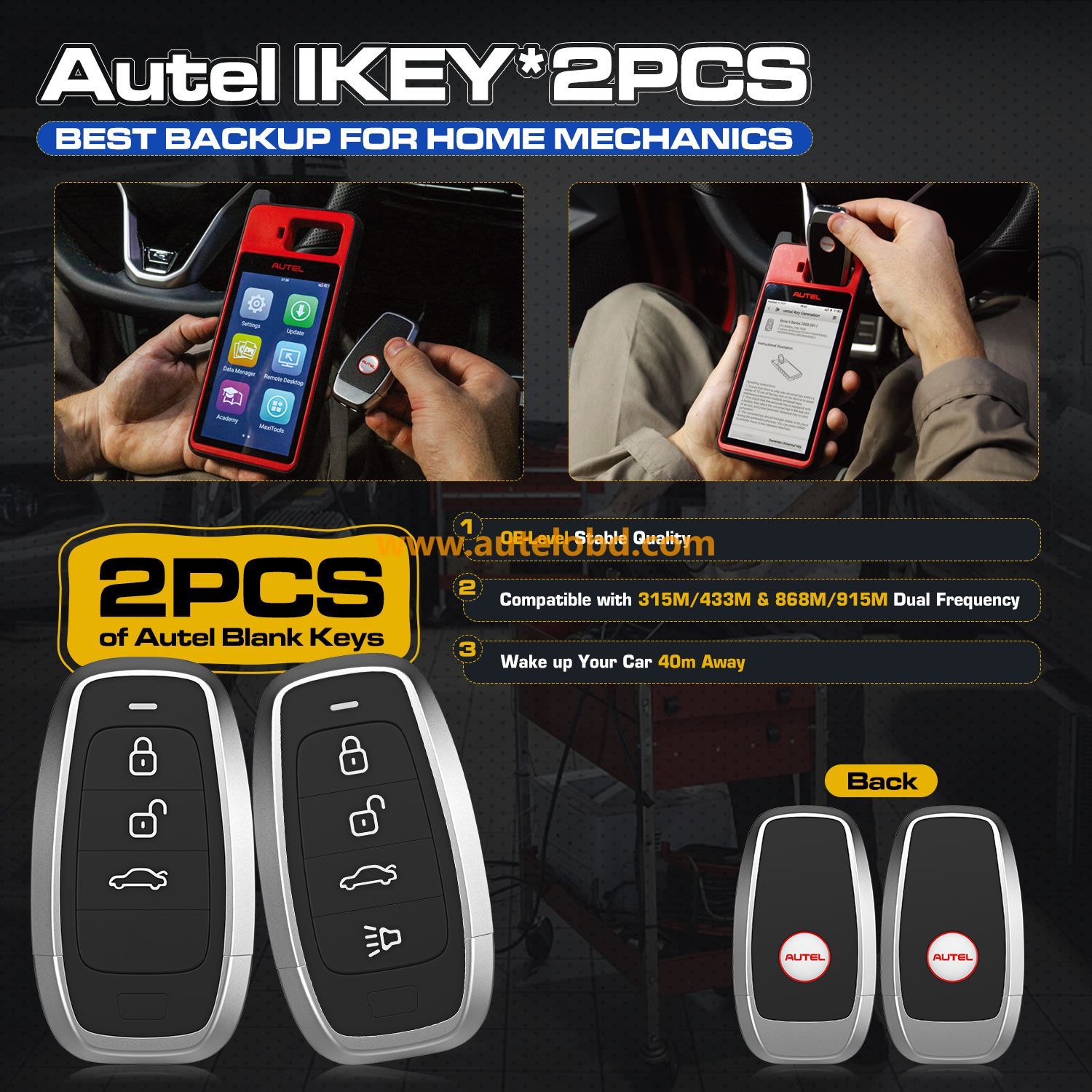

• Compatible With Autel Blank Universal Smart Keys
• Key Renewal: Supporting 36 Vehicle Makes
• Transponder Editing: Supporting 20 Categories
• Dual-Band, High Frequency Transmitter 315m/434m or 868m/915m
• Supporting Certification Requirements of Various Regions
• Supporting PLC V200
• Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
• Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
• Chip Read & Write, Cloning and Frequency Detection
• AutoVin vehicle identification to ensure accuracy
• Simple User Interface with Concise Instructions
• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery
Vehicle Compatibility:
• Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
• Supporting 8 Key Series And 37 Models
• Covering The Top 100 Selling Models In North America For The Last 10 Years
8Serices IMMO Types: ID46, ID47, ID49, ID4A, ID5C, Megamos 48, MQB. (ID4D: ID4D only has remote control. If the key is out of power and the vehicle cannot be started in an emergency, an additional 4D transponder need be installed)

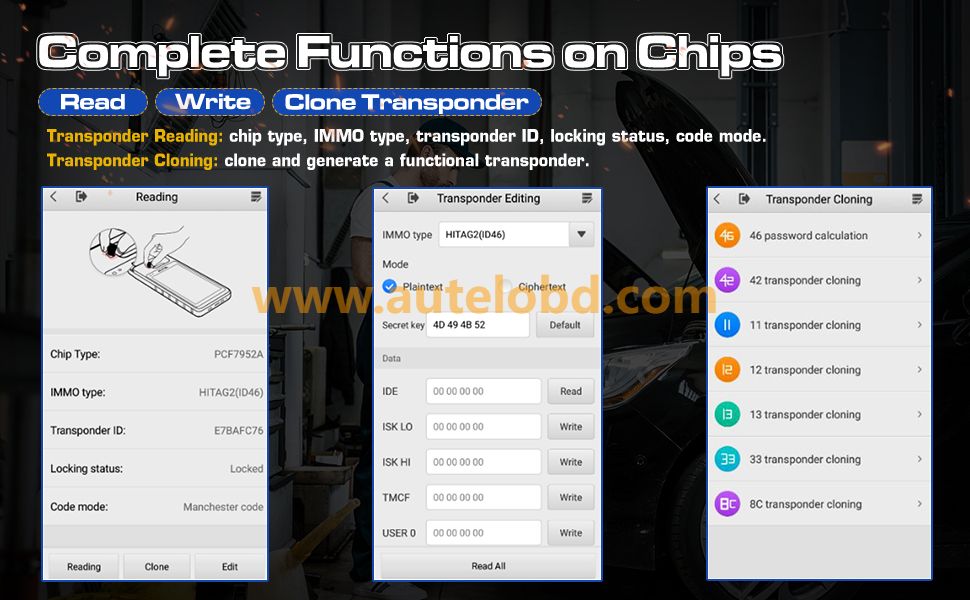

Transponder Reading/Writing/Cloning:
1. Transponder Reading:
Transponder reading gives you the access to some basic information of the key, including chip type, IMMO type, transponder ID, locking status, and code mode. To read the transponder information, place the transponder into the transponder slot or put the key into the key slot and tap the Read button. The Transponder Information screen will appear.
2. Transponder Cloning:
You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.
The KM100 supports various transponder types for cloning and editing. Choose the corresponding cloning procedure according to your transponder identification number (ID).
• 46 password calculation
• 42 transponder cloning
• 11 transponder cloning
• 12 transponder cloning
• 13 transponder cloning
• 33 transponder cloning
• 8C transponder cloning
3. Transponder Editing:
This function helps you read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs. When a writing operation is successfully done, a “writing succeeded” message will appear, and you may move to another operation.

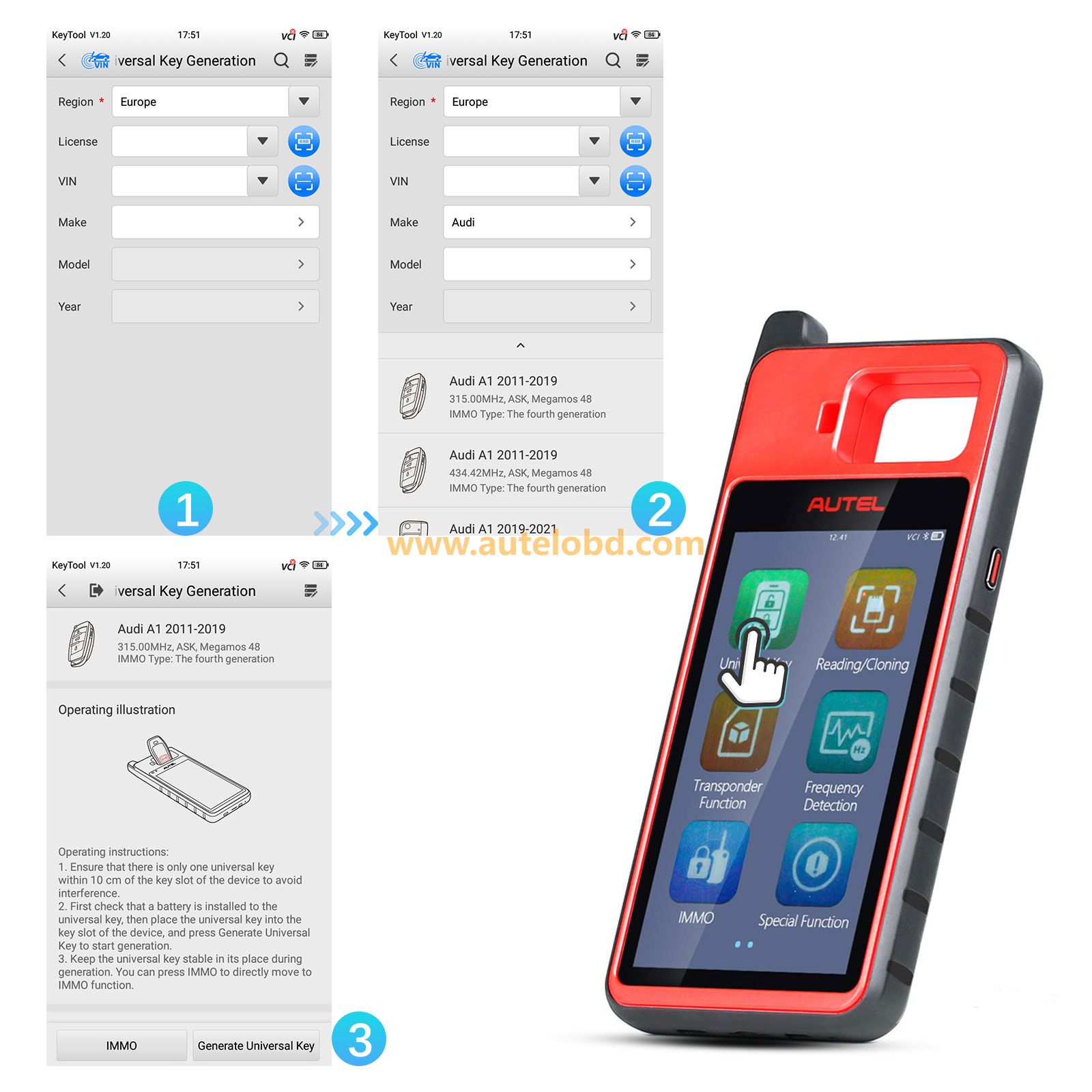

How to Do Key Generation via Autel MaxiIM KM100?
1. Automatically scan the VIN code to obtain vehicle information
2. Obtain model information by scanning the VIN barcode on the nameplate
3. Scan the license plate number to confirm the model, if you can't scan it, you need to enter it manually
4. PLC V200 Bluetooth picks up the car, after generating the remote control, you can directly select the immo function to match the key, without the need to push back to the main interface to select the IMMO function, and then re-select the model.
Autel MaxiIM KM100 Supported List:
Such As：Acura, Alfa, Audi, BAICHuansu, BAICMotor, BaicNe, BaicSenov, BAICWeiw, Baojun, Bmw, Borgward, BYD, CfMotor, ChangAn, ChanganSuzuki, Changhe, Chery, Chrysler, Citroen, Dacia, DFVenucia, Dodge, DS, Emgrand, EXEED, Fawcar, Fiat, FiatBrazil, Ford, FordAU, FordChina, FordEU, GACMotor, GM, GreatWall, Haval, Holden, Hyundai, Infiniti, JAC, JAC, Jaguar, JEEP, JETOUR, JMC, Karry, Kia, LandRover, LandRover, Maserati, Mazda, Mitsubishi, Nissan, Opel, Ora, Perodua, Peugeot, Porsche, Renault, Roewe, SaDatong, Seat, Skoda, Suzuki, Toyota, Traum, Volkswage, WEY, ZOTYE.
For more, please contact Us!
IKEY_V1.60_Key Function List:

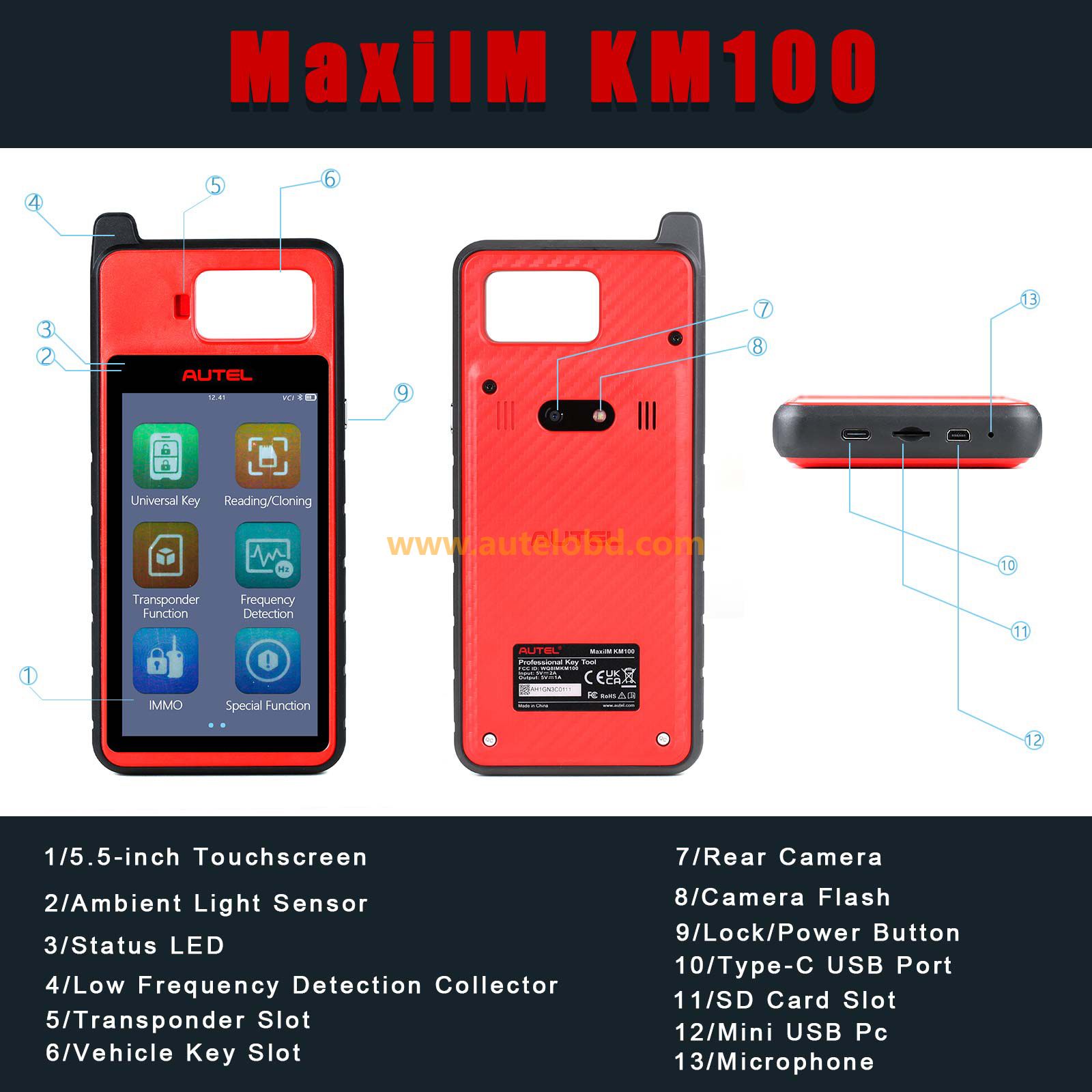

Specifications:
Operating System: Android™ 9.0
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Memory: 2GB RAM/64GB on-board memory
Screen: 5.5-inch screen with 1280 x 720 resolution
Camera: 8 megapixels
Connection: Wi-Fi; Bluetooth 5.0; USB 2.0 type C
Battery: 4950mAh lithium-polymer battery
VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/Output: MIC: supported; Speaker: supported
Dimensions (WxHxD): 200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87”)
Weight: 352.7g (0.8 lb)
Operating Temp: 10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)
