Product Attributes

- Brand Name onepaper
- Model Number OPH
- Place of Origin China
- Related Keywords box facial tissue, box-type packing, facial tissue packing, box packing machine

Description by Manufacturer

Five innovations:

High output. The stable speed can reach 80 boxes/minute.
Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
Rapid production changing. It only takes 10-20 minutes to change the specifications.
Convenient operation. It is easy to control the servo paper feeding and PLC control system.
Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.

Application range:
It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues, cotton tissues etc.
Main performance and structural features:

Packing forms such as automatic feeding, box opening, boxing, batch no. Printing, glue spreading, box sealing, etc. Are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line,which can greatly reduce labor cost.
The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
Change of specifications does not need change of molds, but can be realized through adjustment.
Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used,so that the machine is safer and more reliable.

According to customer requirements, the upturning type safety protective cover is adopted,which is featured by simple operation and beautiful appearance.

Performance technical parameters：

Item/model		OPH-100C/B-120	OPH-100C/B-190
Paper quality of carton		350-400g/m³	350-400g/m³
Maximum packing specification		L240mm×W120mm×H90mm	L300mm×W190mm×H60mm
Packing speed		30-100 boxes/minute	30-80 boxes/minute
Hot melt machine power		2.5KW	2.5KW
Motor power		3.5KW	4.2KW
Total power		6KW	6.7KW
Power supply type		（3phase 4wire） 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.8 Mpa
Air consumption		120-160L/min
Outline dimensions	Main machine	L3250×W1650×H1800mm	L3450×W1650×H1900mm
	Conveying mechanism	L4000×W660×H1200mm	L4000×W700×H1200mm
Machine weight		1500Kg	1800Kg

Price

Price Condition FOB

Packaging & Shipping

- PackingExported wooden case
- Delivery Lead Time40days
- Minimum Order1
- Supply Ability30 sets per month
- Delivery PortNingbo/Shanghai

Product Image

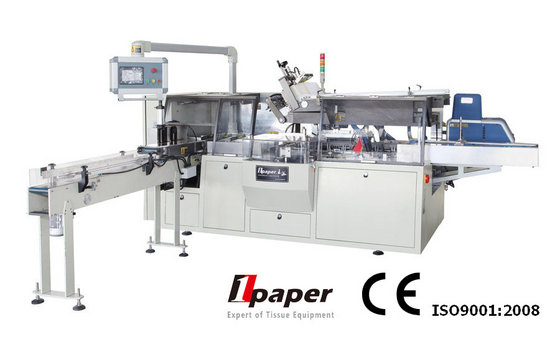

Automatic Box Facial Tissue Packing Machine
