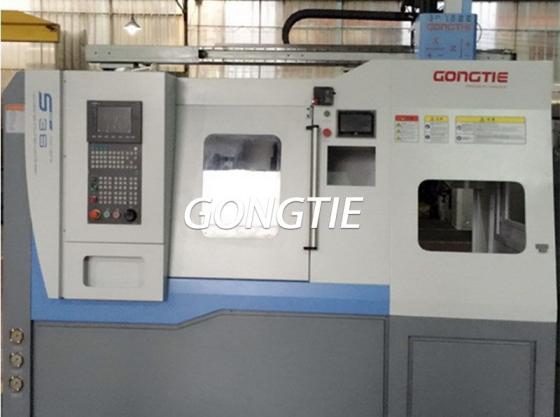

Automatic CNC Lathe with Gantry Loader
Precise ,stable and efficient S36 and S350 series, is a high competitive machine for realizing the precision machining,
heavy cutting.
* precision : components importing from Taiwan and Japan for the main configuration, through the installation and testing of advanced technology, can achieve the μ level of precision turning.
* stability : high rigid structure one casting, make more stable.
* high precision turning effectively combination of precision and rigidity, make the process more efficient. Synchronous electric spindle S36C and S350C series, is the best choice to replace the imported models
* more precise : the synchronous servo spindle and feed shaft configuration, which makes the processing accuracy into higher realms.
* more stable : the superior performance of the synchronous electric spindle play a higher performance faster and more stable.
* more efficient : core components (each axis) of the synchronous control, will bring higher machining efficiency.
|
|
|
|
|
|
|
|
|
|
Main parameters
|
UNIT
|
S36
|
S36C
|
S350
|
S36D
|
S350D
|
|
Capability
|
Max. swing diameter
|
mm
|
300
|
300
|
350
|
300
|
350
|
|
Max. turning diameter
|
mm
|
270
|
270
|
350
|
270
|
350
|
|
Max. turning length
|
mm
|
330
|
330
|
420
|
330
|
420
|
|
Max. bar through-hole
|
mm
|
26（35）
|
26（35）
|
40
|
26（35）
|
40
|
|
Axis Stroke
|
X-axis travel
|
mm
|
420
|
420
|
420
|
330
|
330
|
|
Z-axis travel
|
mm
|
330
|
330
|
330
|
420
|
420
|
|
Rapid Traverse
|
X/Z-axis
|
m/min
|
20
|
20
|
20
|
20
|
20
|
|
Spindle
|
Spindle nose size
|
N/A
|
A2-5
|
A2-5
|
A2-5
|
A2-5
|
A2-5
|
|
Spindle servo motor power
|
kW
|
3.7/5.5
|
3.7/5.5synchro
nous electric spindle
|
5.5/7.5
|
3.7/5.5
|
5.5/7.5
|
|
Spindle speed range
|
rpm
|
0～5000
|
0～5000
|
0～4500
|
0～5000
|
0～4500
|
|
Work piece clamping method
|
N/A
|
36 collet
（5'hydraulic chuck）
|
36 collet
（5'hydraulic chuck）
|
6' hydraulic
chuck（42 collet）
|
36 collet
（5'hydraulic chuck）
|
6' hydraulic
chuck（42 collet）
|
|
No. of tools
|
Number of tools
|
PCS
|
5
|
5
|
5
|
3+8
|
3+8
|
|
Toolholder
|
Toolholder type
|
N/A
|
T-slot blade row+spindle head
|
T-slot blade row+spindle head
|
T-slot blade row+spindle head
|
T-slot blade row+63turret+s pindle head
|
T-slot blade row+63turret+spi ndle head
|
|
Toolholder center height in radial
|
mm
|
62
|
62
|
62
|
62
|
62
|
|
Tool size
|
mm
|
20*20
|
20*20
|
20*20（25*25）
|
20*20
|
20*20（25*25）
|
|
Boring rod diameter
|
mm
|
25
|
25
|
25
|
25
|
25
|
|
Accuracy
|
X\Z axis repeating postioning accuracy
|
mm
|
0.002
|
0.002
|
0.002
|
0.002
|
0.002
|
|
Others
|
Cooling motor capacity
|
L
|
120
|
120
|
120
|
120
|
120
|
|
hydraulic box capacity
|
L
|
60
|
60
|
60
|
60
|
60
|
|
Required electric power
|
kVA
|
12
|
12
|
14
|
15
|
15
|
|
Height from floor to spindle center
|
mm
|
≈1070
|
≈1070
|
≈1070
|
≈1000
|
≈1000
|
|
Overall size(L*W*H)
|
mm
|
1850*1750*1750
|
1850*1750*1750
|
1850*1750*1750
|
1850*1750*1750
|
1850*1750*1750
|
|
Net weight
|
kg
|
≈2400
|
≈2400
|
≈2400
|
≈2600
|
≈2600
|
|
Standard configuration:Tool box, instruction book, operational manual, cooling system , lighting system, lubrication system, chips cleaner, hydraulic collet(chuck), foot switch.
|
|
Optional configuration: program control blowing function, precision C axis dividing, power spindle head , automatic door, loading and unloading system, industrial robotic, automatic bar feeder, receiving device for bar materials, automatic detection system, automatic cutter radius compensation system, high-pressure cooling system.
|
