Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine

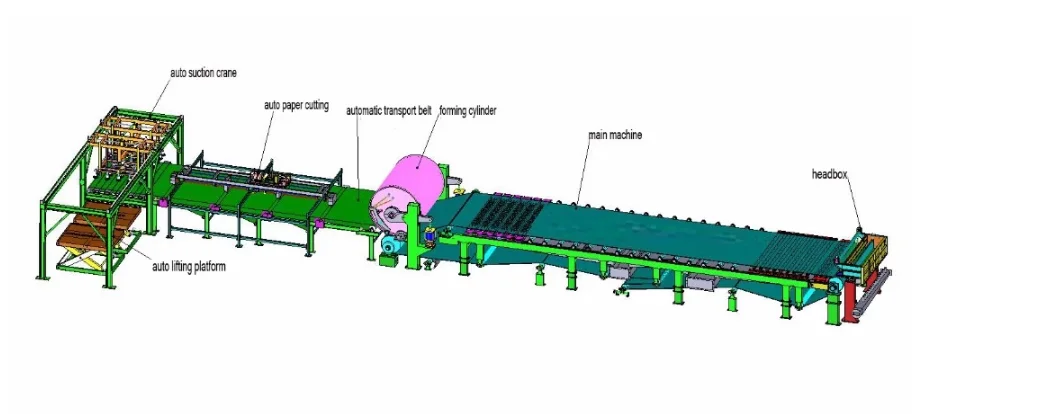

Part 1. Paper Fiber Sheet Making Machine Production Line
Whole line consist of:
1. Waste paper crushing part
2. Mixing part
3. Screening pulp part before making paper

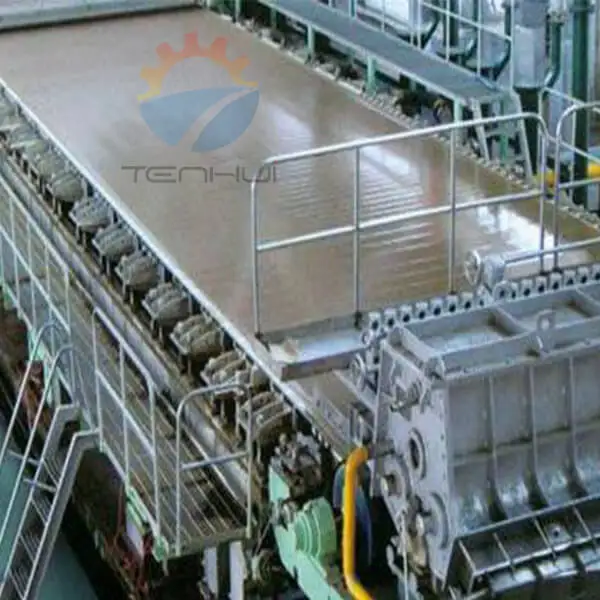

4. Paper fiber sheet making part
5. Dehydrating cold presser part
6. High power controller cabinet
Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine

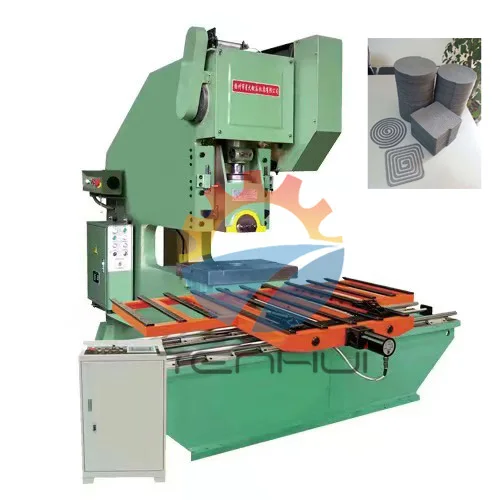

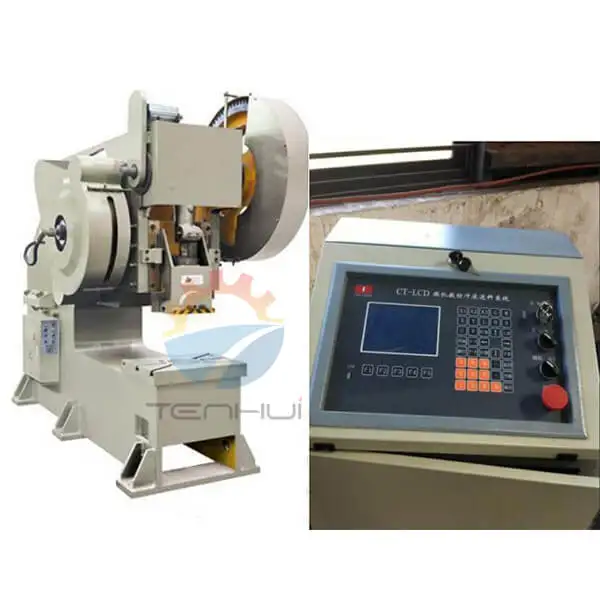

Part 2. Paper Fiber Mosquito Coil Stamping Machine
Usage: to stamping paper fiber sheet into mosquito coils
(including servo control system, feeding part, working table, etc)
Pressure: 25T
Power: 5.5kw
Stamp frequency: 100 times/minute
Size: 1950*980*2300mm
Weight: 2500kg
Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine
Moulding wet mosquito-coated put into dryer house .You will got dryer mosquito-coated.
Size :4000mmx2300mmx25000-40000mm(Width * Height * Length)
automatic mosquito coil count machine mosquito coil counting machine smokeless mosquito coil making machine mosquito coil
Automatic collection of mosquito - repellent incense made by drying oven
Model : THSXJ -3.5
Size :3900mmx300mmx1500mm
Power :3.5KW
Closed Screen Frequency:20-30screen/minute
Operator:3-4 person
Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine
Collect mosquito coil incense and enter the spray machine
Model : THFPJ -300
Size :1600mmx600mmx1500mm
Power :1.8KW
Capacity :9000-12000pcs/h
Operator:1 person
Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine
1) Connect with the tablet machine, and the mosquito coil is automatically put into the spray machine and sprayed with a layer of medicine on the surface of the mosquito coil.
2)Model : THPYJ -1.5
3)Size : 1600mmx600mmx1200mm
4)Power :1.5KW
Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine
Power : 3.5kw
Out cover : carbon steel
Size :2500 mm *650 mm *800mm
Function:Counting,Tidiness , double turn oven
Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine
Part 8. Mosquito Coil Packing Machine
Pack the mosquito repellent incense into the box
Model : FSD -450
Capacity :25-150/minute(in terms of product size and film thickness)
Machine Size :5720 mm *1250 mm *1800mm(Lenght *Widht *Height) (according to product length input conveyor extension)
Power : 3.6KW
Voltage :220VAC 50HZ
Packing Material : POF OPP PVC
Weight :1100KG
Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine
The plastic screen frame and the iron car, one of the machine one class wants 8000 sieve frame, two drying room (one oven wants 25 to 30 iron car), the life boiler one (0.04 MPA).
18mould plastic screen frame size: 900mm *450mm *40mm
Weight : 1KG
28mould size:1050mm*600mm*45mm
Weight : 2KG
Product Show of Automatic smokeless Paper fiber Mosquito Coil Making Machine Plant Fiber Sheet Mosquito Incense Coil Stamping Machine
