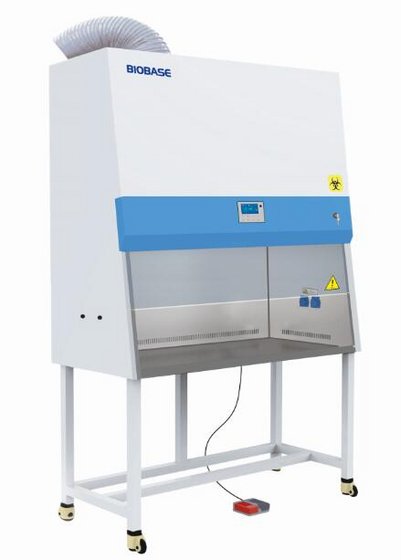

HOT BSC-1100IIB2-XClass II A2 Biological Safety Cabinet with Remote Control

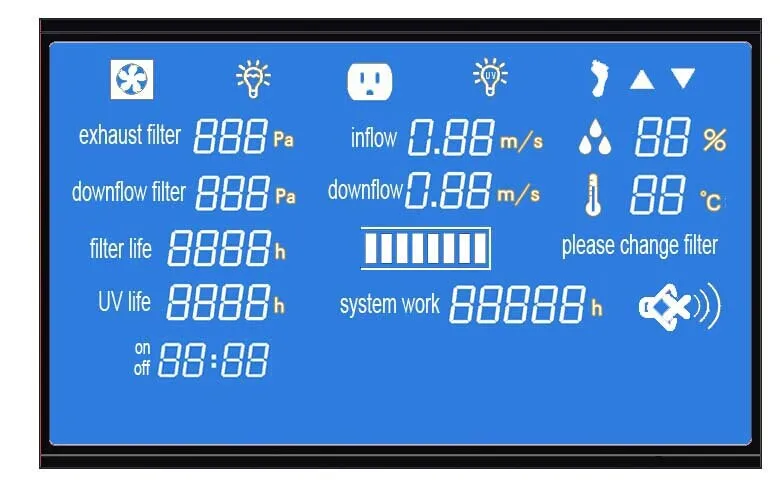

LCD Display
Large digital display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.

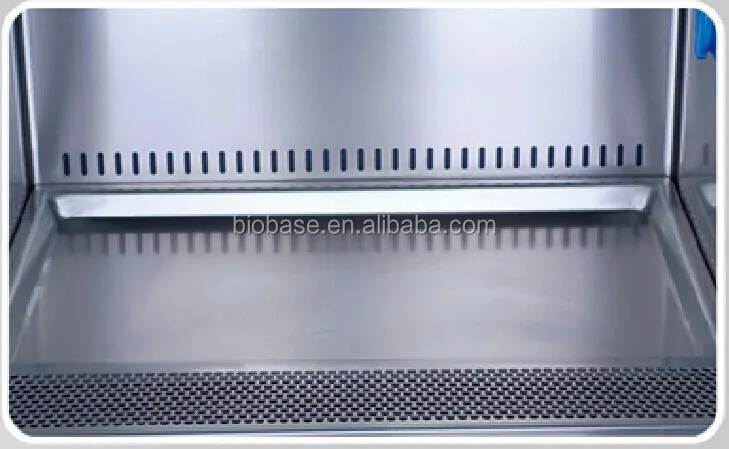

Work Zone
Work zone, made of 304 stainless steel, is surrounded by negative pressure

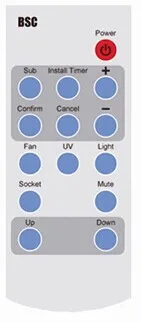

Remote Control
All functions can be realized with it, making the operation much easier and more convenient

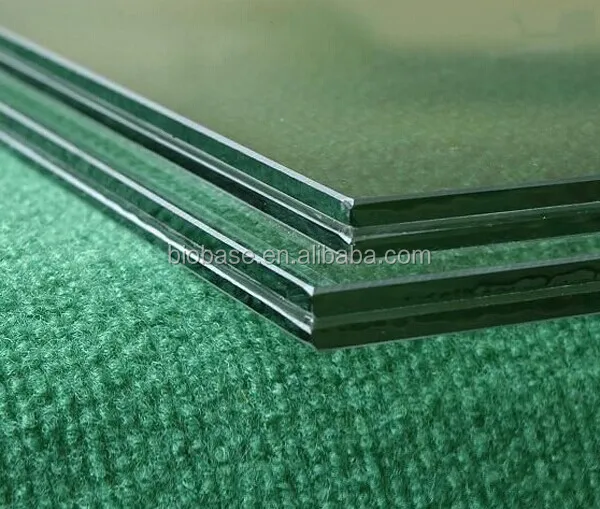

Front Window
Two-layer laminated toughened glass>5mm, anti UV
Waterproof Socket
2 waterproof sockets are located in the side wall, for optimum convenience of using small devices inside the cabinet.
Footmaster caster
Universal caster with brake and leveling feet.
Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm
movement.

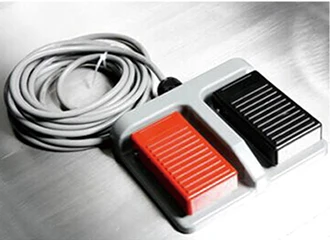

Foot Switch
Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm
movement.
Exhaust Blower
Centrifugal fan, speed adjustable.
HOT BSC-1100IIB2-XClass II A2 Biological Safety Cabinet with Remote Control
Advantage:
1. Motorized Front Window.
2. Time Reserve Function.
3. HEPA Filter life and UV Life indicator.
4. Automatic air speed adjustable with filter block.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).
7. Most accessories are standard. No need to pay more, save your money.
8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.
9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
|
Model
|
BSC-1100IIB2-X
|
BSC-1300IIB2-X
|
BSC-1500IIB2-X
|
BSC-1800IIB2-X
|
|
Internal Size (W*D*H)
|
940*600*660mm
|
1150*600*660mm
|
1350*600*660mm
|
1670*600*660mm
|
|
External Size (W*D*H)
|
1100*750*2250mm
|
1300*750*2250mm
|
1500*760*2250mm
|
1820*750*2250mm
|
|
Tested Opening
|
Safety Height ≤200 mm (8")
|
|
Max Opening
|
420 mm (17")
|
420 mm (17")
|
500mm (20")
|
500mm (20")
|
|
Inflow Velocity
|
0.53±0.025 m/s
|
|
Downflow Velocity
|
0.33±0.025 m/s
|
|
Pre-Filter
|
Washable
|
|
HEPA Filter
|
Two, 99.999% efficient at 0.3 um. Filter life indicator.
|
|
Front Window
|
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV
|
|
Noise
|
NSF49≤61dB / EN12469≤58 dB
|
|

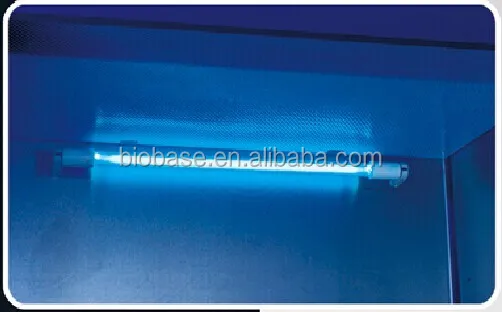

UV Lamp
|
30W× 1
|
18W× 1
|
40W× 1
|
40W× 2
|
|
UV timer, UV life indicator, emission of 253.7 nanometers
for most efficient decontamination.
|
|
Fluorescent Lamp
|
21W× 2
|
21W× 2
|
28W× 2
|
40W× 2
|
|
Illumination
|
≥1000Lux
|
|
Consumption
|
700W
|
850W
|
900W
|
1200W
|
|
Waterproof Sockets
|
Two, total load of two sockets: 500W
|
|
Display
|
LCD display: exhaust filter and downflow filter pressure, filter and
UV lamp working time,inflow and downflow velocity,
filter life, humidity and temperature, system working time etc.
|
|
Control System
|
Microprocessor
|
|
Airflow System
|
0% air re-circulation, 100% air exhaust
|
|
Visual and Audio Alarm
|
Filter replacement, window over height, abnormal air flow velocity.
|
|
Exhaust Duct
|
4 meters PVC duct, Diameter:300mm
|
|
Material
|
Work Zone: 304 stainless steel
|
|
Main Body: Cold-rolled steel with anti-bacteria powder coating.
|
|
Work Surface Height
|
750mm
|
|
Caster
|
Footmaster caster
|
|
Power Supply
|
110/220V±10%, 60/50Hz (110V/60Hz is not applicable to BSC-1800IIB2-X)
|
|
Standard Accessory
|
Fluorescent lamp, UV lamp*2 ,base stand, remote control, foot switch,
exhaust blower, exhaust duct, drain valve,
waterproof sockets*2, pipe strap*2.
|
|
Optional Accessory
|
Water and gas tap
|
|
Gross Weight
|
246kg
|
276kg
|
302kg
|
408kg
|
|
Package
|
Main Body (W*D*H)
|
1220*1000*1840mm
|
1460*1050*1800mm
|
1650*990*1800mm
|
1950*990*1950mm
|
|
Exhaust Blower (W*D*H)
|
970*810*630mm
|
970*810*630mm
|
970*810*630mm
|
970*810*630mm
|
