better round shaft helical piles systems for deep foundations
Product name | Helical piers /Helical piles/Screw piles |
Shaft material | Seamless high tensile pipe, confirms to ASTM A500 GRADE B |
Helices material | ASTM A36 hot rolled plate |
Round Shank Anchors | Hot Dip Galvanized to meet ASTM Specification A153 |
Size | 2 3/8”--8 5/8” round tube shaft |
Length | 3ft/5ft/7ft/10ft etc |
Helix Blade | 8", 10", 12" and 14" in diameter |
Blade thickness | 3/8’’ OR 1/2’’ |
Welding Standard | AWS D1.1 |
Finish | Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard. |
Round Shank Anchors | Hot Dip Galvanized to meet ASTM Specification A153 |
Helices Leading edge | Beveled 45 degrees |
Sample | Available |
OEM service | Available |
Markets | Europe, North America, South America |
Greater Section Modulus Strength to resist Twisting and Deflection. Greater Load Capacities. |
introduction and applicationHelical anchors are used for new construction and to support existing structures. They are designed for applications in expansive soils, high water tables, fill areas, and other areas where unstable soils require a deep foundation. In compression they are used as footers and in tension they may be used to support retaining or foundation walls. Helical piers are round or square, tubular or bar steel shafts with round helix plates welded to them.

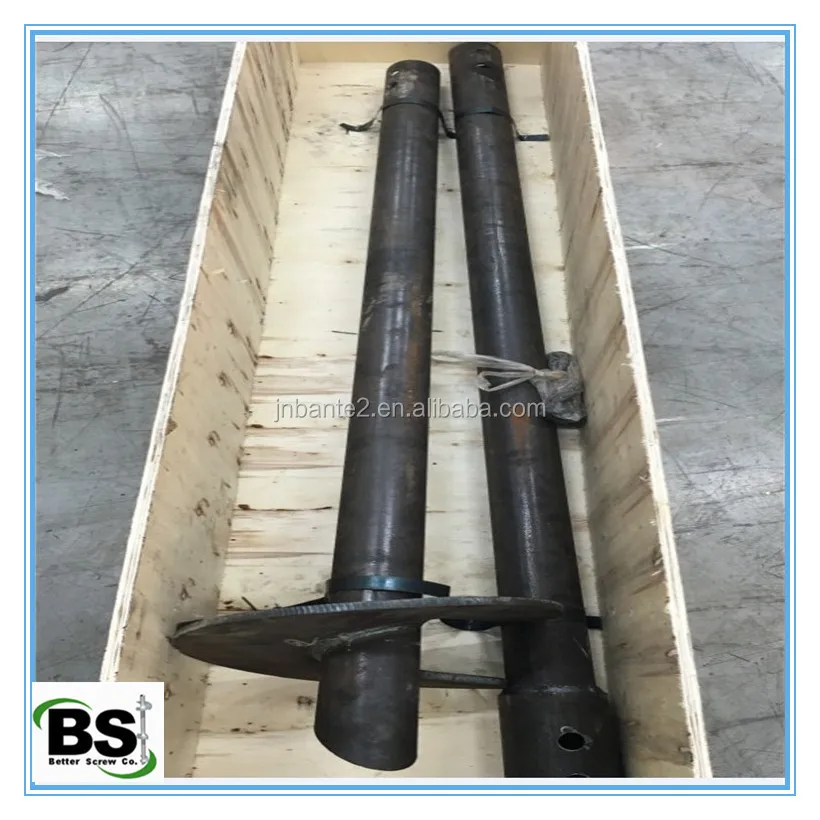

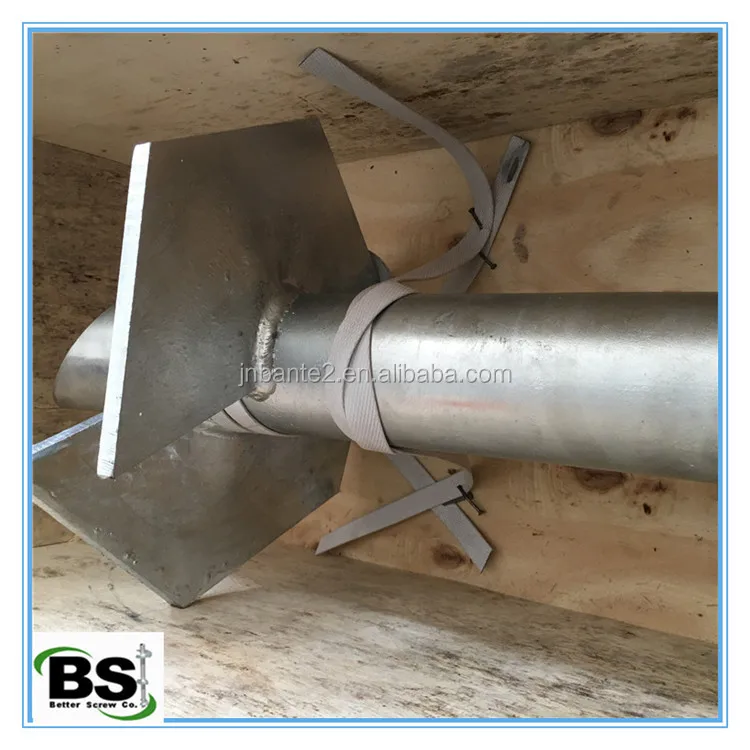

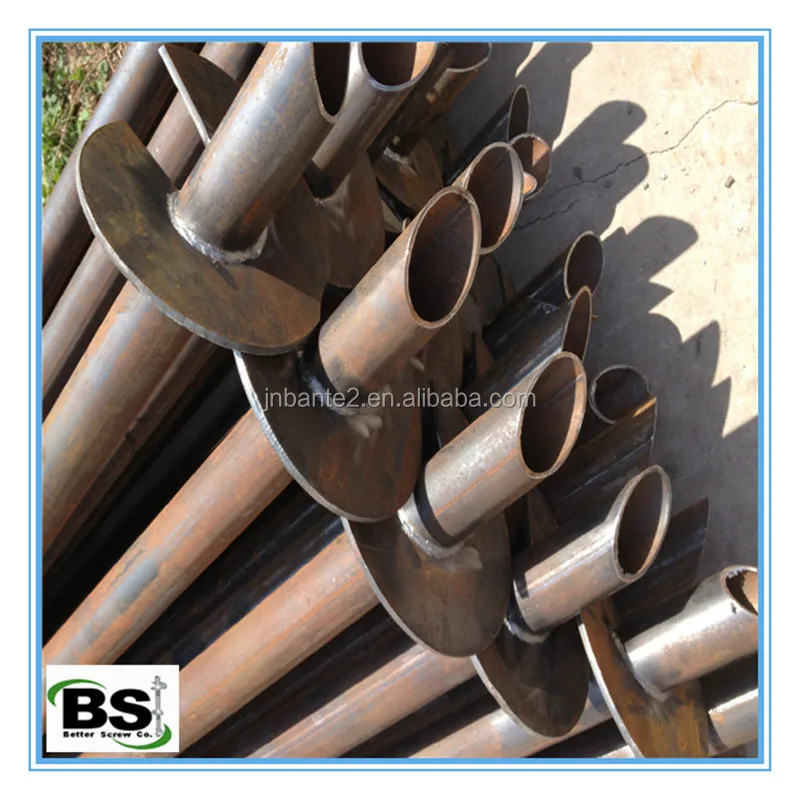

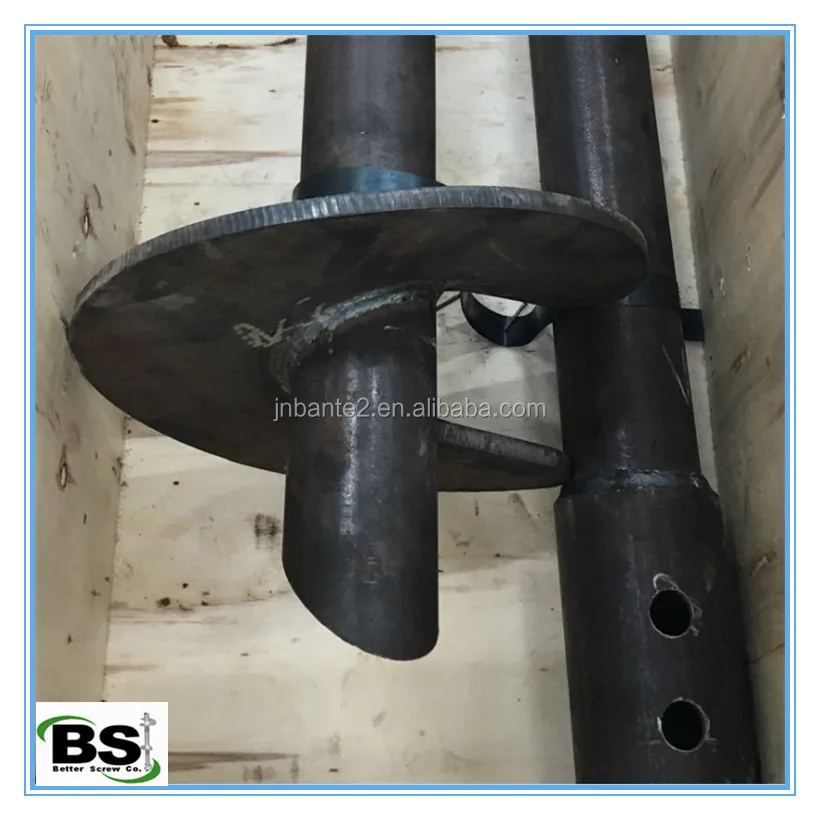

Round Shaft Helical piles
1. Shaft material: Seamless high tensile pipe, conforms to ASTM A500.
2. Helices material: ASTM A36 Hot rolled plate.
3. Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating.
4. Round Shank Anchors are Hot Dip Galvanized to meet ASTM.
5. Leading edge of Helices beveled 45 degrees.
6. Greater Section Modulus Strength to resist Twisting and Deflection.
7. Greater Load Capacities.
Specifications |
Shaft Size(inch) | Wall Thick(inch) | Helix Thick(inch) | Lead Length(ft) | Helix Size(inch) | Extension Length(ft) |
2.875 OD. | 0.262 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
3.00 OD. | 0.238 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
3.50 OD | 0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
4.50 OD | 0.290/0.337 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
5.50 OD | 0.362 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
6.625 OD | 0.562 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
Other sizes are available upon request. |
Advantage:
1. A time-proven, versatile, and technically sound system.
2. Lower cost and faster installation than other methods
3. Installs quickly with small or handheld equipment.
4. Can be installed in limited-access areas or tight access.
5. Site cleanliness and minimize damage to landscape.
6. Soil load bearing capacity is tested during installation.
7. Helical anchors available with single, double and triple helix blades.
Packaging & Shipping
Pakaging and Shipping:
1. Packaging: Usually we shipping the products in 20ft’ container, or according to your demand.
2. Shipping: 15-30 days after confirming your order
Our Services
Our service:
1. Professional staffs reply your inquiry in 24 working hours.
2. Professional factory: We are manufacturer, professional engineers and staffs are specialized in producing all kinds of traffic safety products for more than 10 years.
3. Door-To-Door service is available, you just need to check the products in your warehouse.
4. OEM and ODM service are available here.
5. Competitive pricing, good quality and timely service.
6. Sample: Available
FAQ
FAQ:
1. Are your products the same with the ones in our local market?
Yes, we produce according to FHWA and ATSSA standard, we manufactured millions of square sign posts and U channel posts for North American market during the past ten years and very familiar with every detail of these products. We believe that there is no company in China is more professional than us on this product.
2. What is the minimum order quantity?
The MOQ for square sign post is 11000lbs for each size, for u channel post is 22000lbs for each size. You can mix different sizes of posts to make up a full container. If you want to know the MOQ for other products, please feel free to contact us.
3. How long is your lead time?
Usually our production time for one container goods is about 30-40 days, and the shipping time depends on your place of delivery.
4. What is your payment term?
Usually our payment term is T/T. We can receive the payment 1-3 days after you made payment.
5. Is it complicated to purchase your products if we have never imported?
The whole process is very simple. We can take charge of the whole process including producing in China and shipping the products directly to your company. Our shipping agent in USA/Canada can deal with the customs clearance and inland transportation affairs for you. You just need to stay in your office to check our products.
Company Information

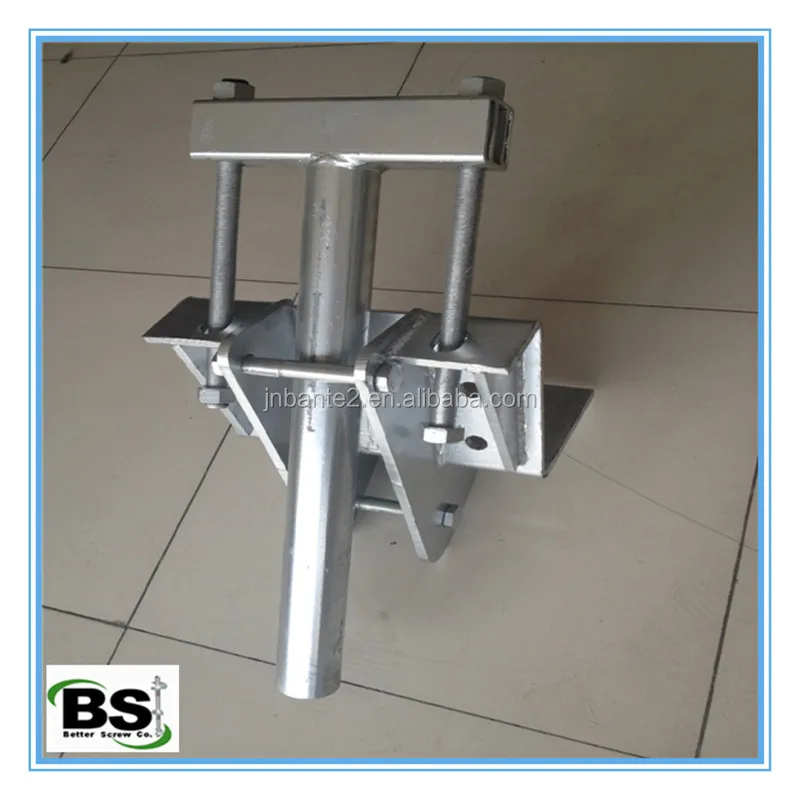

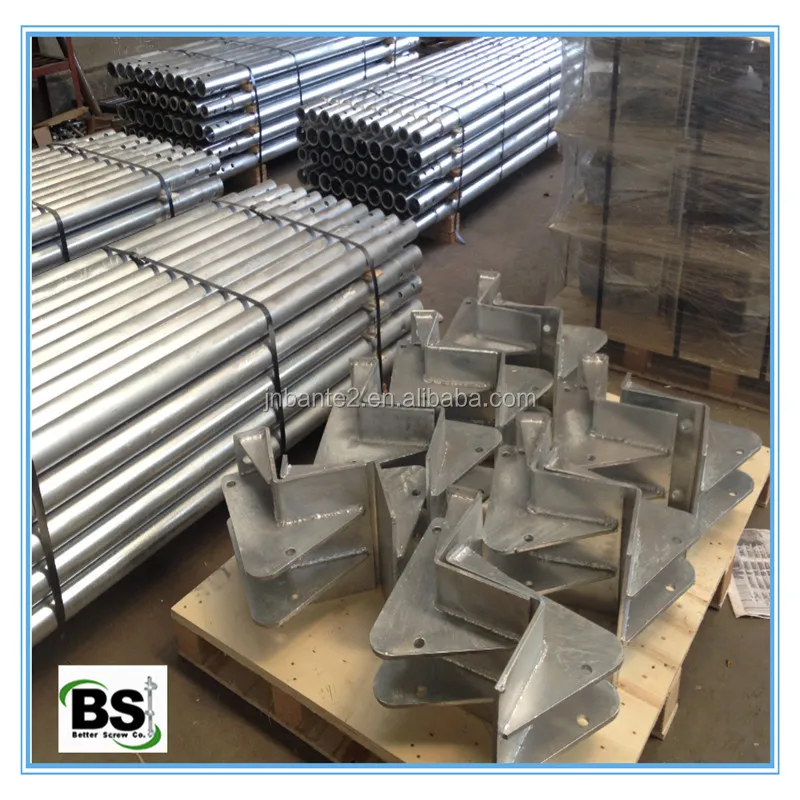

Better Screw Co. is a subsidiary of Better Group Corporation. We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring. We offer a full range ofhelical piles, push piers, helical plates, lead sections, steel extensions, helical brackets, as well as all the accessories needed to put your job together. During the past 10 years, our reliable quality, crazy prices and professional service had been confirmed by customers from the USA, Canada, Australia, Europe, Asia and many other countries from all over the world.
Whether you are faced with a foundation issue or structural challenge, our staffs are ready to assist you as needed from your project. Please feel free to contact us if you want to lower your cost and ensure quality. Our mad pricing will make you become much more competitive and input new energy to your company!
