Description by Manufacturer

Products

BIG CAPACITY FILTER

PORFLUX III
^(Ø152)

PORFLUX III pleated filter cartridge filters are designed for application where high flow rate and precise particles removal rating is required. This filters which is designed with 152mm out diameter have ten times more filtration area comparison with normal filters. Highly recommended for not only generation from 10 to 11 of PDP, LCD, AM-OLED(Active Matrix Organic LightEmitting Diode) but also sea water desalination, pre-filtration of RO system and power generation, etc.

BIG CAPACITY

FEATURES

Suitable for 10~11 generation LCD
Ultra capacity
Very long service time
Fewer change-out
Suitable for high pressure application

APPLICATIONS

Electronic Industry: LCD, PDP, AM-OLED, photo-resist, etchant, developer, stripper
Film & Fiber Industry: Monomer, slurry additive, floppy disc coating, computer tape coating, audio and videotape
General Process Industry: Adhesive, automotive paint, Ink and dye, acid, base, and oxidant
Chemical & Petrochemical Industry: Monomer, polymer, glycol, mono-ethanol- amine and di-ehtanol-amine for gas scrubbing, acid, base and product polishing, rinse and solvent
Pharmaceutical & Biological industry: Ointment, pure water for dialysis, diagnostic, LVPs, SVPs, tissue culture media, extraction chemicals, re-crystallization chemical, serum
Food & Beverage Industry: Corn syrup, edible oil, bottle water, beer, soft drink and distilled spirits, wine, fruit Juice
General Water Process: DI water , process water

SPECIFICATION

Dimension & Structure	Length	20”, 40”, 60” inch / 508, 1,016, 1,524 mm
	ID	75 mm
	OD	Cap : 160 mm, Body : 152 mm
	Effective filtration area	PP : 2.5 ~ 4.2㎡, PES : 4.2 ~ 4.6㎡, PTFE : 4.8 ~ 5.2㎡
Materials of Construction	Filtration media	Polypropylene, PES, PTFE, PP membrane, Fiber glass
	Support layers	Polypropylene
	Core & case	Polypropylene
	O-rings & gaskets	Silicone, EPDM, Viton, TEV
Operating Conditions	Maximum differential pressure	30 psid / 2.1 bar at 60℃ 60 psid / 4.2 bar at 30℃
Operating Conditions	Maximum operating temperature	194℉ / 90℃

PRESSURE DROP
VS. WATER FLOW
RATE

LIQUID PARTICLE
REMOVAL RATINGS

Polypropylene micro fiber	Absolute : 0.6, 0.8, 1, 5, 10, 20 Nominal : 0.2, 0.45, 1, 3, 5, 10, 30	PTFE Membrane	0.05, 0.1, 0.2, 0.45, 0.7,1, 3, 5, 10
Polypropylene micro fiber		PP Membrane	0.1, 0.2
PES Membrane	0.04, 0.1, 0.2, 0.45, 0.6, 0.8, 1.2	Fiber glass	0.45, 1, 5, 10

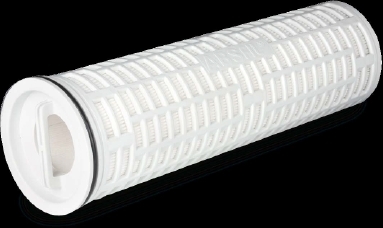

Product Image
