Product Attributes

- Brand Name Hongyuan
- Model Number HY-FB-900
- Place of Origin China
- Related Keywords bus paint spray booth, truck paint spray booth, large paint spray booth

Description by Manufacturer

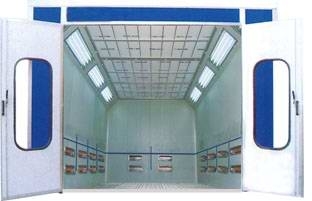

Large spray paint booth

Outside Dimension(mm)	910063004100(LWH)
Inside Dimension(mm)	900045003500(LWH)
Front Door(mm)	33003400(WH)
Service Door(mm)	7002000(WH)
Total Power	28kw
Cabin System	Wall panel: 50mm EPS sandwich panel, steel sheet thickness: 0.426mm Ceiling panel: 0.8mm galvanized steel sheet Basement: 350mm depth, two rows grids and three rows of diamond plate. Ramps: Four pieces 2000*800mm ramps Windows: 5mm safety tempered glass
Circulation system	2sets of centrifugal fan to inlet air, 7.5kw/set, air volume 40000m³/h in total. 1 set of centrifugal fan to exhaust air, 11kw/set, air volume 3939000m³/h Duct: 4 meters straight duct, 2pcs of elbow.
Filter system	Pre-filter Ceiling filter Floor filter: Green fiber glass filter/G3 grade Exhausted fan filter: Fiber glass filter and active carbon
Heating System	Heat exchanger: SUS304 material, argon arc welding Heating burner: Riello RS5S diesel burner Max heat productivity: 260000Kcal/h Spray to baking switch: 20N electrical damper Chimney duct: 6meters stainless ducting and one chimney cap Max heating temperature: 80ºC Fuel consumption:10-12L/vehicle
Light System	Ceiling lights 12Units, each 418W LED lamps, Total 864W Side lights 10Units, each 218W LED lamps, Total 360W
Control System	1set of control box, including Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm.

Price

Price US$ \ 5000 ~ 13000 / Set

Packaging & Shipping

- Delivery Lead Time15days upon deposit
- Minimum Order 1 Set
- Supply Ability100sets per month
- Delivery PortQingdao
