CABO MKMJ/MAM Customized Pulse Capacitor (10-50KuF,3K-100KVdc,IP=180kA Max)

Add to Basket Share to :

Price

US$ 100 ~ 1000

Min Order Quantity2 Piece
Supply Ability10000
PortShunde
Delivery Lead Time30
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name CABO Electronics (Foshan) Ltd.
Membership Free member
Registration Date2019.05.22
Country/RegionChina
CityFoshan
Contact Jason Chow(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name CABO
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color White
- Application General Purpose
- Capacitance 10uF
- Operating Temperature 4070
- Package Type Surface Mount
- Rated Voltage 3kv
- Type Polypropylene Film Capacitor
- Related Keywords pulse capacitors, film capacitor, power capacitor

Description by Manufacturer

Product Description

>IEC 61071

>Dry/Oil type available

>High over-voltage

>Low ESL

>Low ESR

>Heavy peak current

>Metal/Insulated case

>Controlled self-healing technology

Capacitors design and manufacture energy storage capacitors that are not limited to a catalogue range.

Current, voltage, size, mass and terminations are matched to the customer’s requirement and application, a few of which are listed below.

Shot life and high reliability is achieved using ultra low defect density, high isotactic, Metallized polypropylene dielectric film incorporating an extended working temperature range and controlled self-healing capability. Elements are wound on the latest precision edge controlled automatic winding machines. High conductivity copper is used for low resistance internal connections. Capacitors are finished in powder coated corrosion free metal or insulated cases and filled with an environmentally safe oil or dry leak free resin.

Electrical Parameter

Capacitance Range	10μF~50,000μF
Operating Temperature	-40⁰C~+70⁰C
Capacitance Tolerance	±5%(J);±10% (K)
Rated Voltage	3,000~100,000V.DC
Test Voltage between Terminal	1.1~1.5Un 2s
Test Voltage between Terminal/Case	2Un,1min
Insulation Resistance	R*C≥7500MΩ·μF
Max.Altitude	<2000m
Flame Resistance		UL 94V-0
Energy		100-100,000J
Lifetime Expectancy		≥50,000Hours (Un≤70℃) Or 1000~10⁹shots

Typical Application

Used in Military, Medical and Industrial applications.

Oceanography (Subsea Surveys, Sparkers, Boomers)

Power Electronics (Welding, Forming, Magnetizers, Demagnetizers, PFN’s)

Research (Particle Accelerators ‘LHC, ISIS’, Lasers)

Testing (Lightning Simulation, High Voltage Capacitor Banks)

Defence (Range Finders, Railguns, Radar, Missile Systems, EMP)

Food Industry (UV Sterilisation)

Common Design

Cap (μF)	Voltage (KV)	Energy (KJ)	Peak current (KA)	RMS current (A)	Inductance (nH)	Voltage reverse (%)	Design life	Energy density (J/cm3)	Size(mm)
Cap (μF)	Voltage (KV)	Energy (KJ)	Peak current (KA)	RMS current (A)	Inductance (nH)	Voltage reverse (%)	Design life	Energy density (J/cm3)	L	W	H
10,000	3	45	75	180	120	10	≥20,000	1.2	340	260	420
10,000	3	45	75	180	120	10	≥2,000	2.0	340	165	400
4,000	5	50	60	140	120	10	≥20,000	1.2	340	260	470
4,000	5	50	60	140	120	10	≥2,000	2.0	340	165	445
500	10	45	35	90	150	10	≥3,000	1.8	340	170	430
500	10	45	35	90	150	10	≥20,000	1.2	340	260	420
500	10	25	100	120	40	10	≥40,000	0.37	280	356	674
500	10	25	50	120	155	20	≥50,000	0.6	340	220	550
4,000	10	200	250	260	140	10	≥2,000	2.0	320	320	975
400	15	45	35	90	150	10	≥20,000	1.2	340	260	420
400	15	45	35	90	150	10	≥2,000	1.8	340	170	430
30	20	20	50	120	45	80	≥100,000	0.43	613	356	213
50	20	10	50	100	60	10	≥200,000	0.24	625	356	185
200	20	40	25	60	160	10	≥4,000	1.6	320	320	245
200	20	40	40	110	160	20	≥50,000	0.6	390	220	775
400	20	80	50	110	160	10	≥4,000	1.6	320	320	485
400	20	80	50	110	160	10	≥20,000	1.2	340	260	750
400	20	80	80	175	150	20	≥50,000	0.6	570	260	900
300	25	94	45	100	180	10	≥4,000	1.6	390	170	880
300	25	100	45	100	180	10	≥20,000	1.2	390	260	820
300	25	94	80	180	150	20	≥50,000	0.6	570	220	1050
12.5	40	10	180	100	40	60	≥25,000	0.15	686	356	280
32	40	25	50	100	75	10	≥40,000	0.37	686	356	280
6	60	10.8	250	100	40	60	≥10,000	0.16	686	356	280
8.4	60	15	200	110	40	40	≥10,000	0.21	711	356	280
1.2	100	6.5	150	100	40	30	≥35,000	0.1	635	356	280
3.0	100	15	260	110	40	20	≥10,000	0.24	635	356	280

*The voltage lower than 45KV were tested in lab air at sea level, Over 45KV probably were tested under oil.

HV dangers, please inquiry us for correct application.

Applications and characteristics are for guidance only. Please contact us to discuss our full design capability.

For more similar products:

Packing & Delivery

CABO under control of IS0 9001 and ISO 14001 quality and environment standard.

All of our packing materials are environmentally friendly.

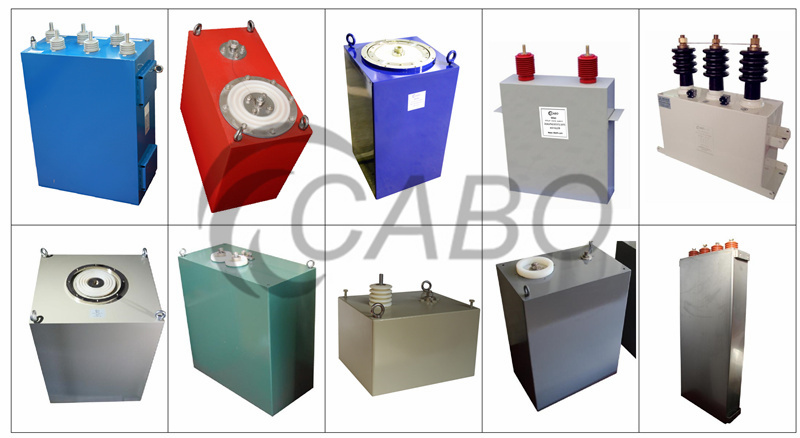

Typical design:

Price

Price US$ \ 100 ~ 1000 / Piece

Packaging & Shipping

- Delivery Lead Time30
- Minimum Order 2 Piece
- Supply Ability10000
- Total quantity in Stock51 – 100
- Delivery PortShunde
- HS Code85322590
- Shipping Career

Product Image

CABO MKMJ/MAM Customized Pulse Capacitor (10-50KuF,3K-100KVdc,IP=180kA Max)
